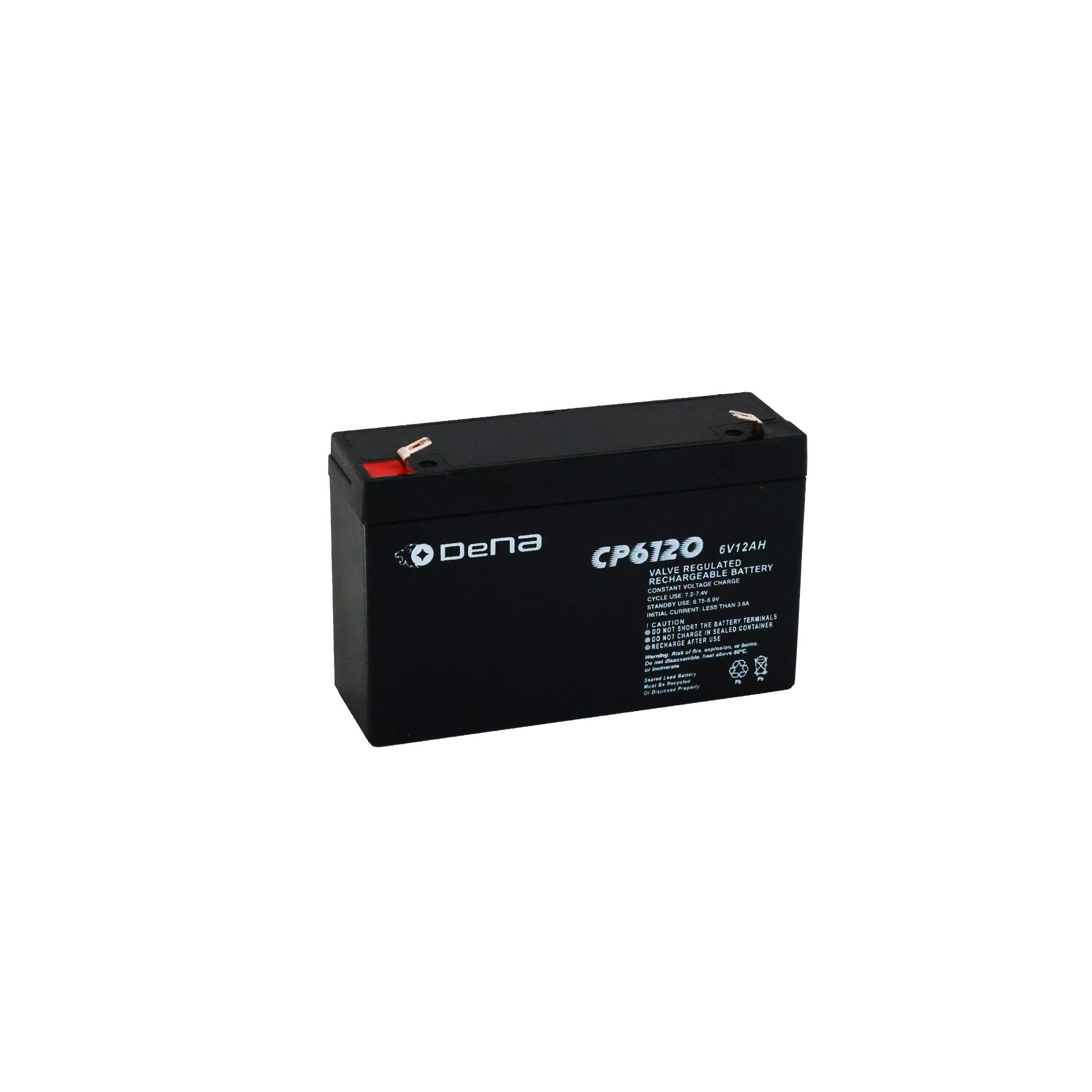

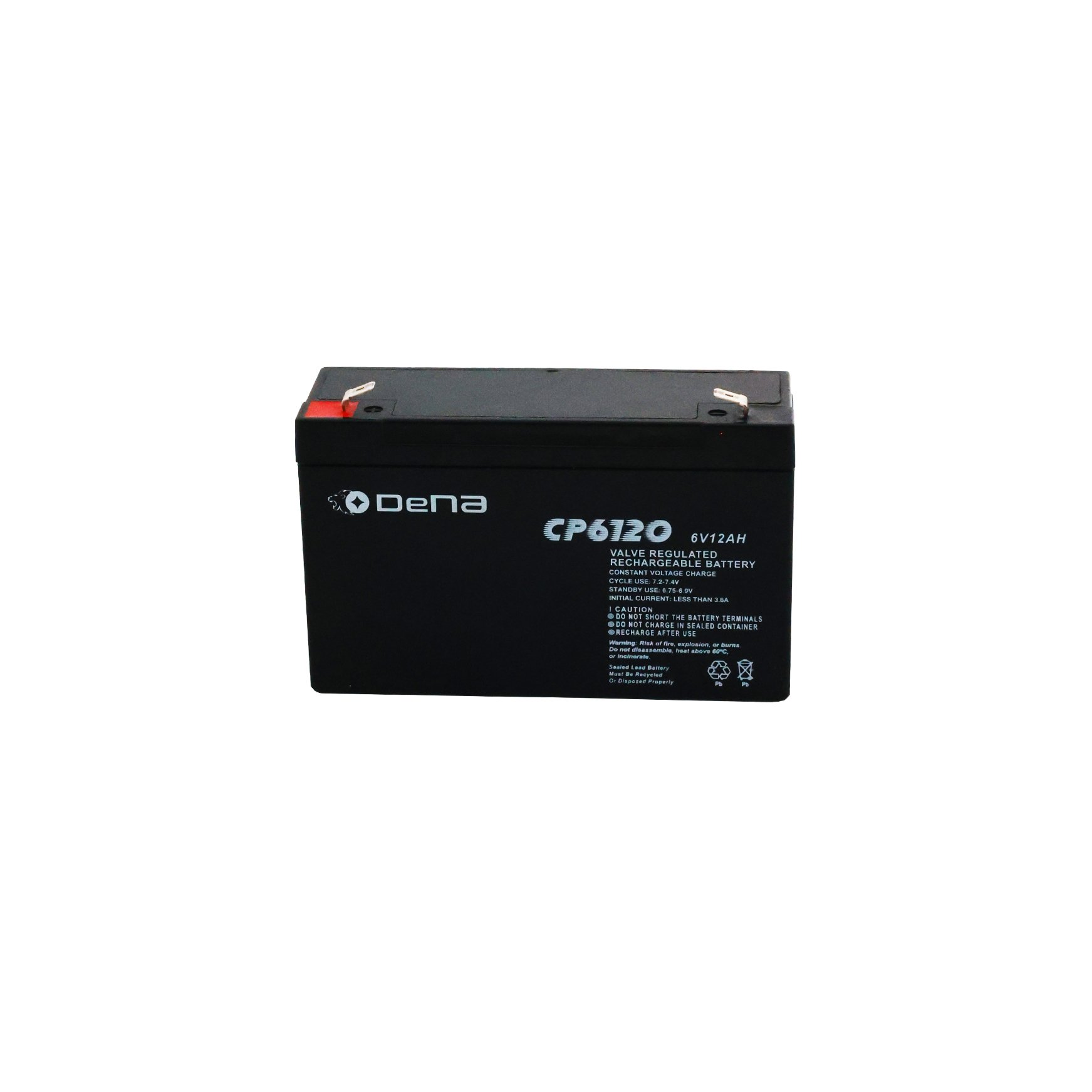

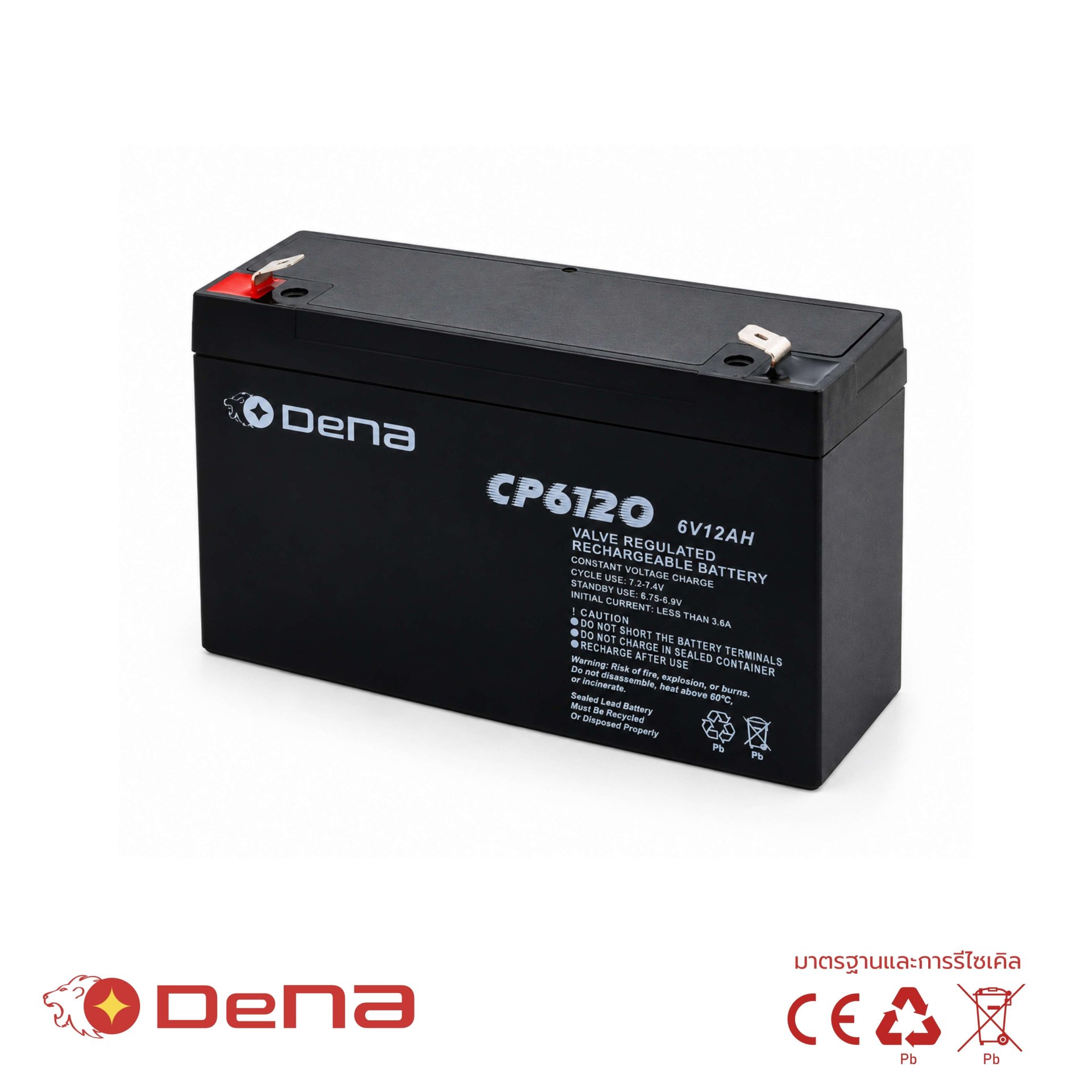

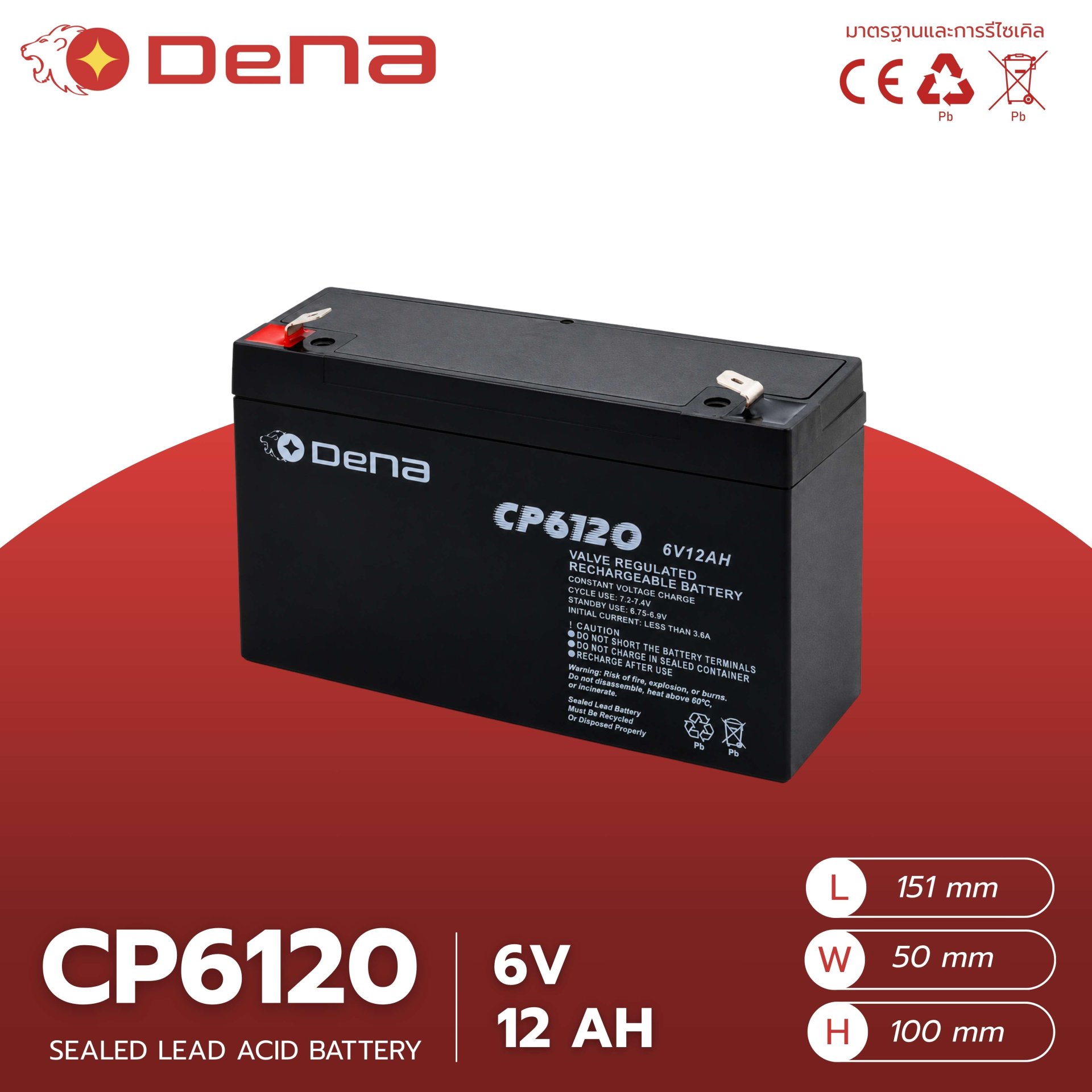

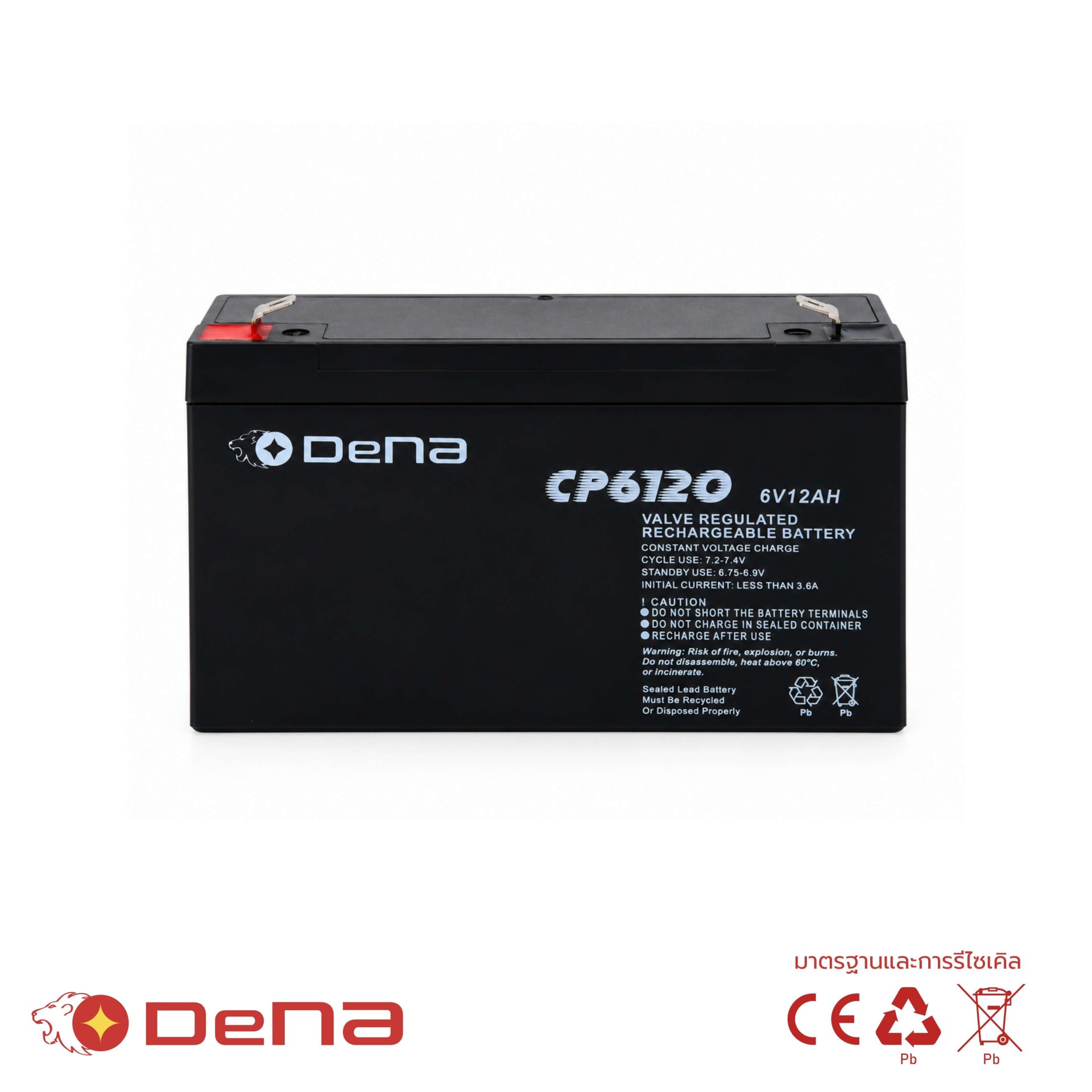

DeNA CP6120
Attribute:
Voltage (V) : 6 Capacity 20hr (Ah): 12 Dimensions : 151 x 50 x 94 mm (L x W x H)
Categories : Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 5 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (0.6A, 5.25V) 10 hour rate (1.15A, 5.25V) 5 hour rate (2.02A, 5.25V) 1 hour rate (7.8A, 4.8V) | 12Ah 11.5Ah 10.1Ah 7.8Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | ≤10mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 180A(5s) |
| Short Circuit Current | 600A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 7.2-7.4V 4.8A -15mV/°C 6.75-6.9V -10mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 151 / 6.94 50 / 1.97 94 / 3.70 100 / 3.94 1.85 / 4.08 |
