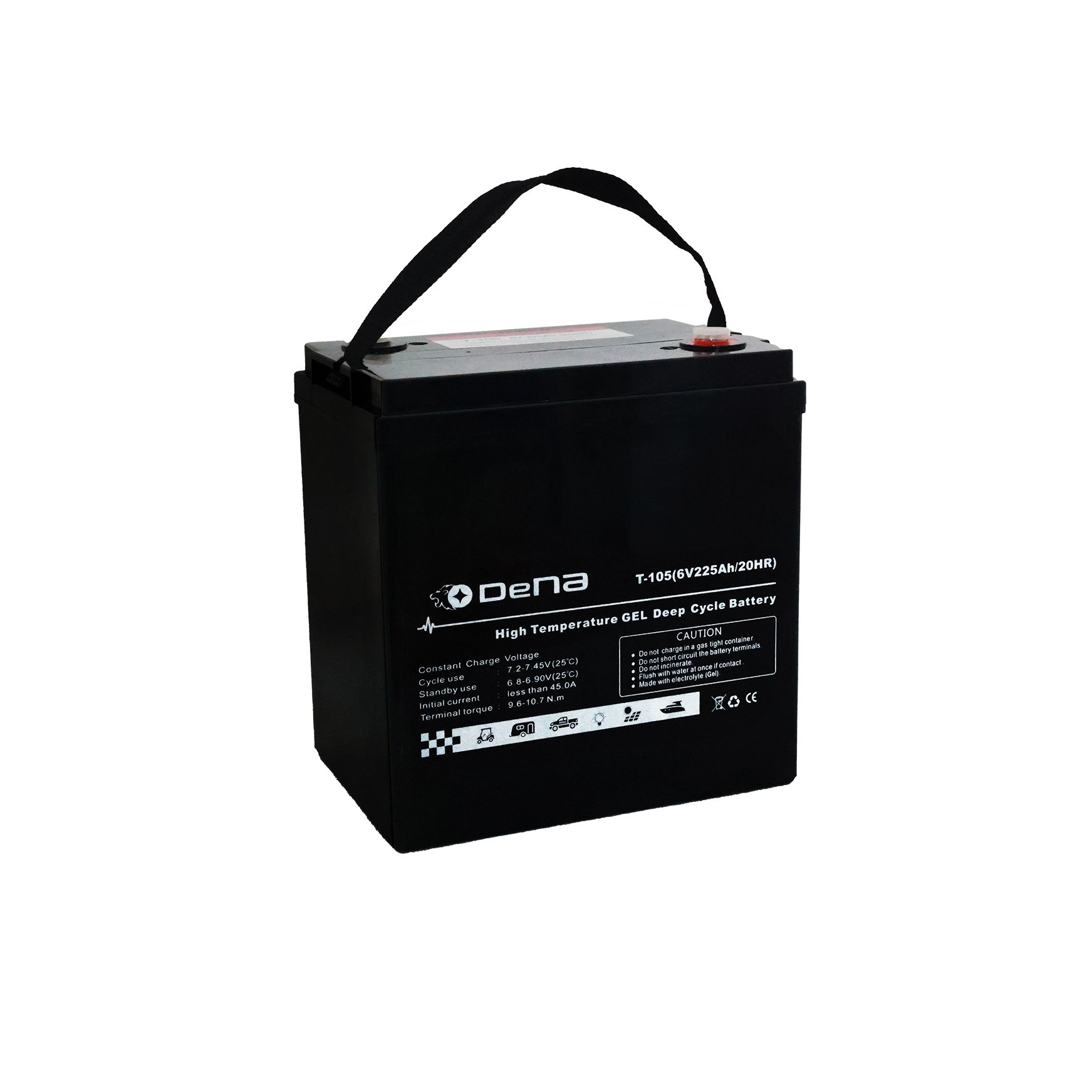

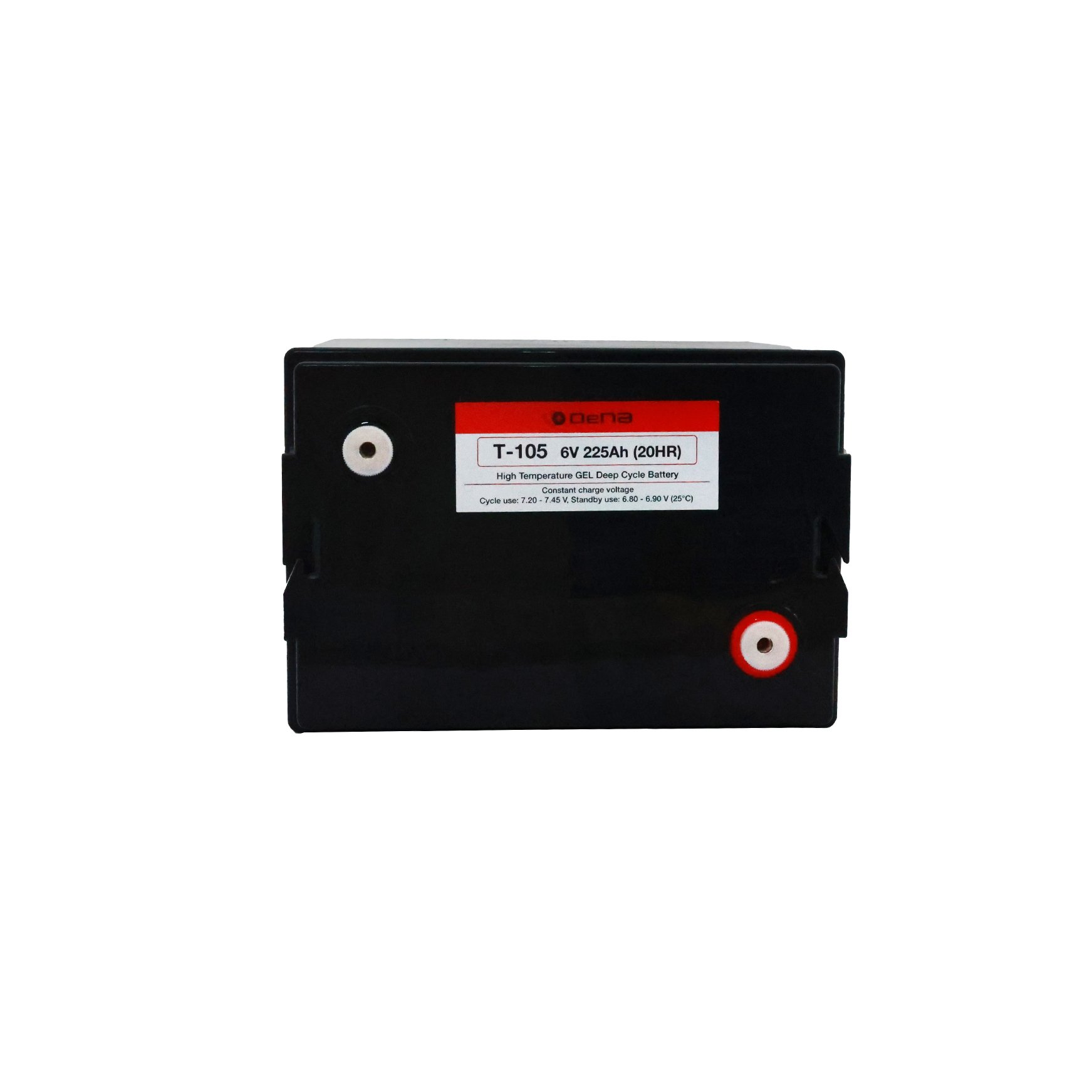

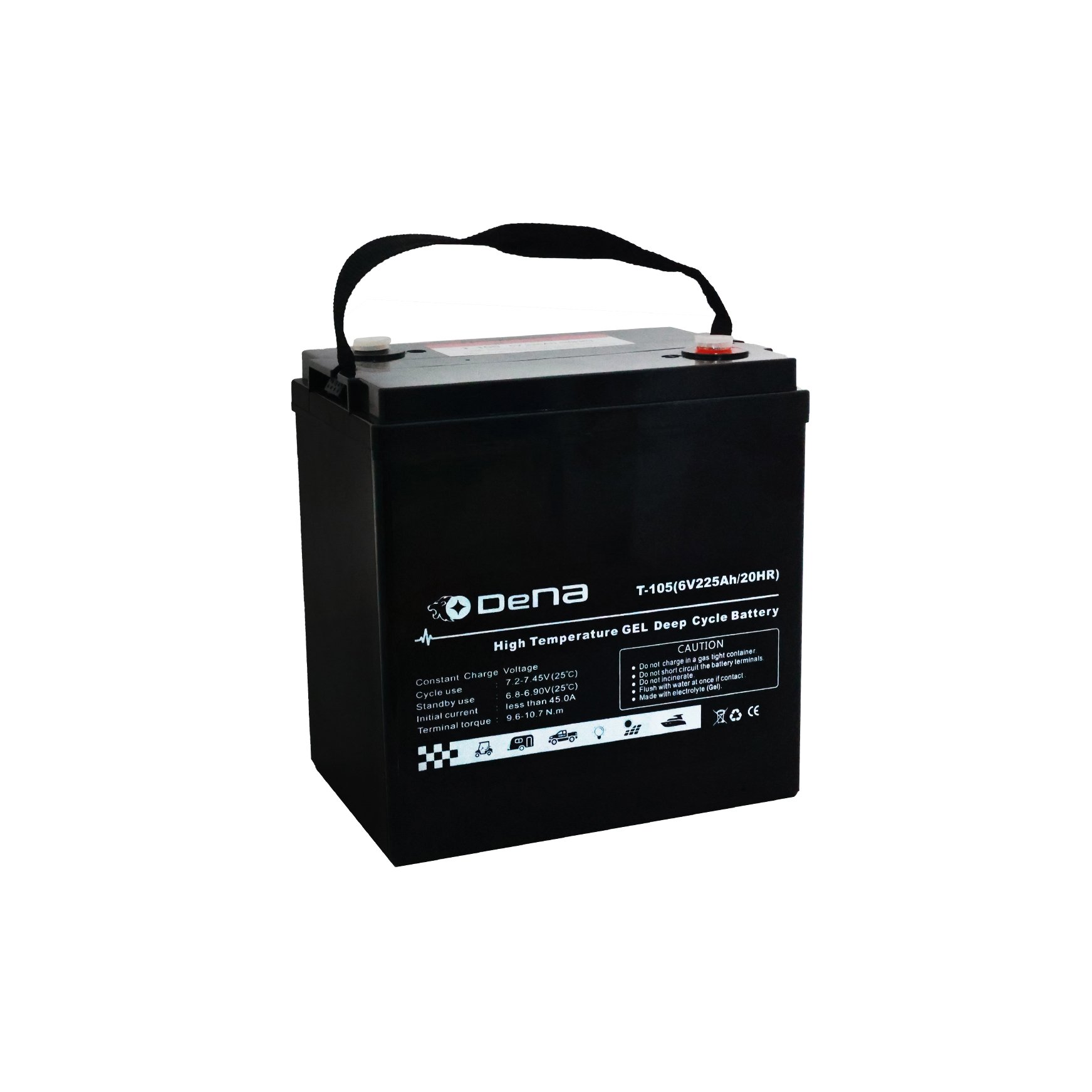

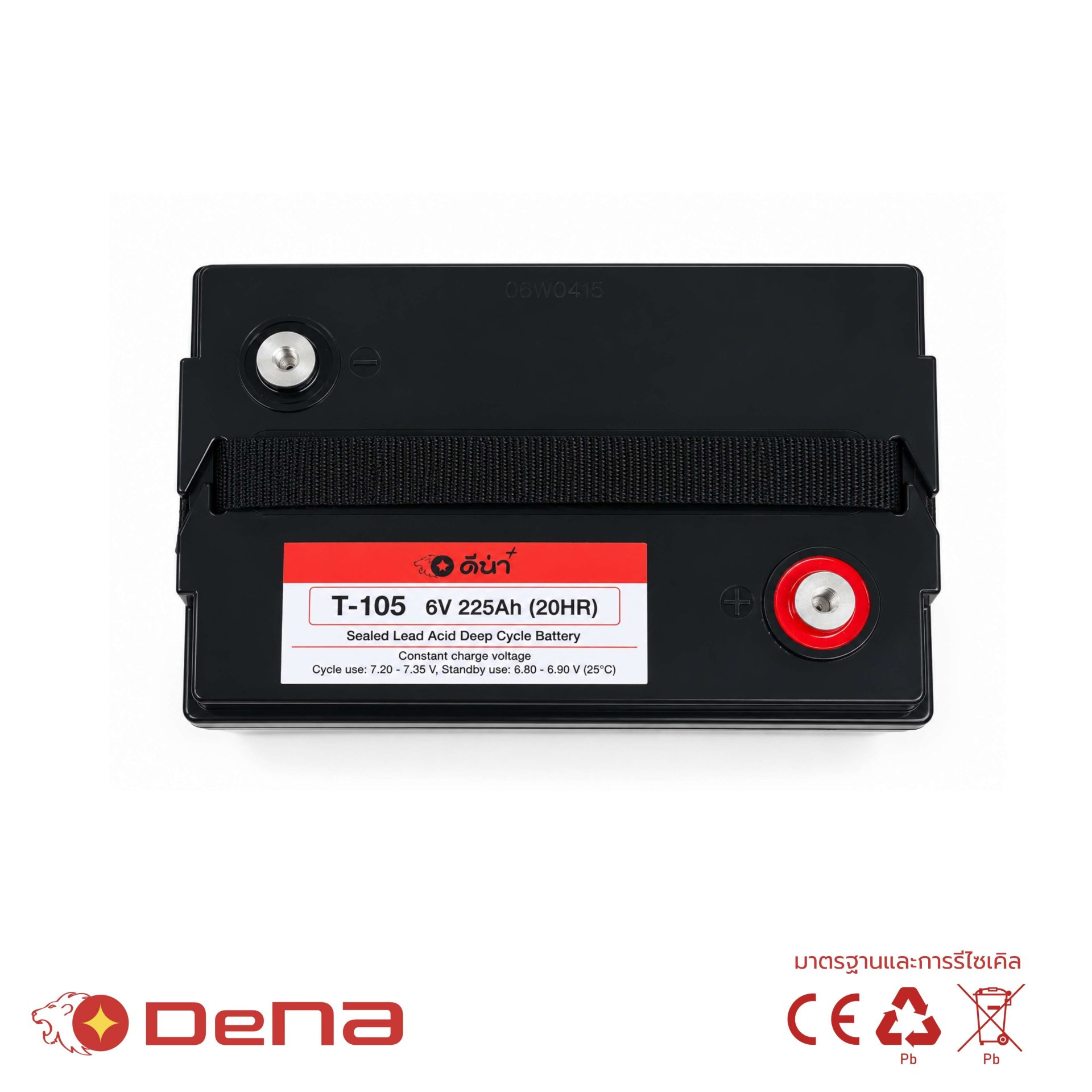

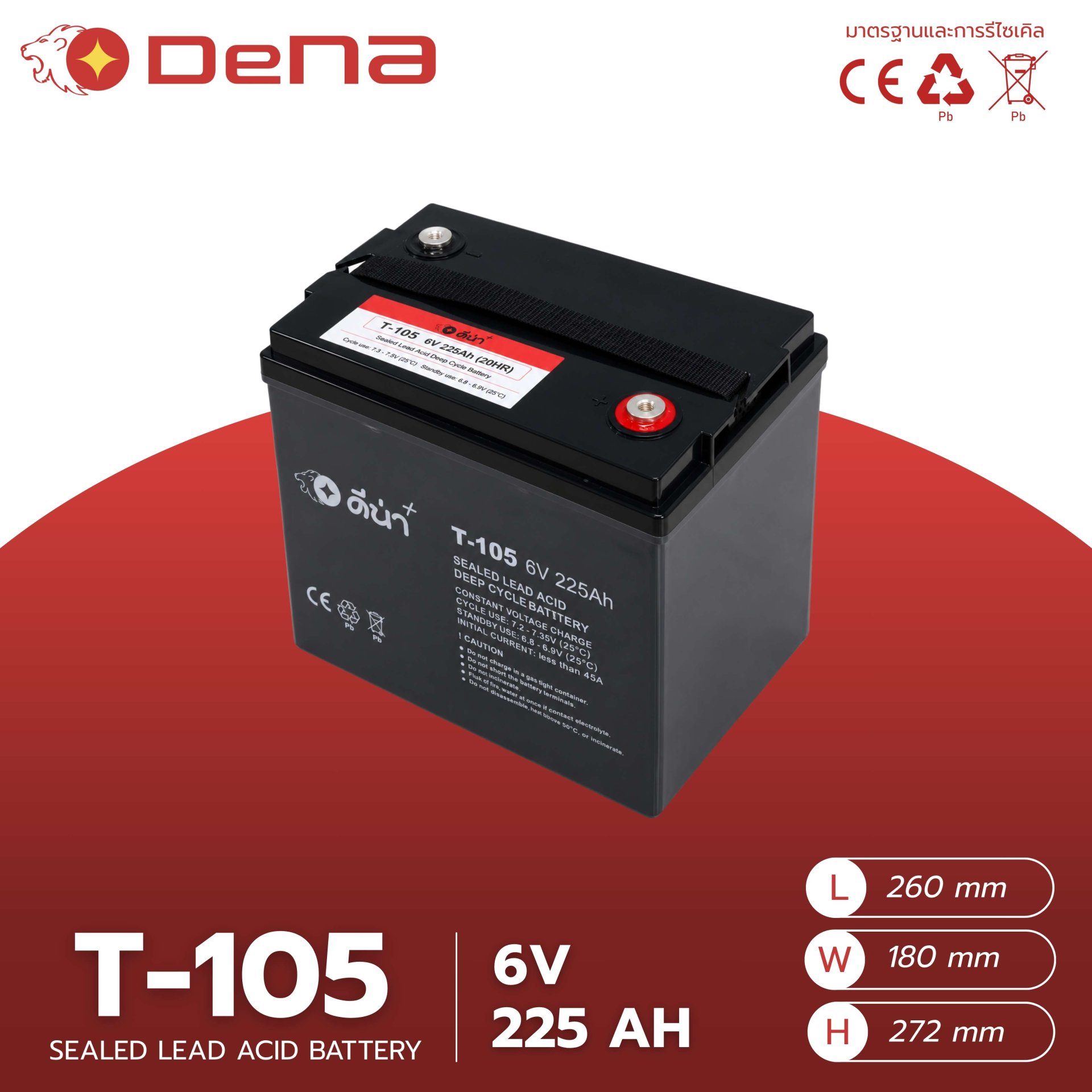

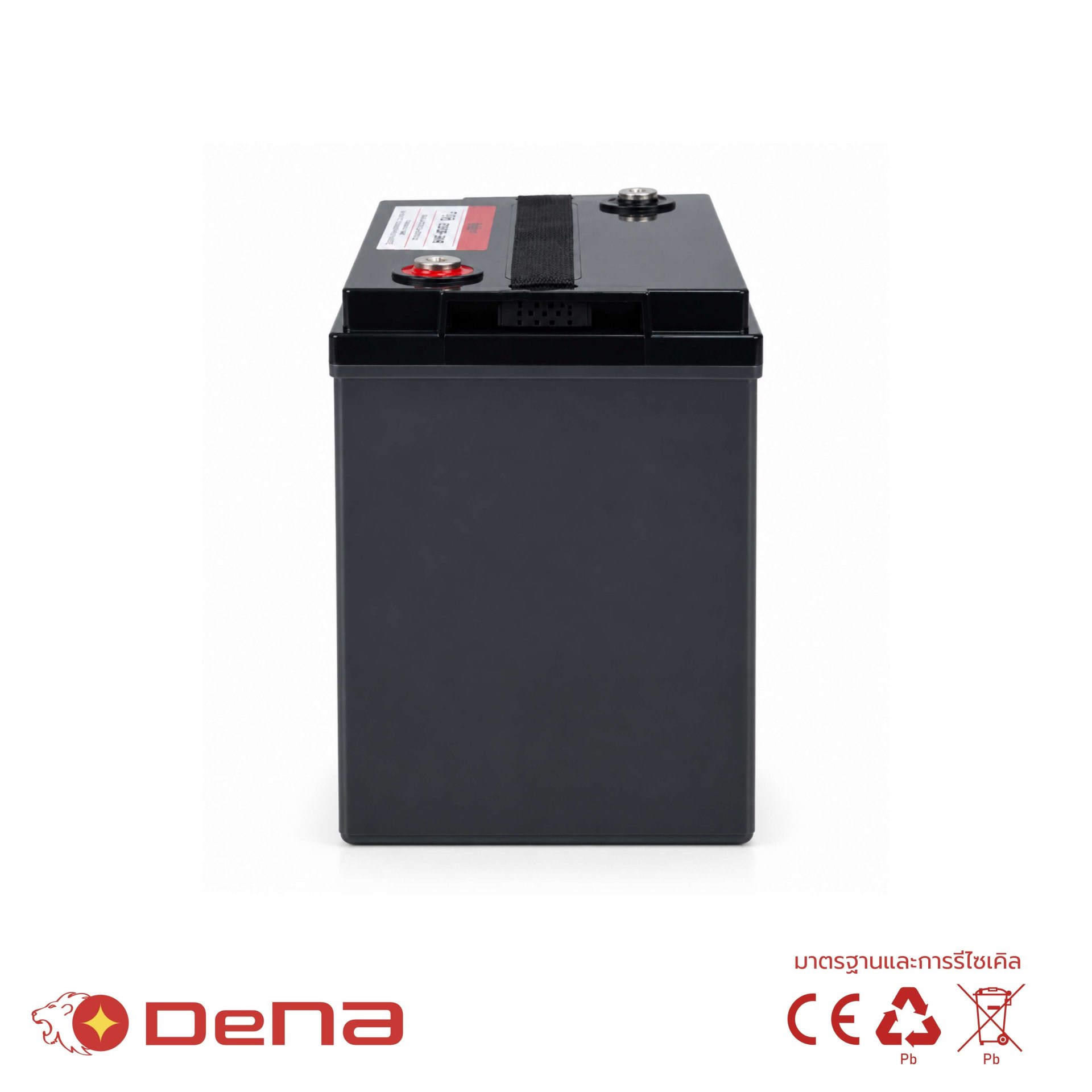

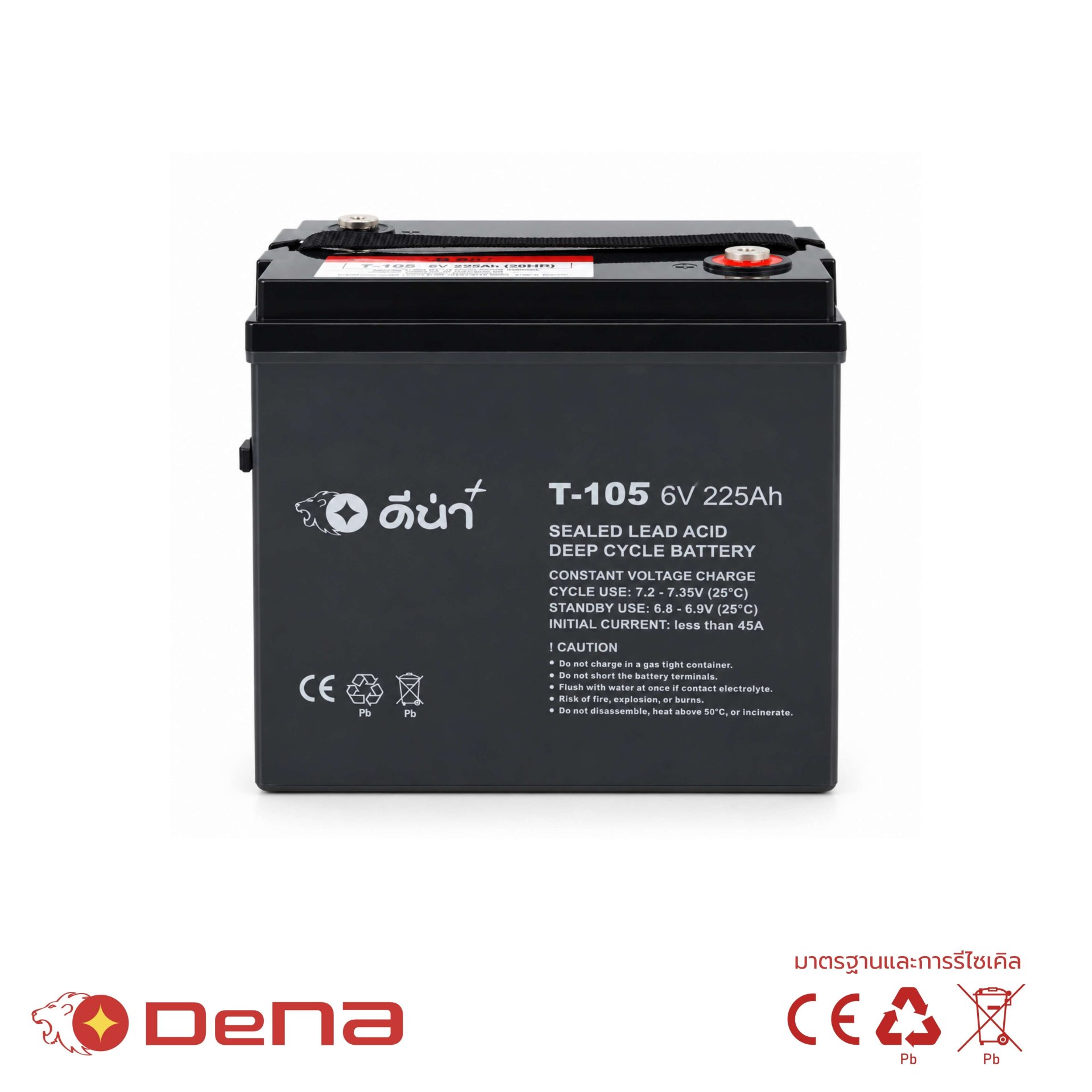

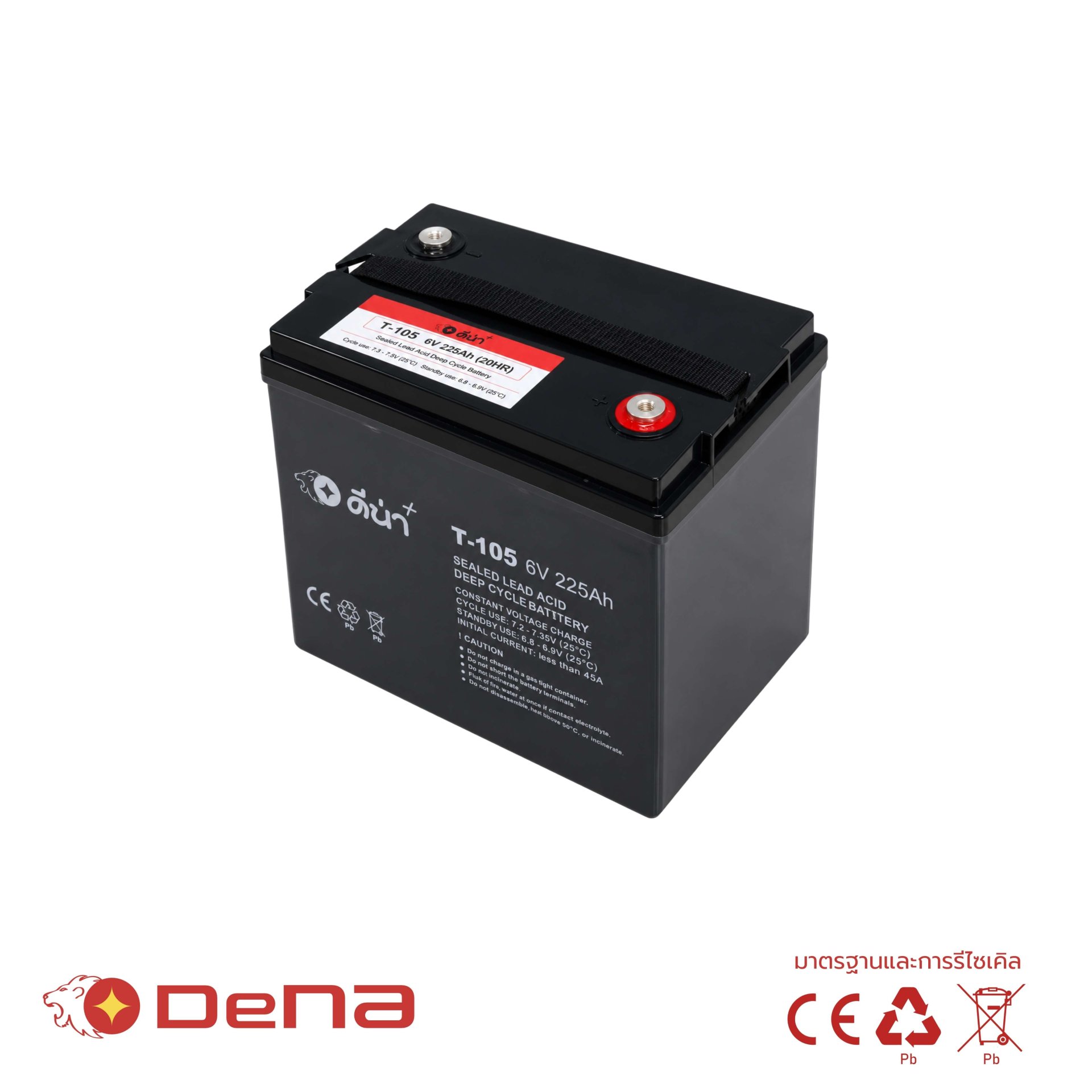

DeNA T-105
Attribute:
Voltage (V) : 6 Capacity (Ah): 225 Dimensions : 260 x 180 x 265 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Recommended Charge Current With Temperature Compensation Without Temperature Compensation | Cyclic Application 50 A Max. 19 - 25 A |
| Charge Voltage (12 Volts) | 7.2 - 7.45 V |
| Bulk Charge | 7.35 V |
| Absorption Charge | 7.35 V |
| Float Charge | 6.85 V |
| Temperature Compensate Factor | -4 mV/°C/Cell |
| Operating Temperature Discharge Charge Storage | -15°C~45°C -15°C~45°C -15°C~45°C |
| Dimensions and Weight Length(mm) Width(mm) Height(mm) Total Height(mm) Approx. Weight(Kg / Ibs) | 260 180 265 272 34.7 |
