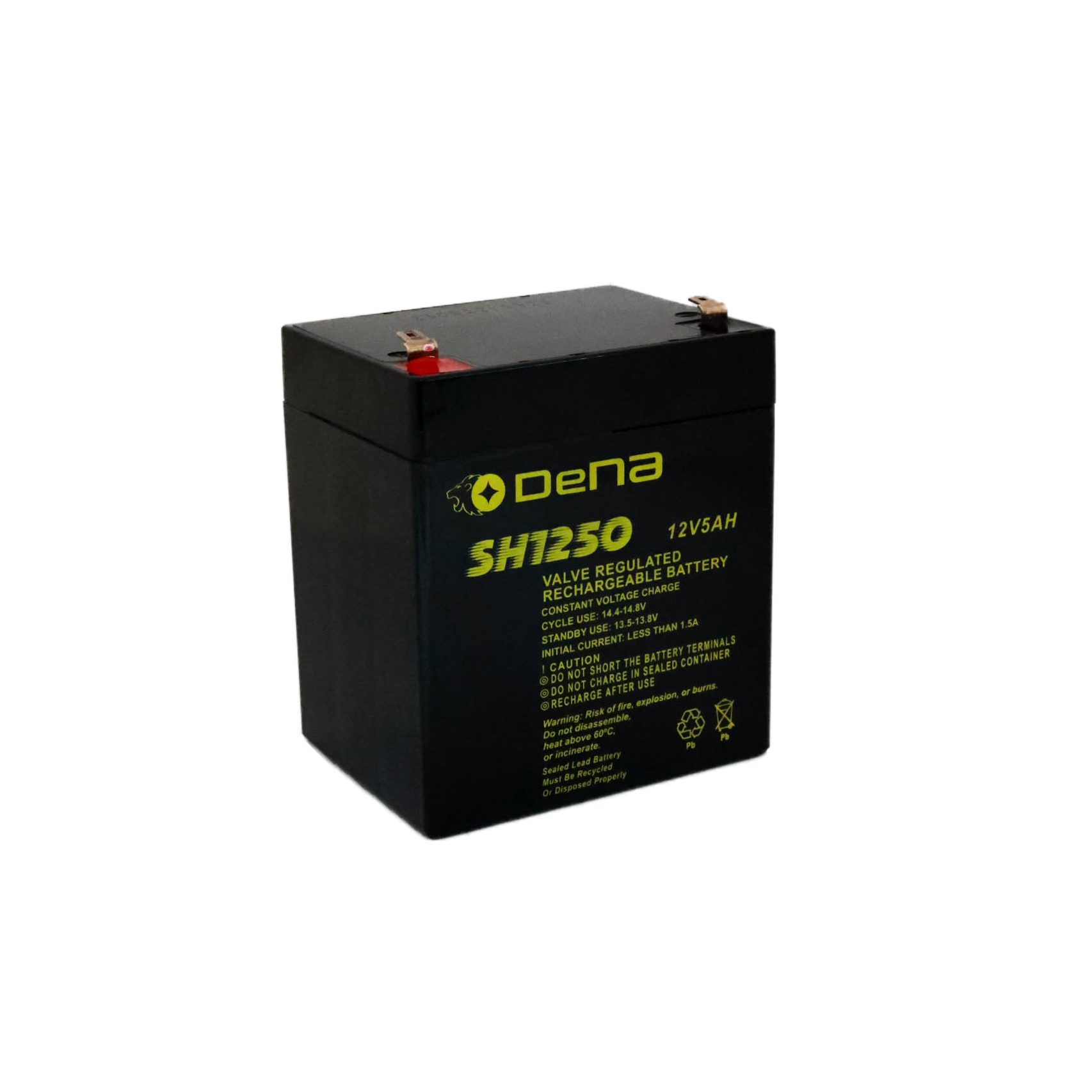

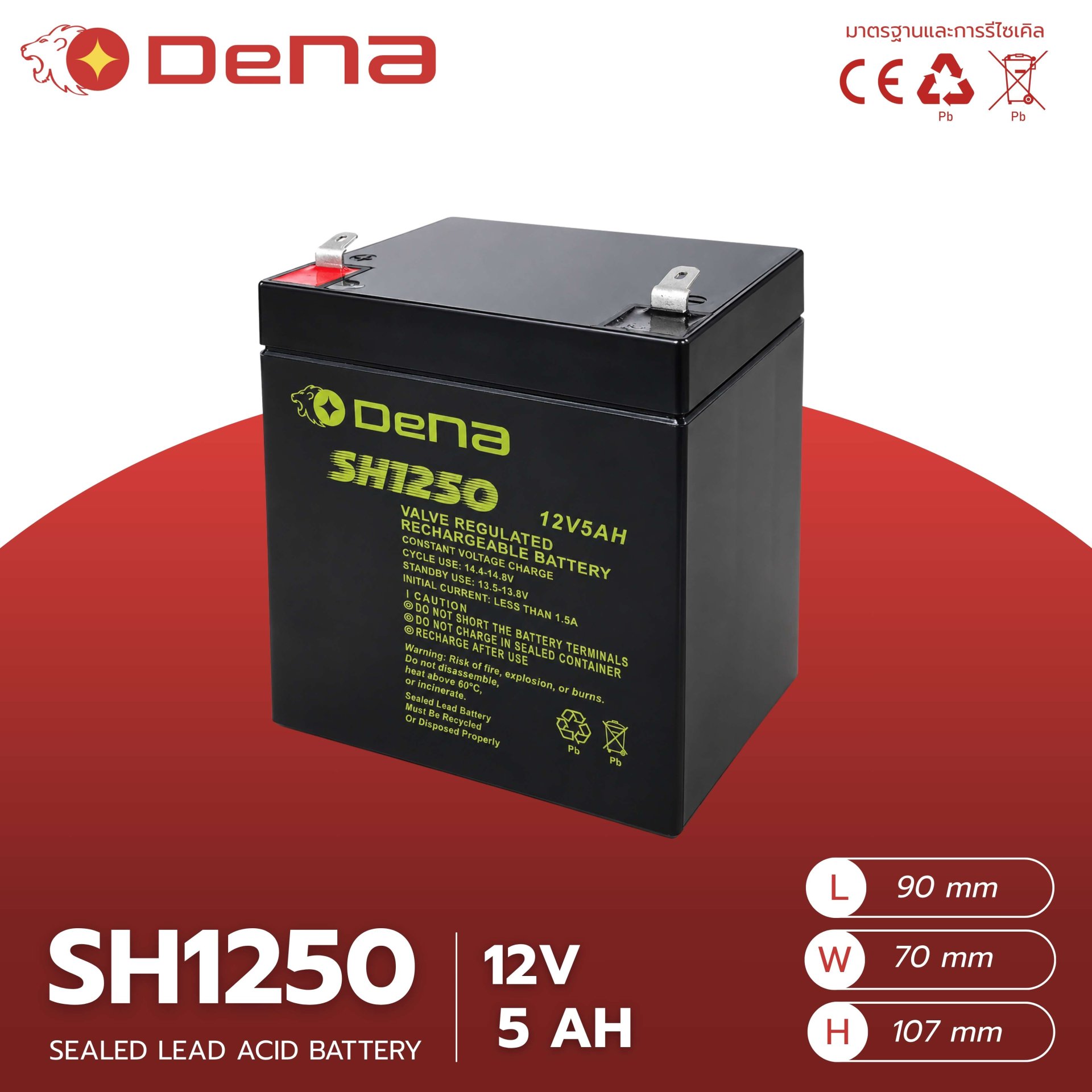

DeNA SH1250
Attribute:
Voltage (V) : 12 Capacity (Ah): 5 Dimensions : 90 x 70 x 101 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Floating Life @25°C | 5 years |
| Nominal Capacity @25°C 20 hour rate (0.25A, 10.8V) 10 hour rate (0.48A, 10.8V) 5 hour rate (0.89A, 10.5V) 1 hour rate (3.30A, 9.6V) | 5 Ah 4.8 Ah 4.45 Ah 3.30 Ah |
| Internal Resistance | ≤ 35mΩ |
| Self-Discharge @25°C per month | 3% |
| Operating Temperature Range Discharge Charge Storage | -15°C~45°C -15°C~45°C -15°C~45°C |
| Max. Discharge Current @25°C | 30A (5s) |
| Charge (Constant Voltage) @25°C Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8 V 1.5 A -30mV/°C 13.5 - 13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 90 / 3.54 70 / 2.76 101 / 3.98 107 / 4.22 1.6 / 3.53 |
