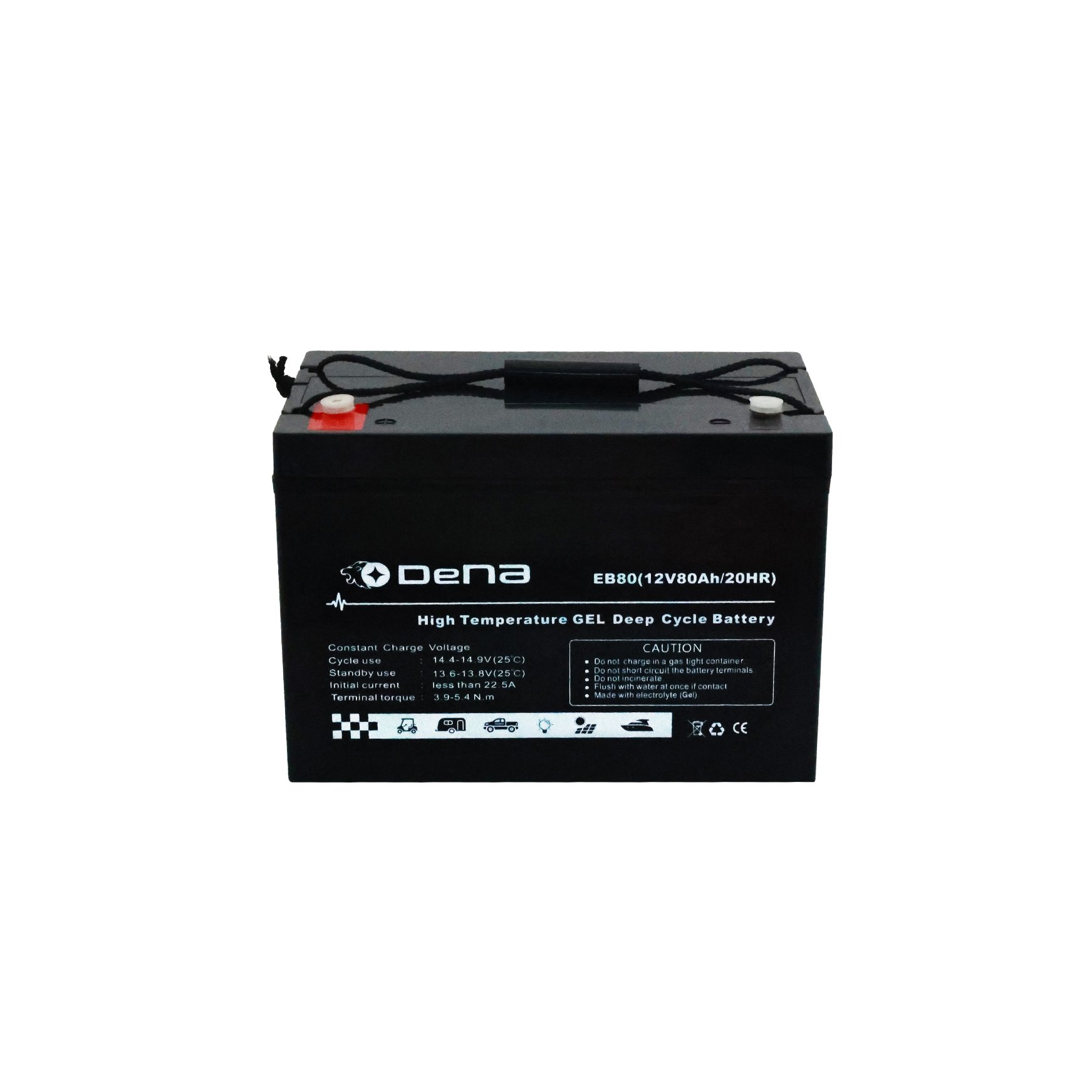

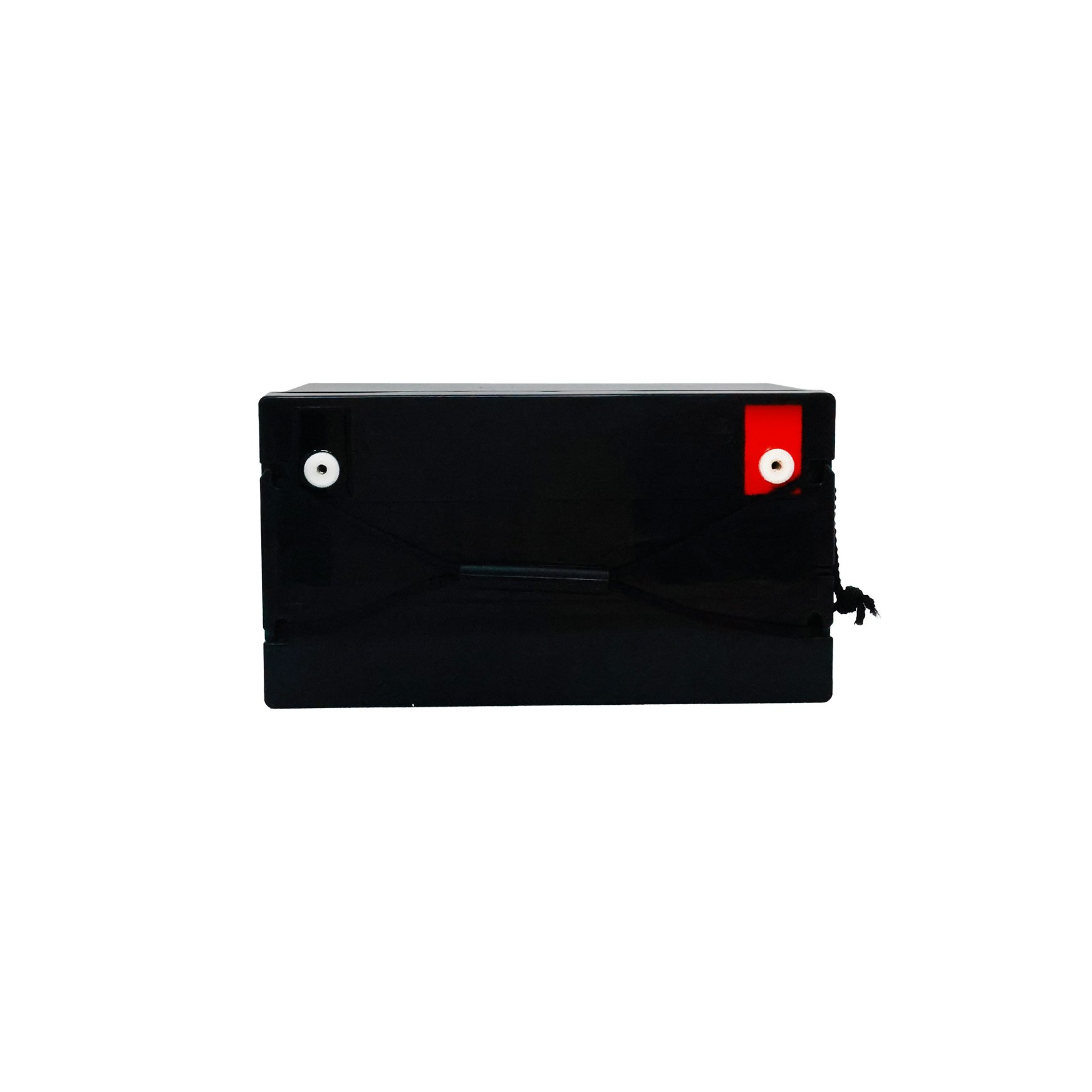

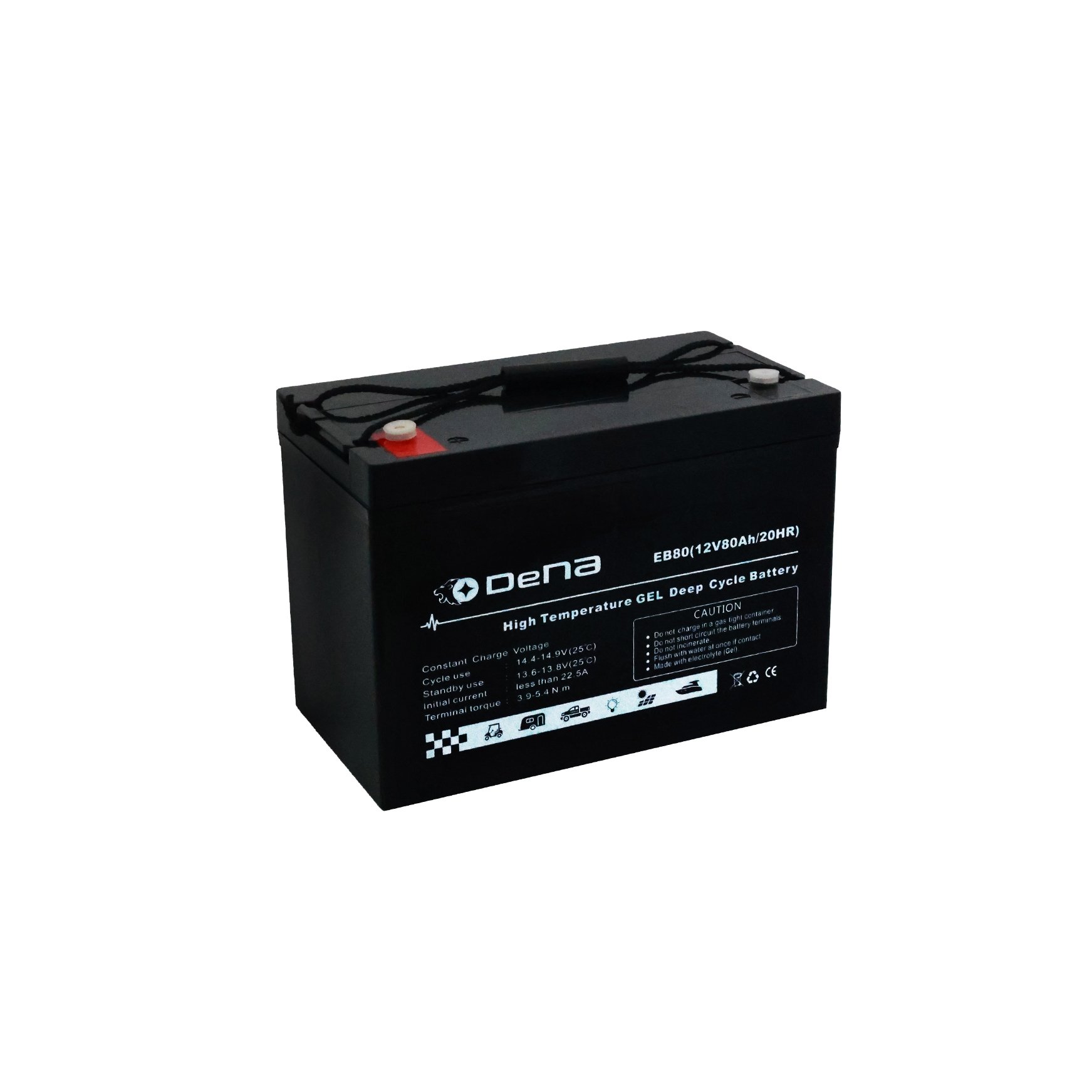

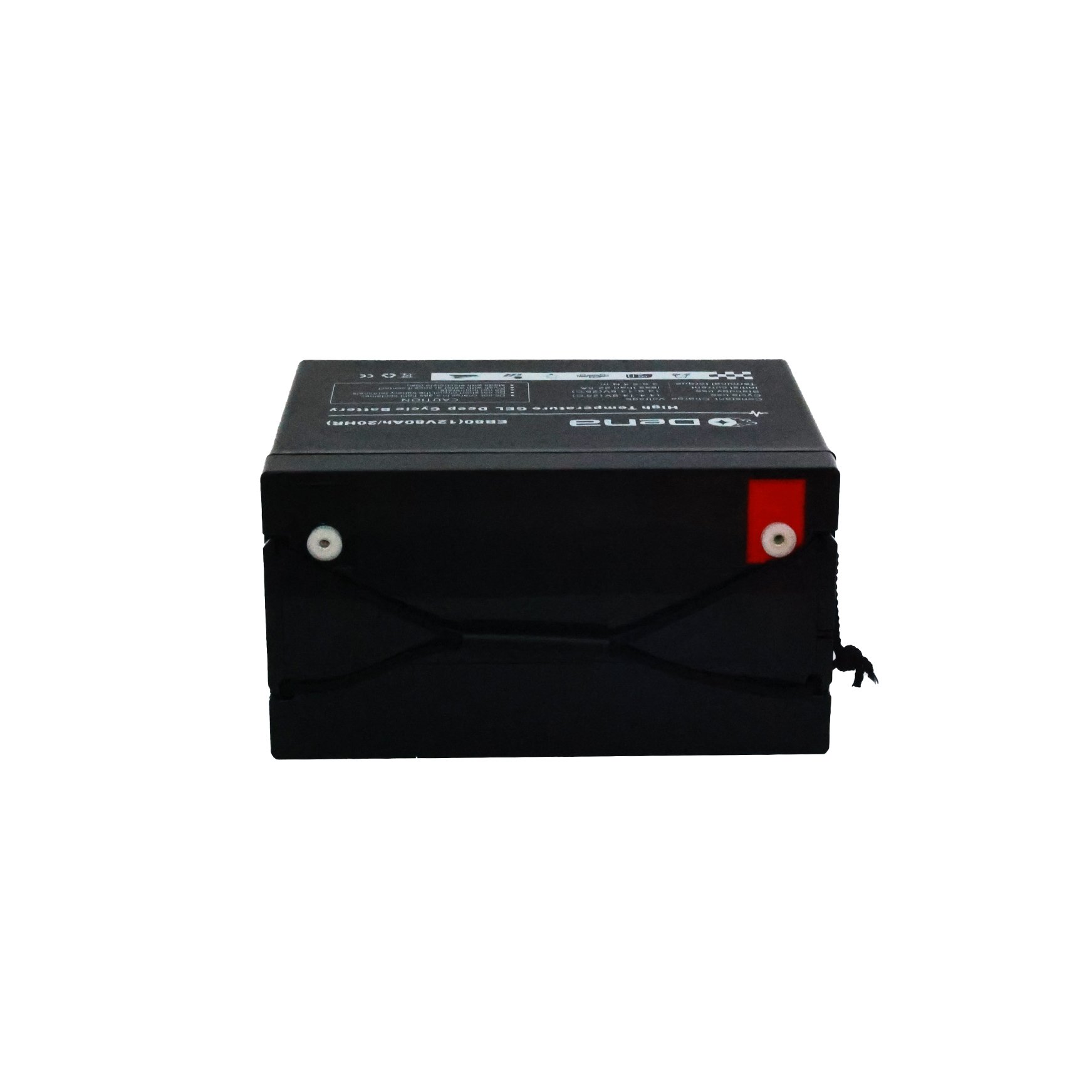

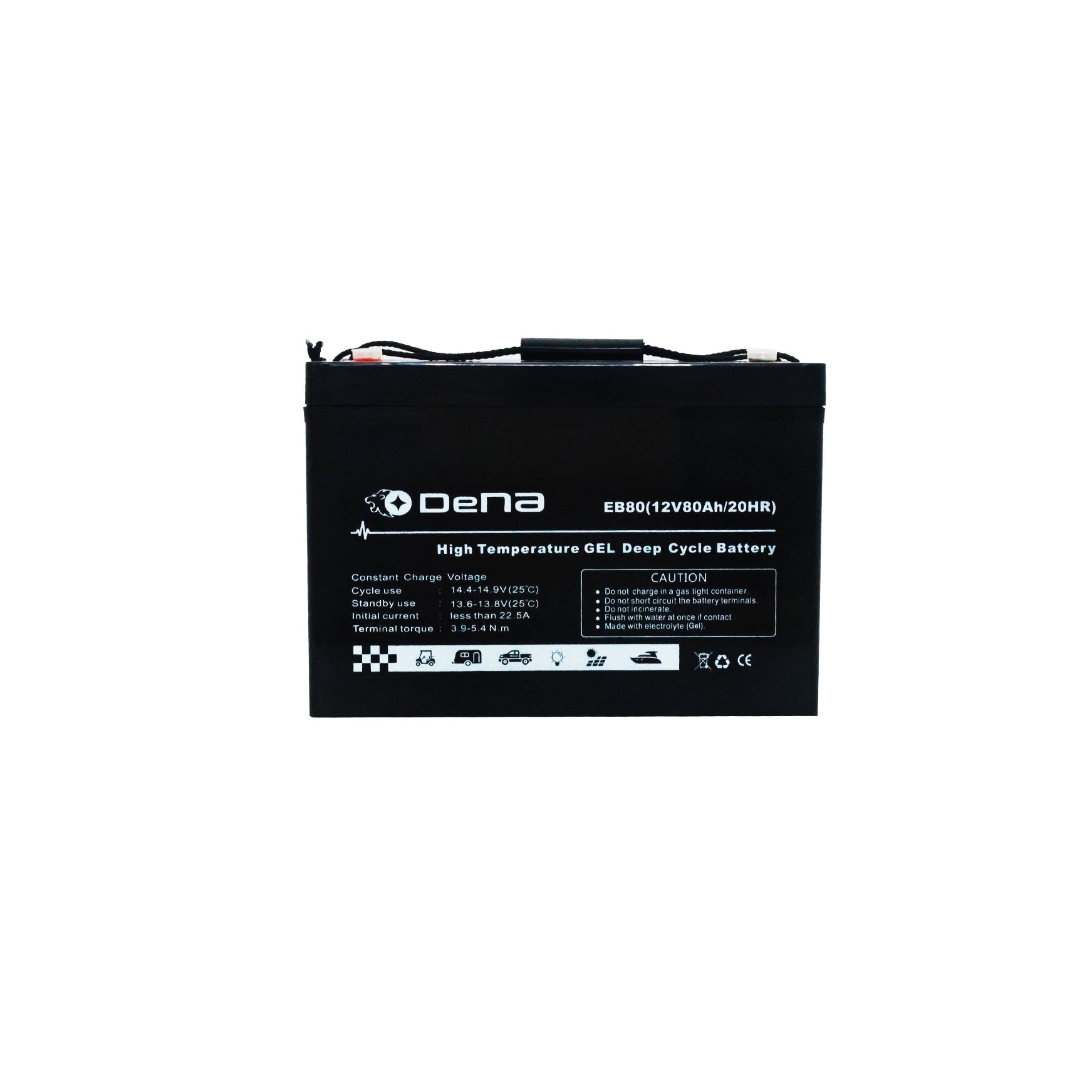

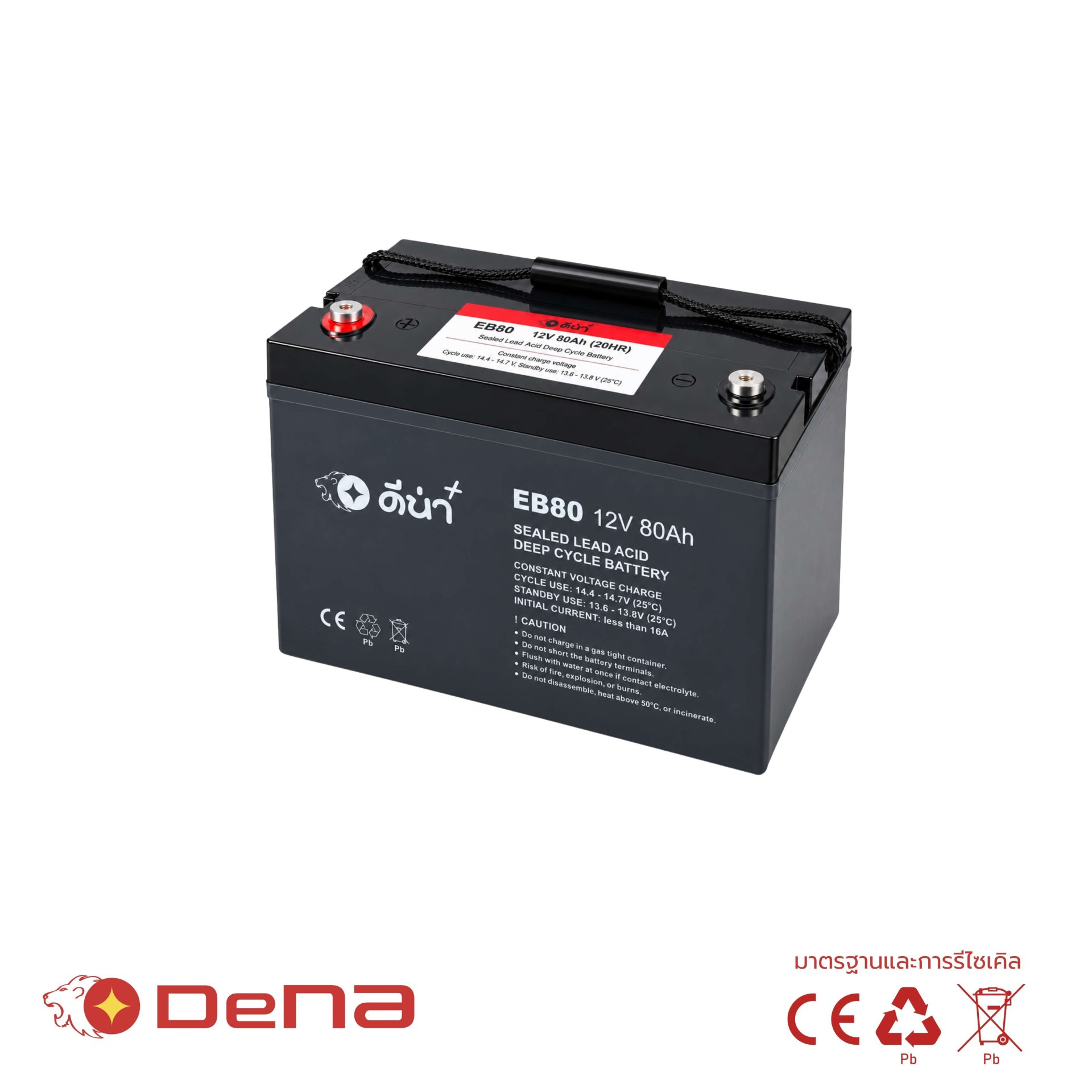

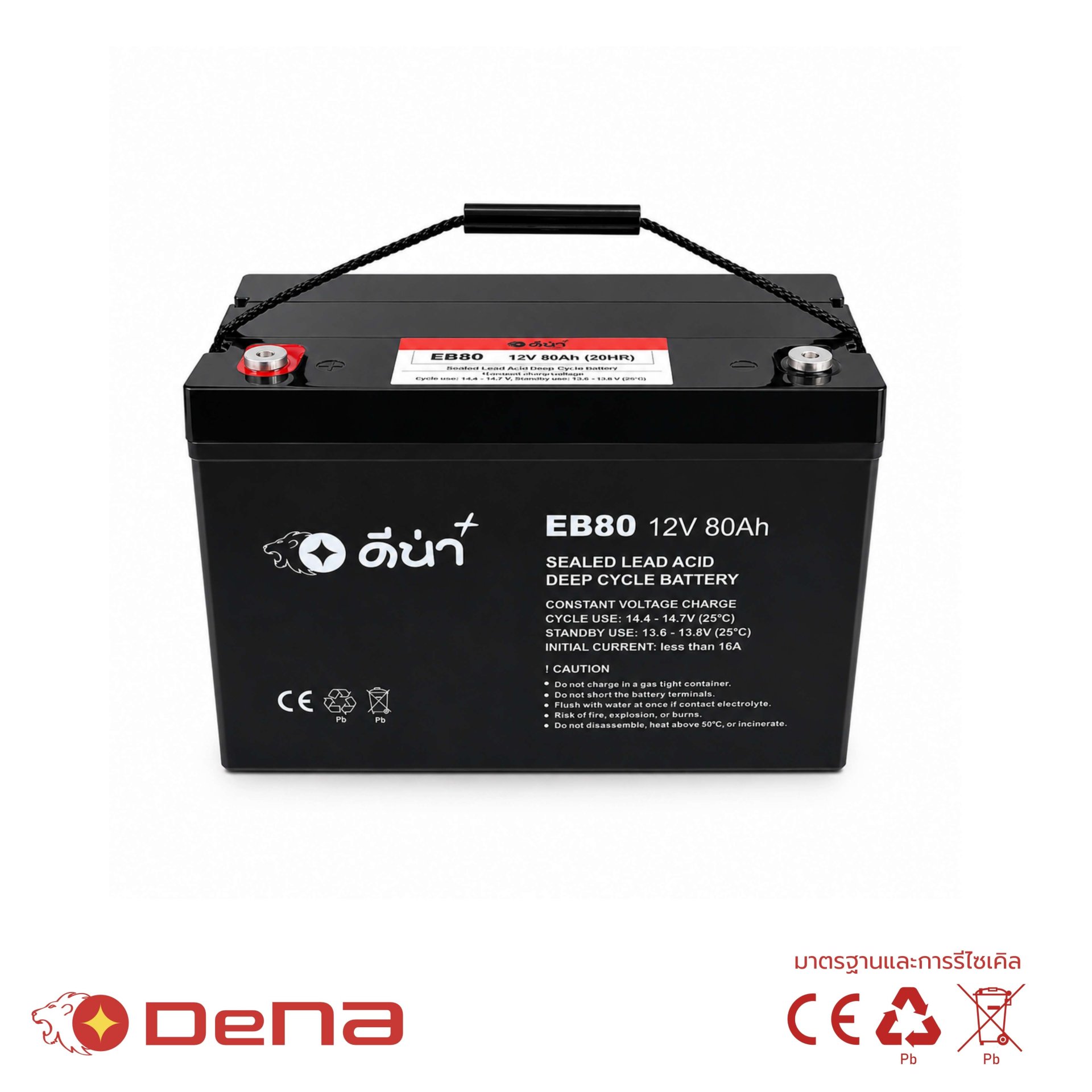

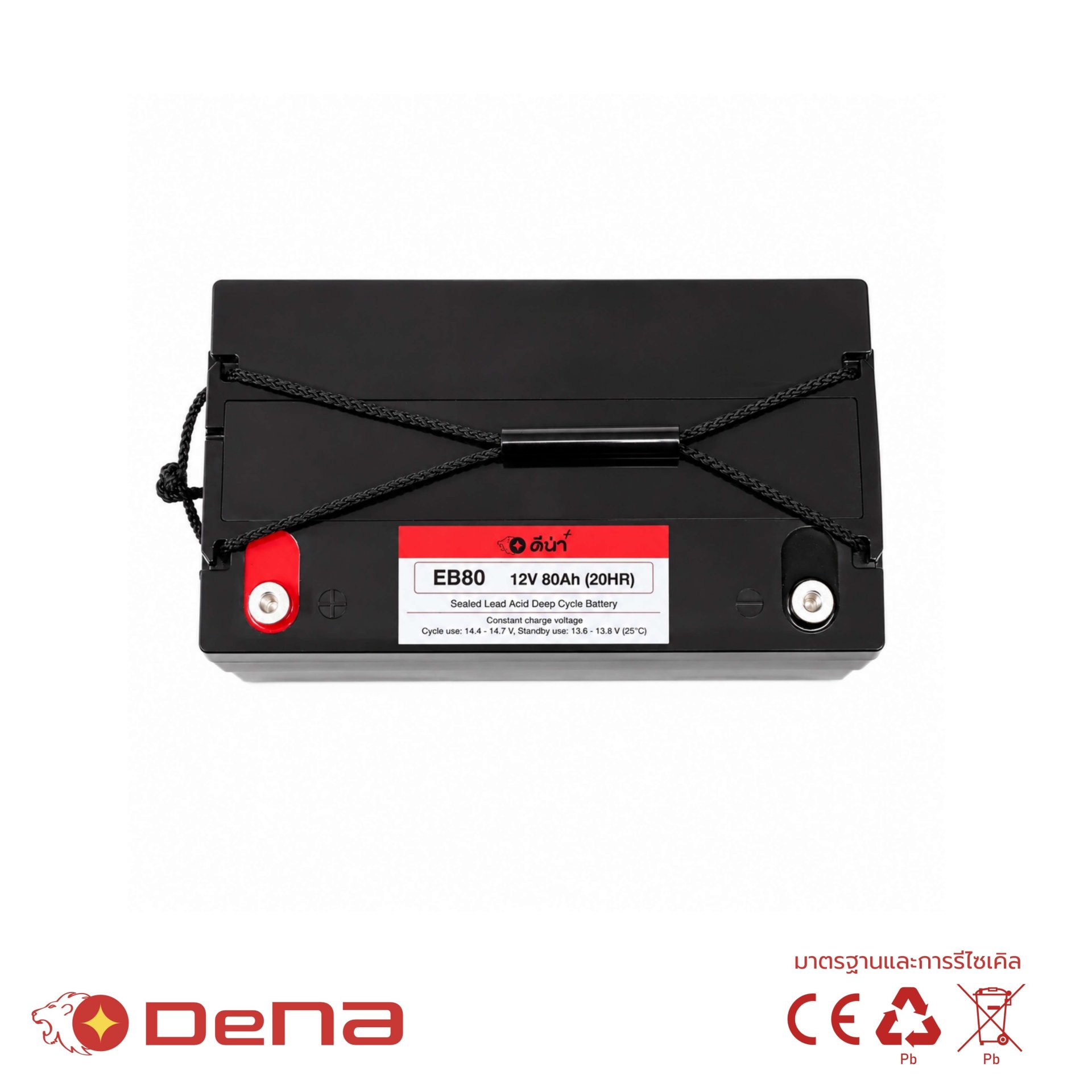

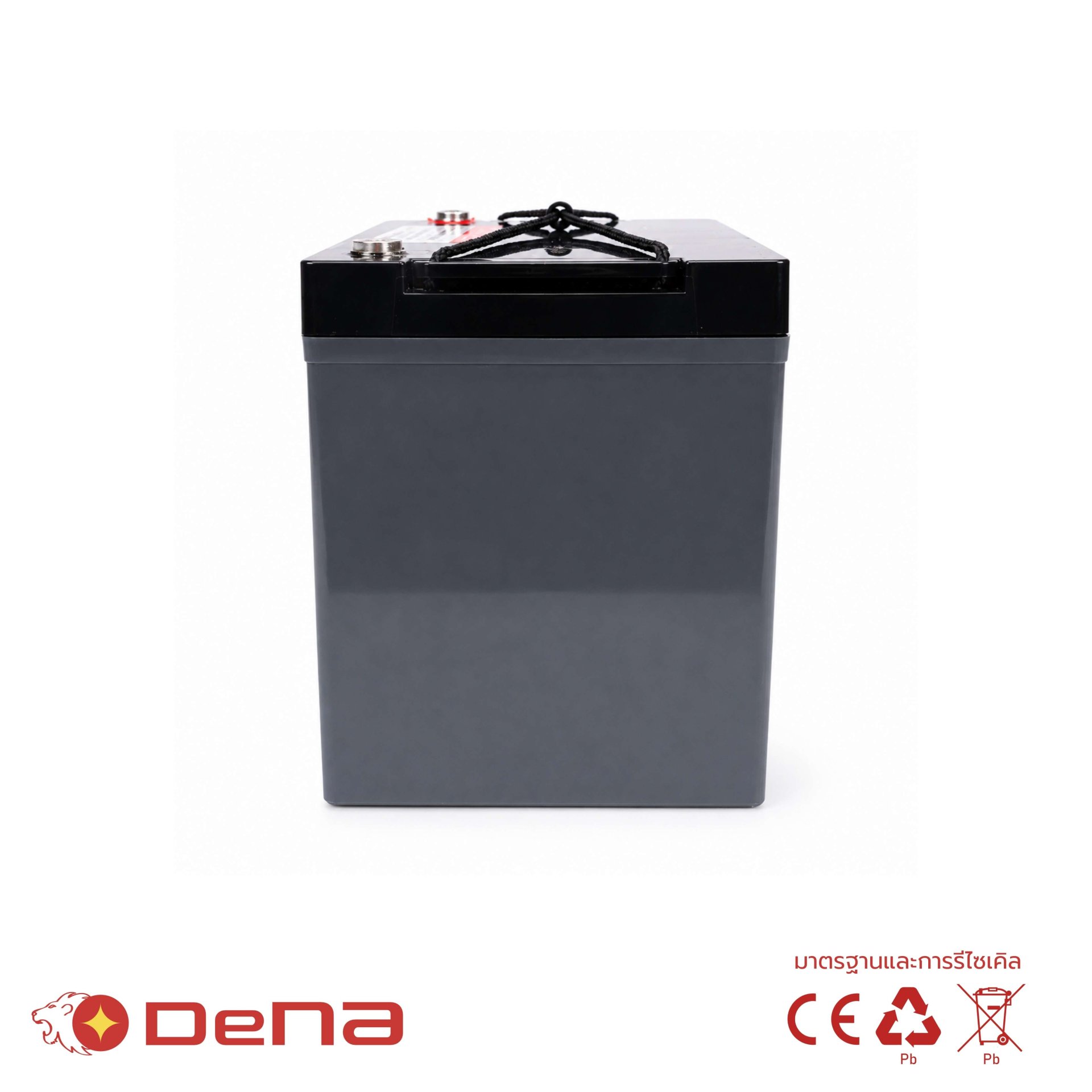

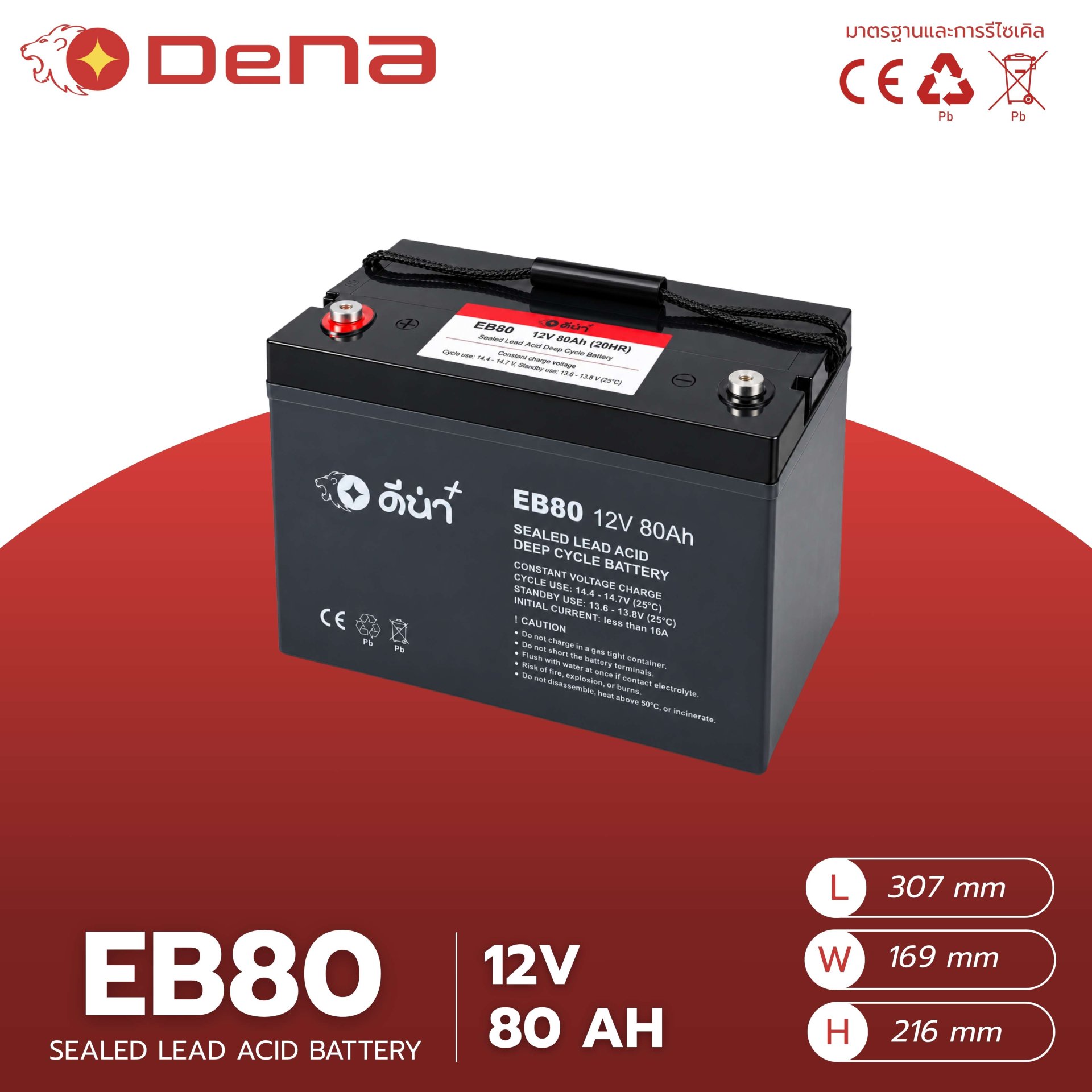

DeNA EB80
Attribute:
Voltage (V) : 12 Capacity (Ah): 80 Dimensions : 307 x 169 x 211 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Recommended Charge Current With Temperature Compensation Without Temperature Compensation | Cyclic Application 22.5 A Max. 8.0 - 22.5 A |
| Charge Voltage (12 Volts) | 14.4 - 14.9 V |
| Bulk Charge | 14.7 V |
| Absorption Charge | 14.7 V |
| Float Charge | 13.8 V |
| Temperature Compensate Factor | -4 mV/°C/Cell |
| Operating Temperature Discharge Charge Storage | -15°C~45°C -15°C~45°C -15°C~45°C |
| Dimensions and Weight Length(mm) Width(mm) Height(mm) Total Height(mm) Approx. Weight(Kg / Ibs) | 307 169 211 216 30.5 |
