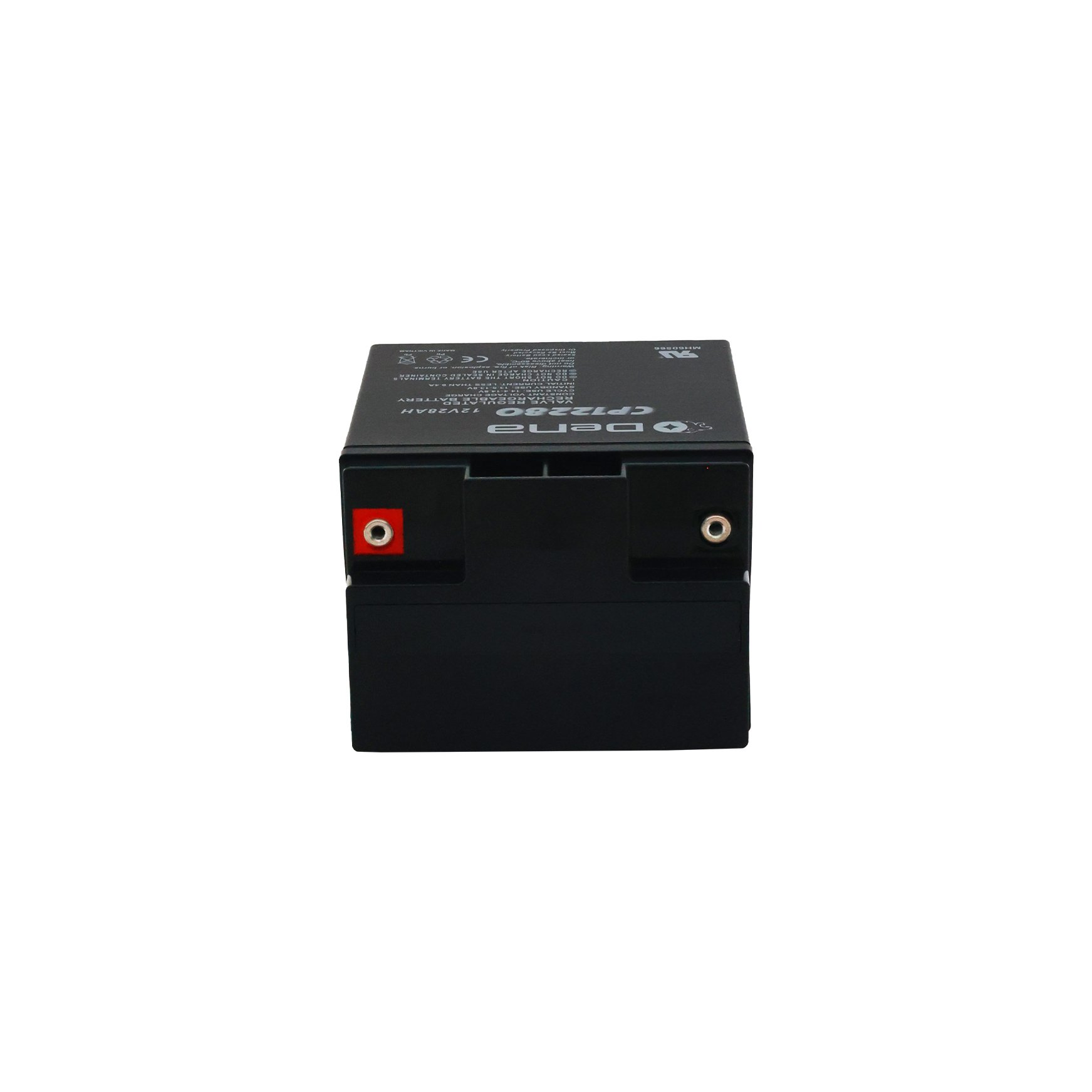

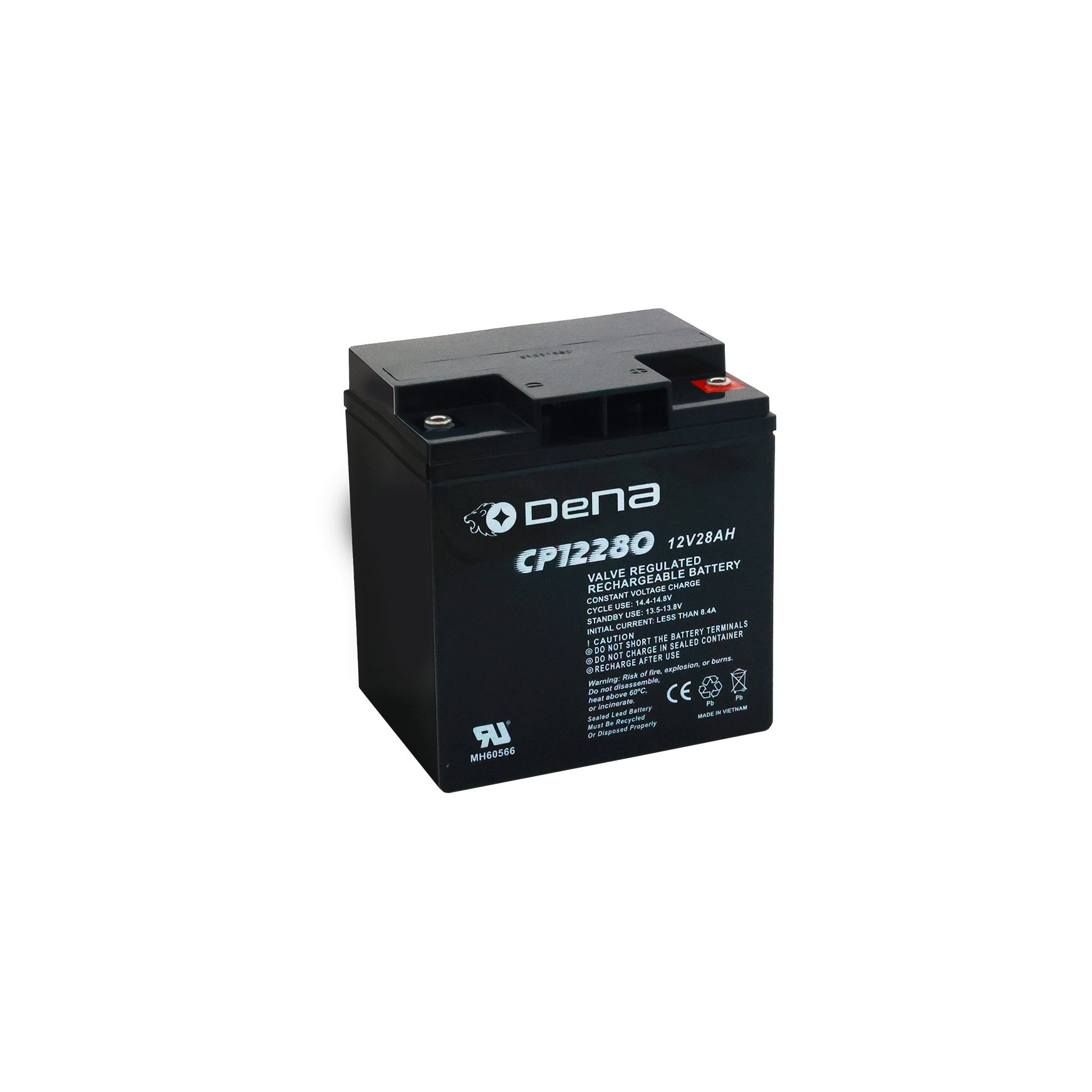

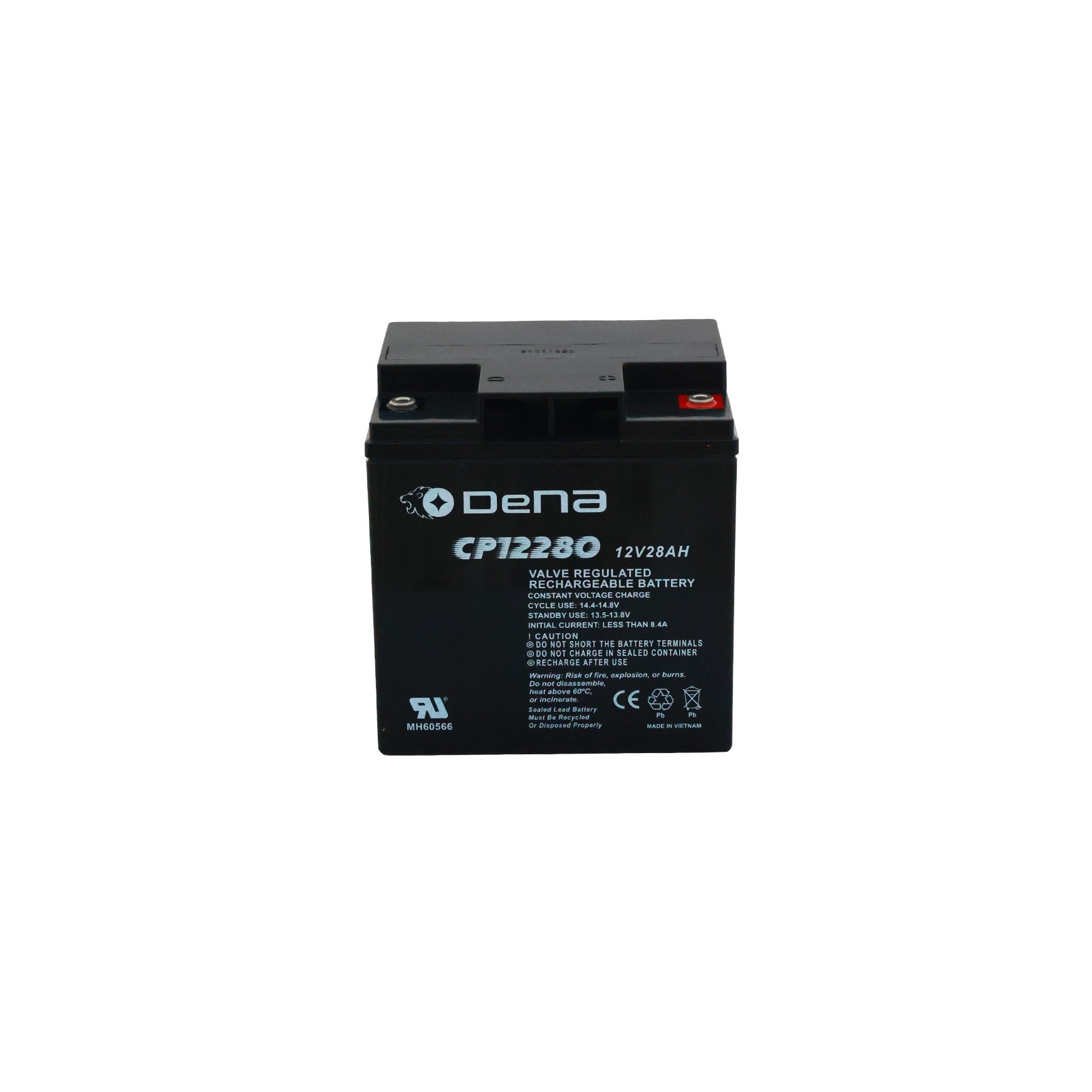

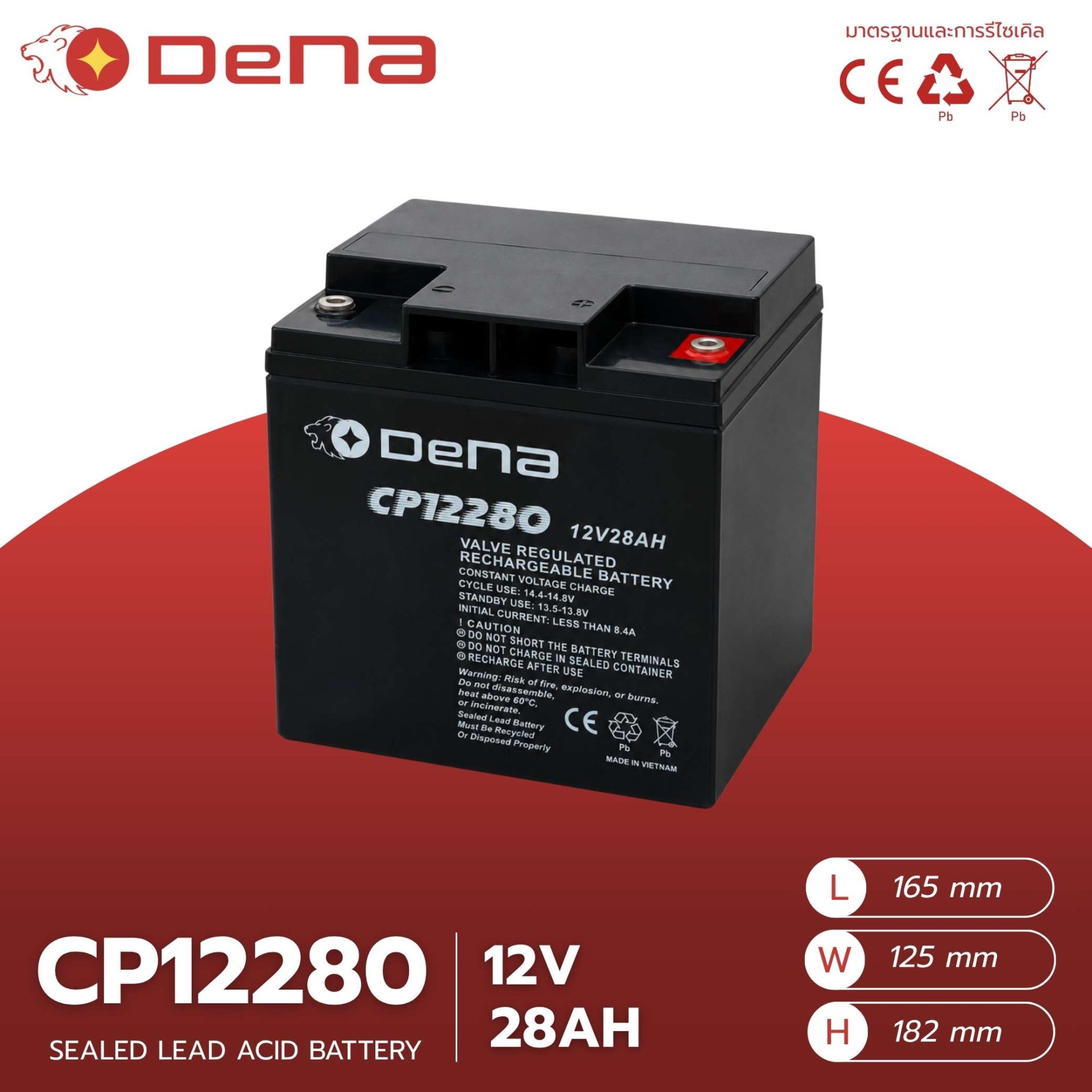

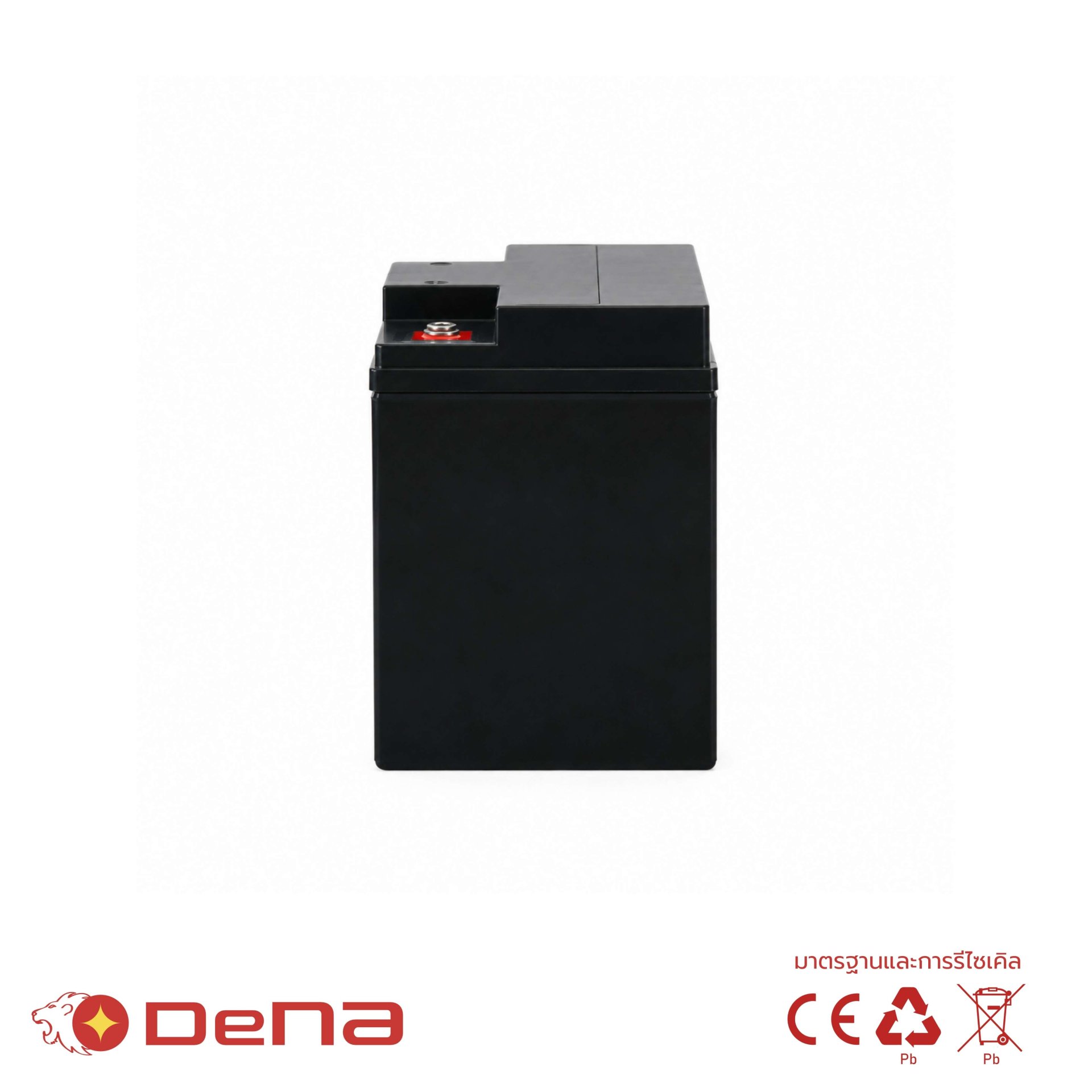

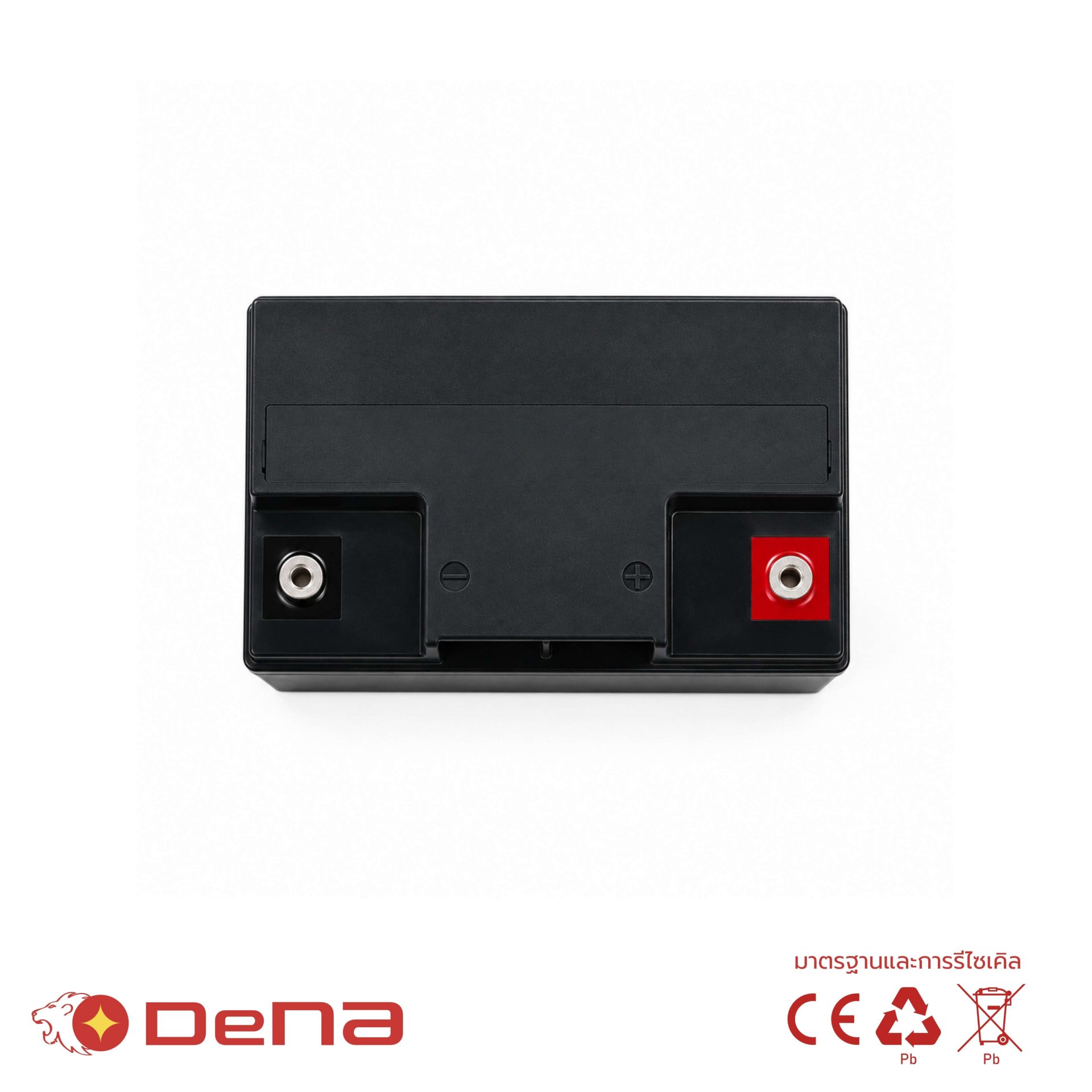

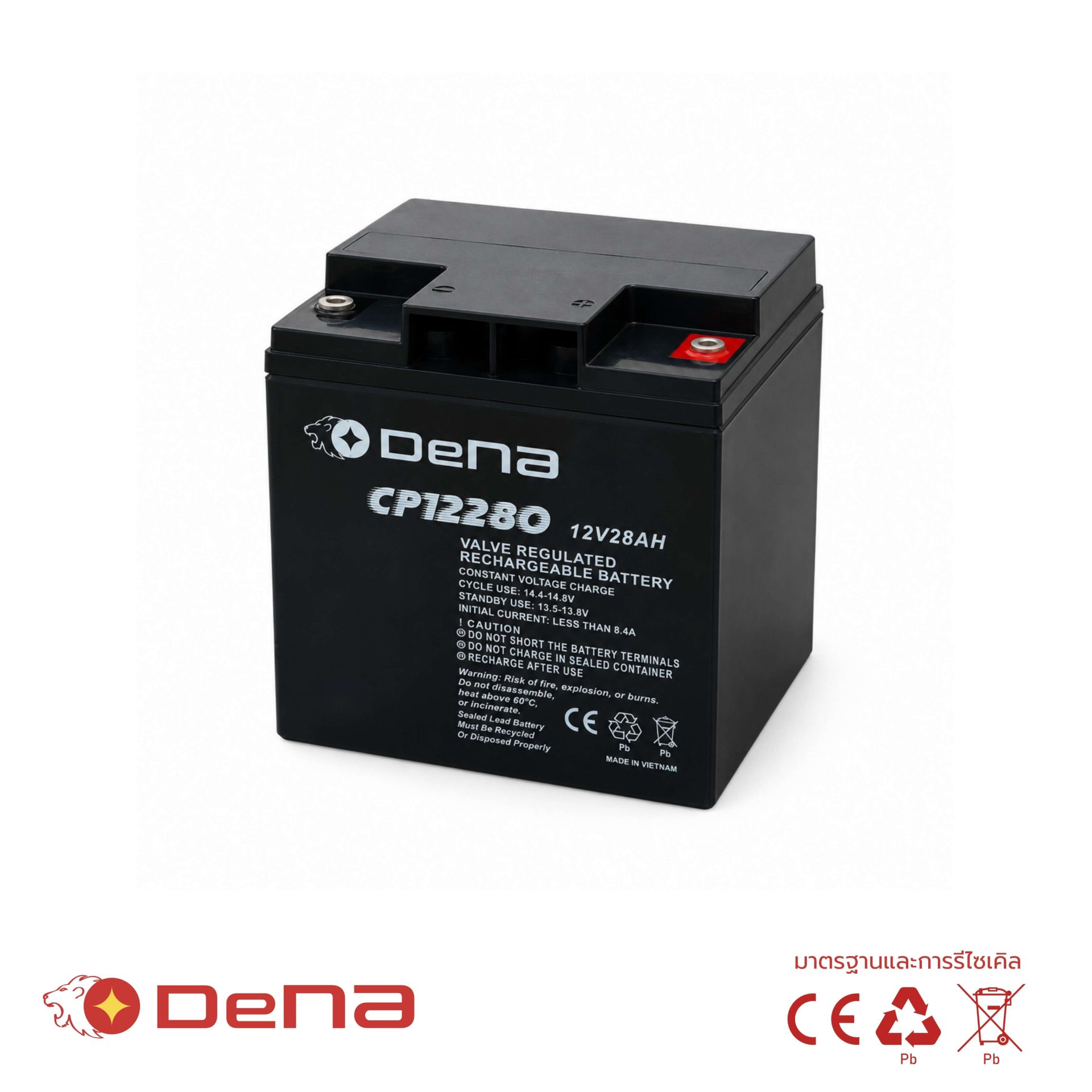

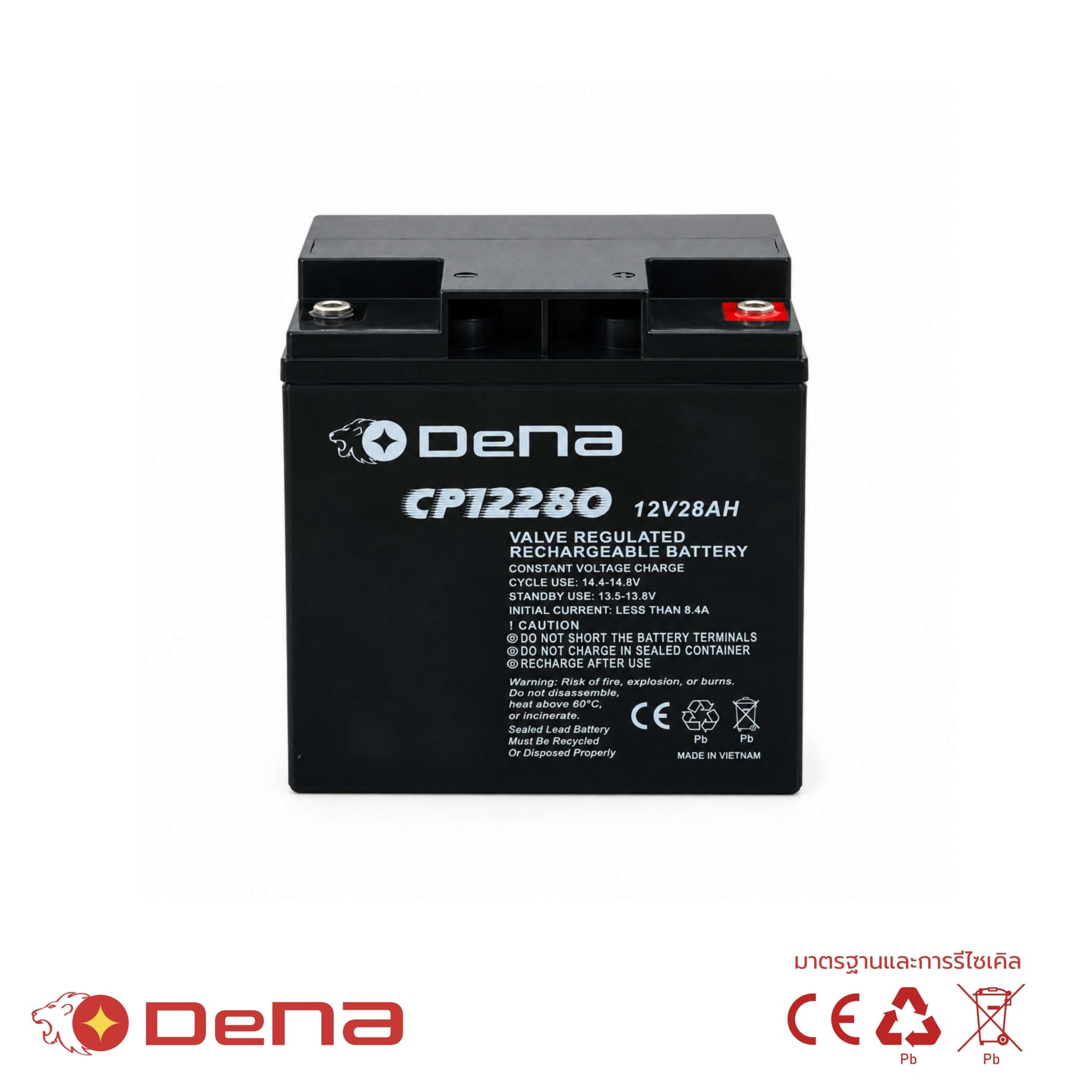

DeNA CP12280
Attribute:
Voltage (V) : 12 Capacity 20hr (Ah): 28 Dimensions : 165 x 125 x 175 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 5 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (1.4A, 10.5V) 10 hour rate (2.65A, 10.5V) 5 hour rate (4.8A, 10.5V) 1 hour rate (19.6A, 9.6V) | 28Ah 26.5Ah 24Ah 19.6Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | ≤12mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 310A(5s) |
| Short Circuit Current | 1400A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8V 11.2A -30mV/°C 13.5-13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 165 / 6.50 125 / 4.92 175 / 6.89 182 / 7.17 9.30 / 20.5 |
