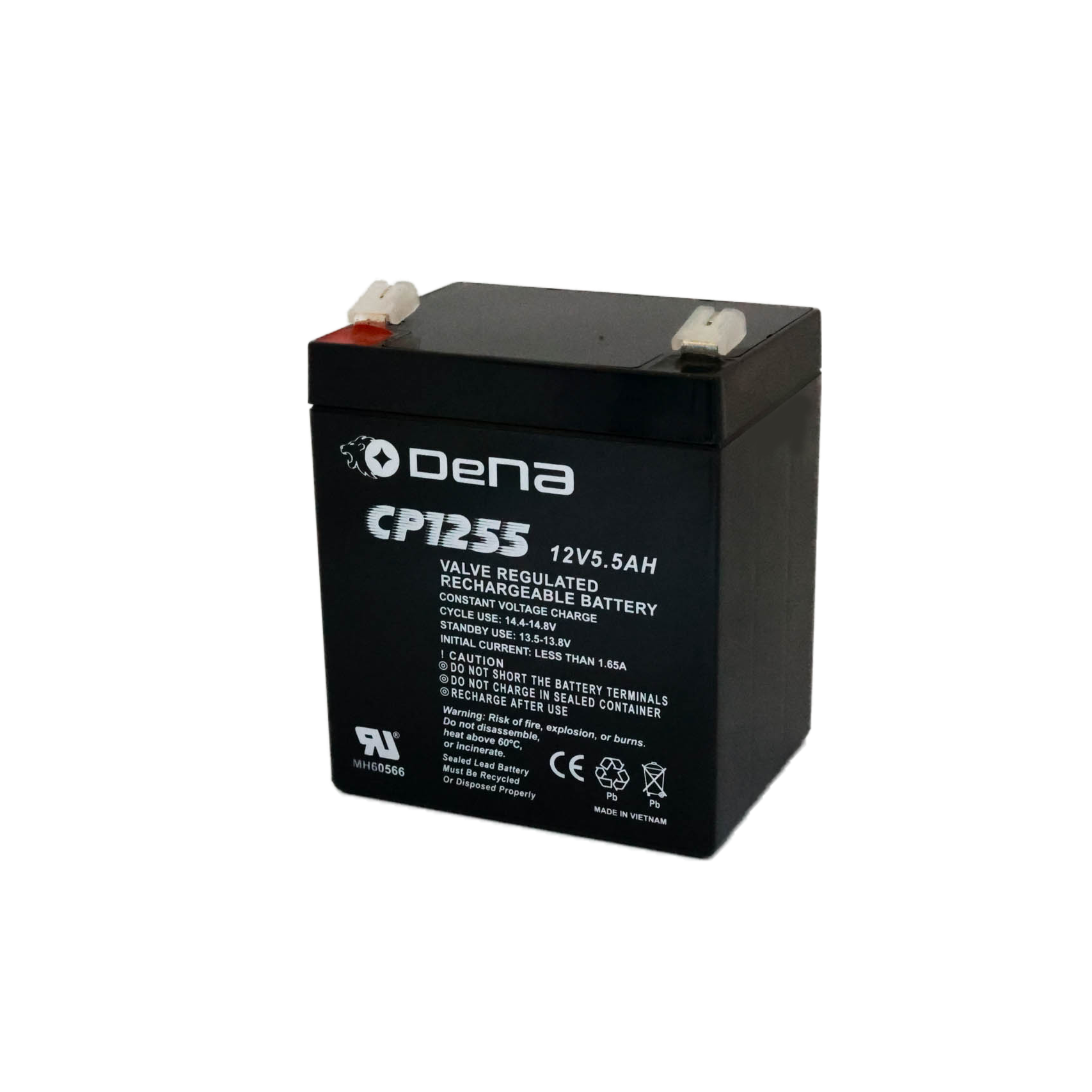

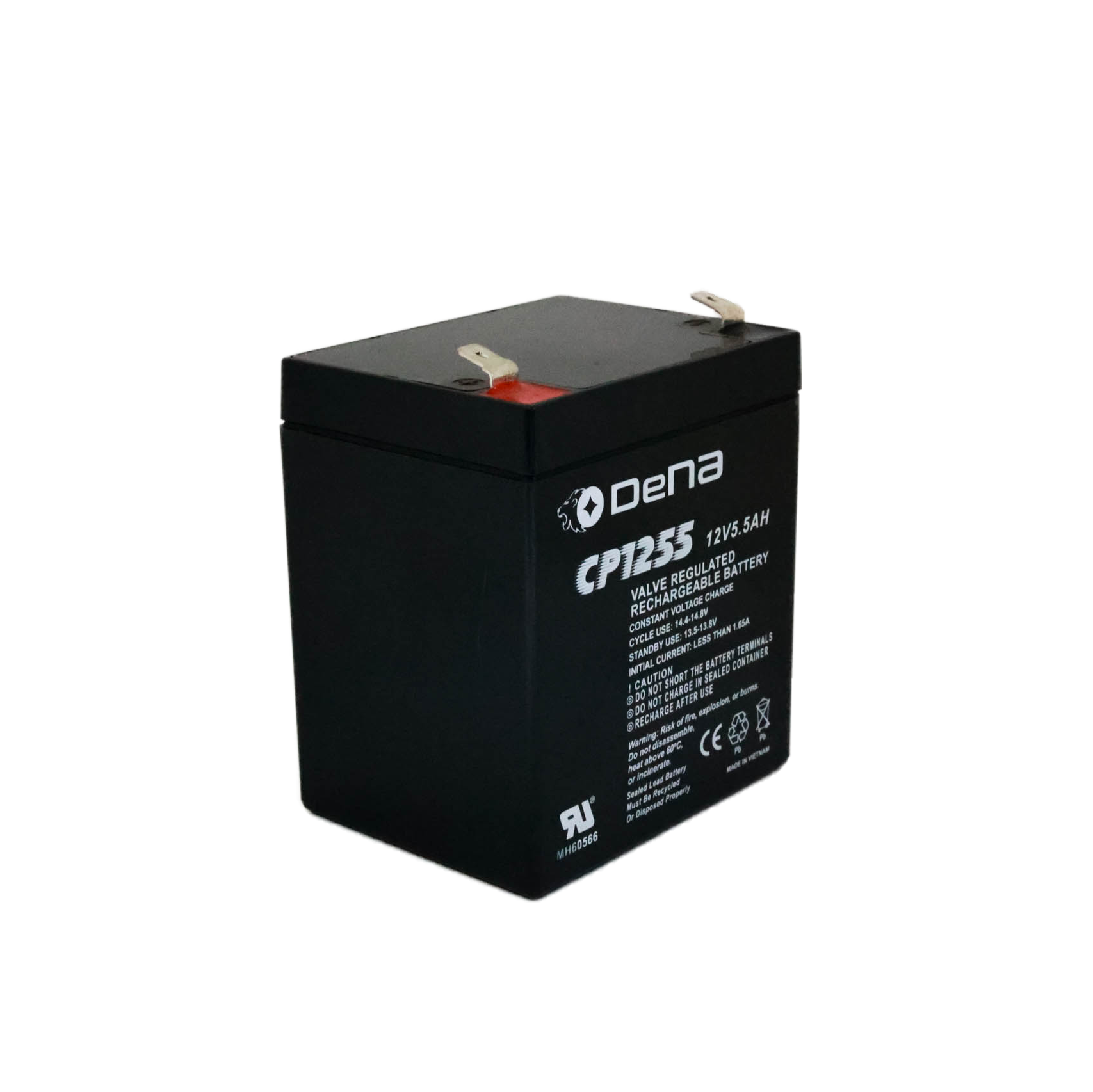

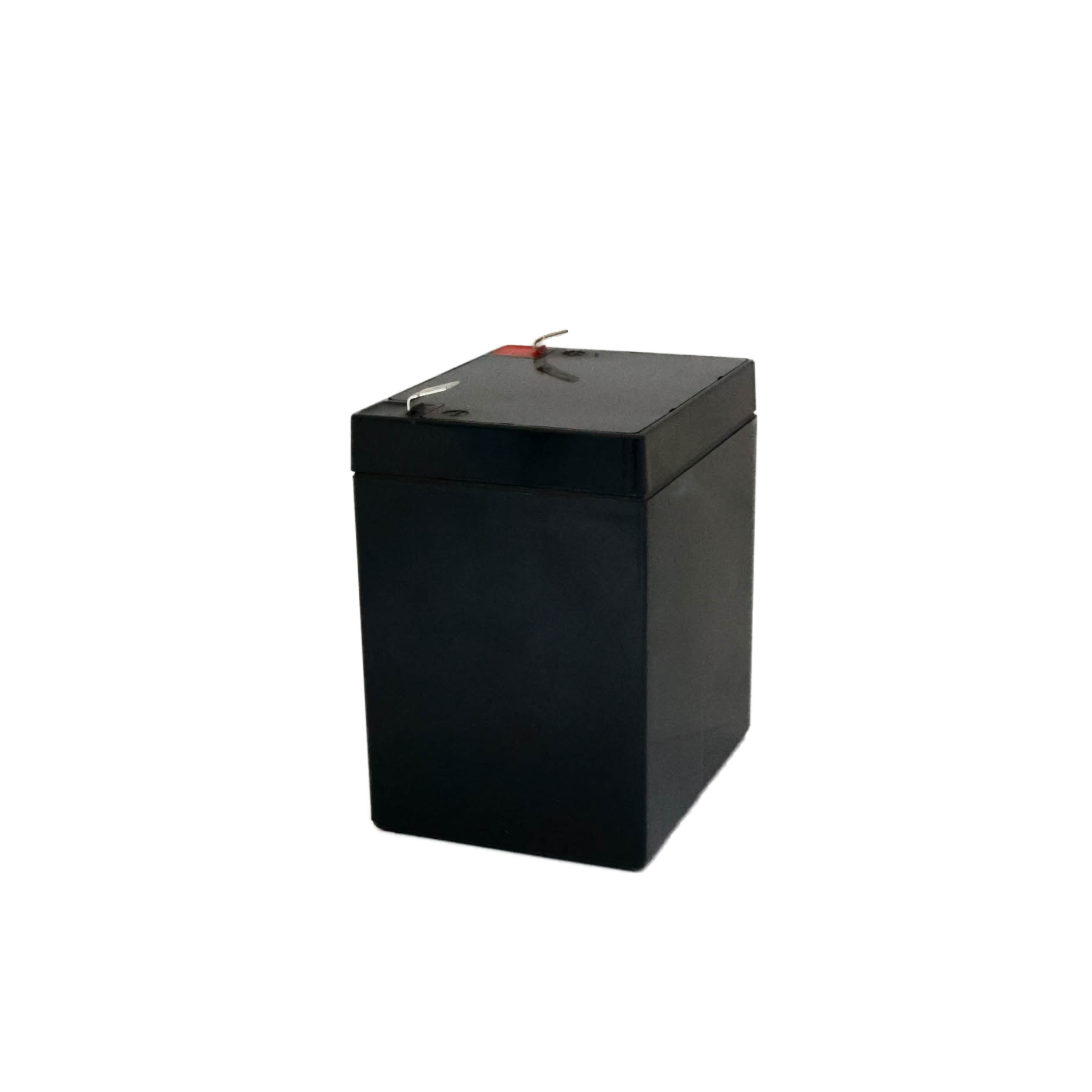

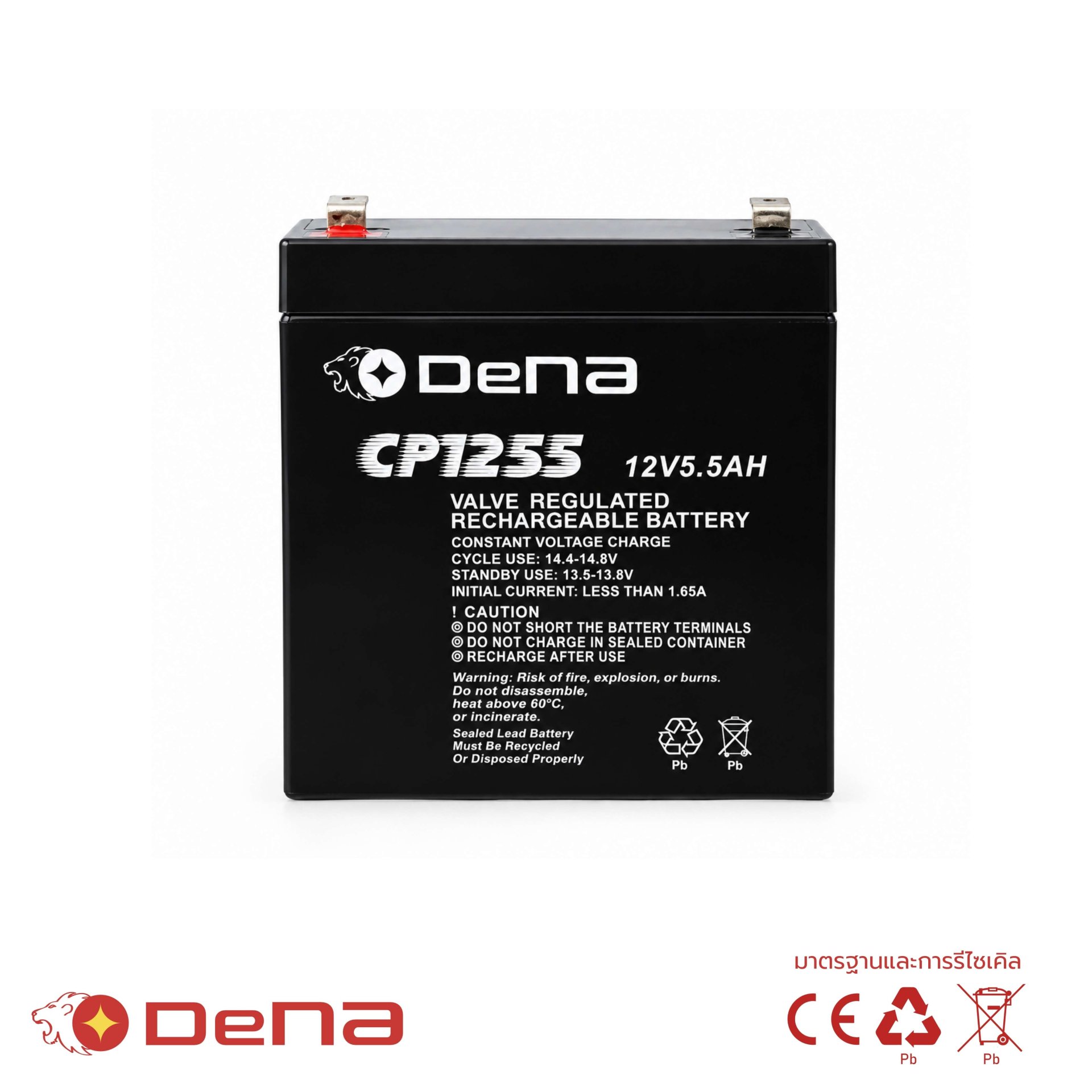

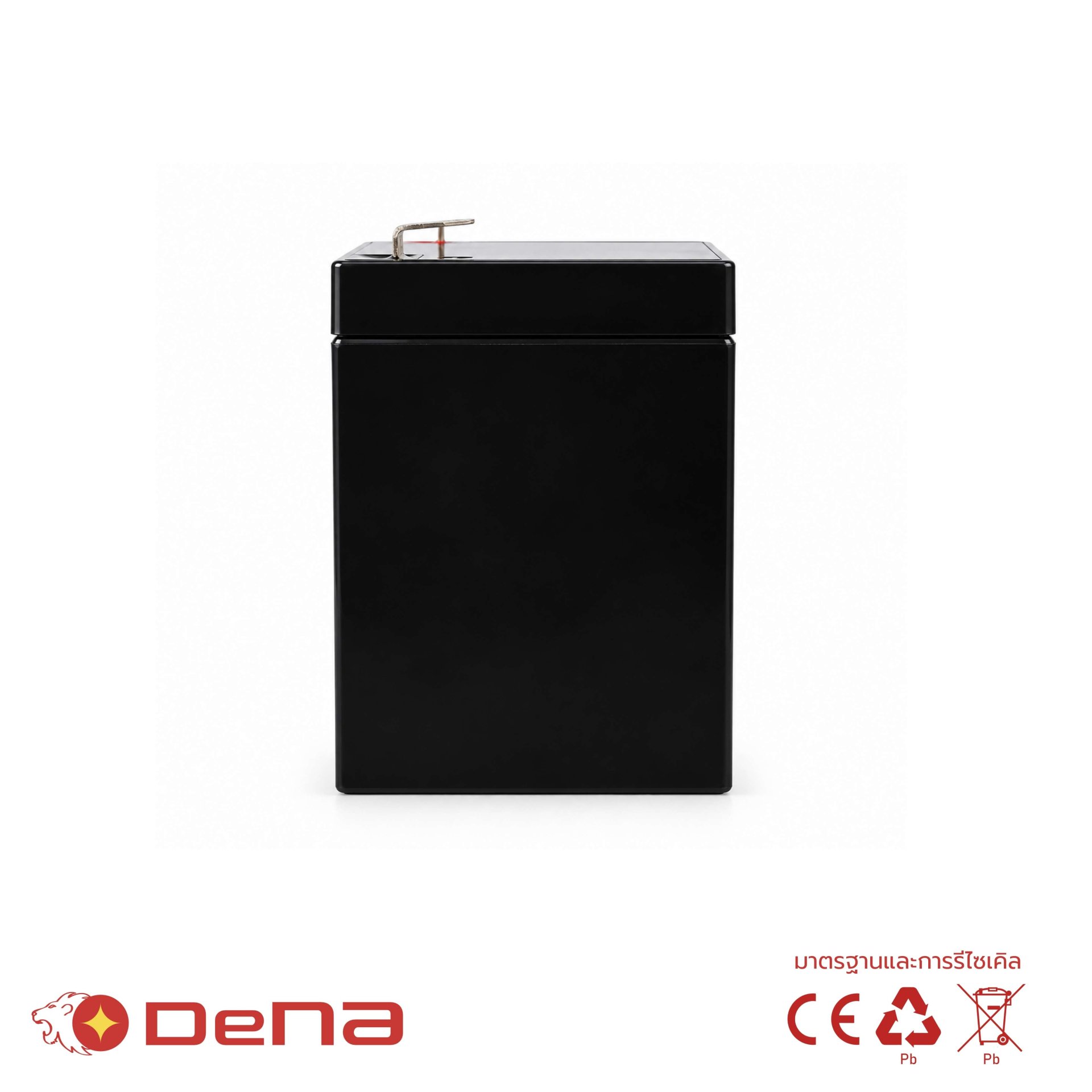

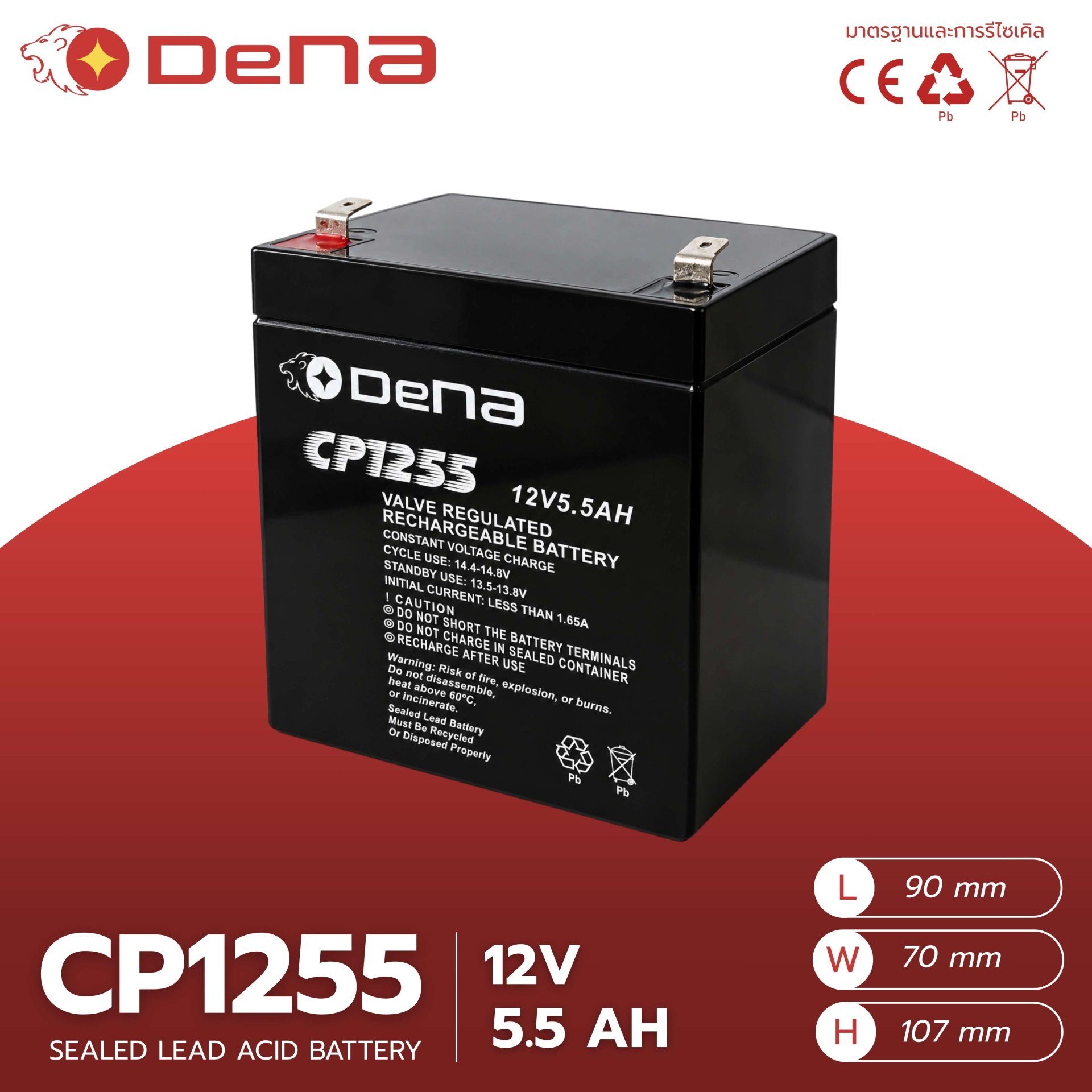

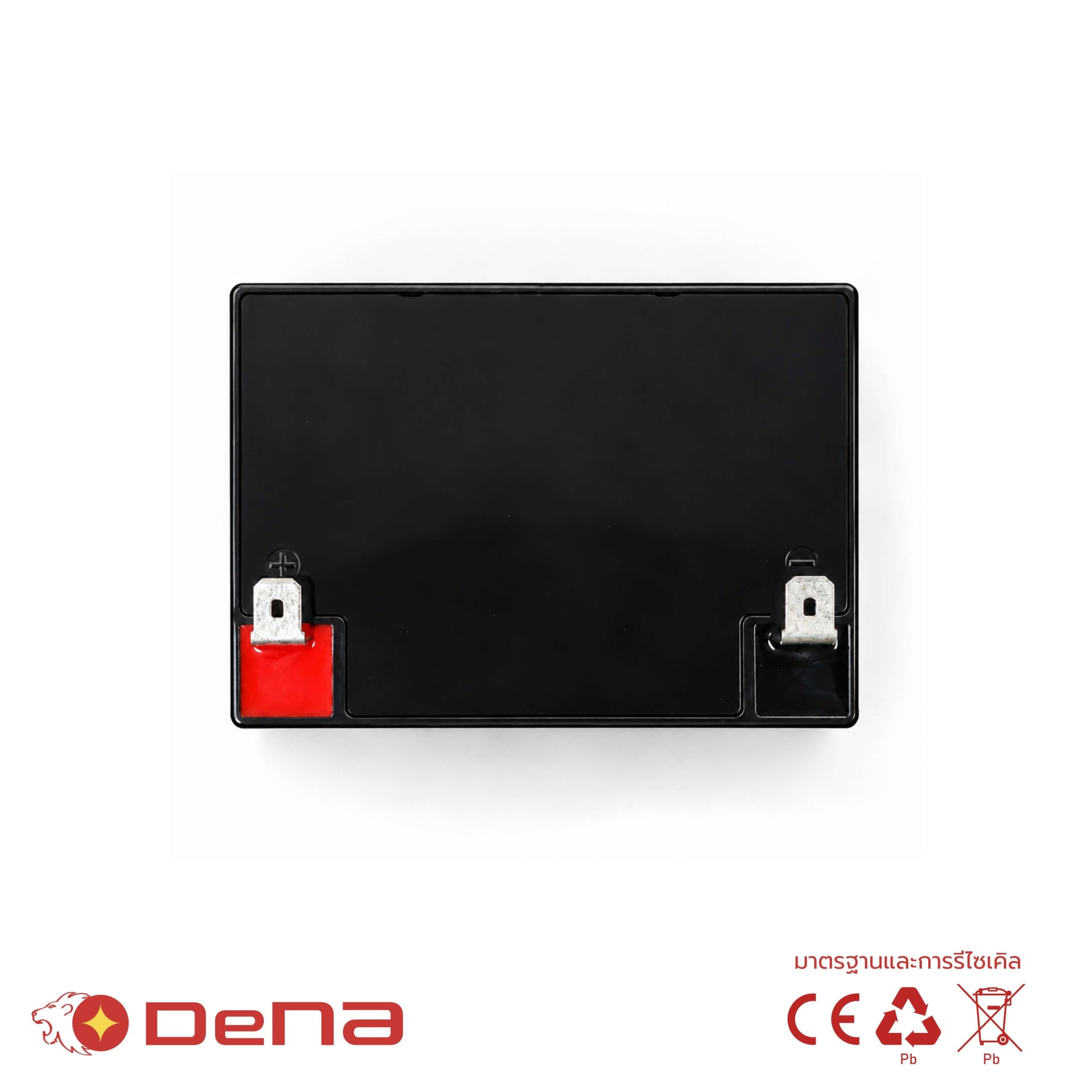

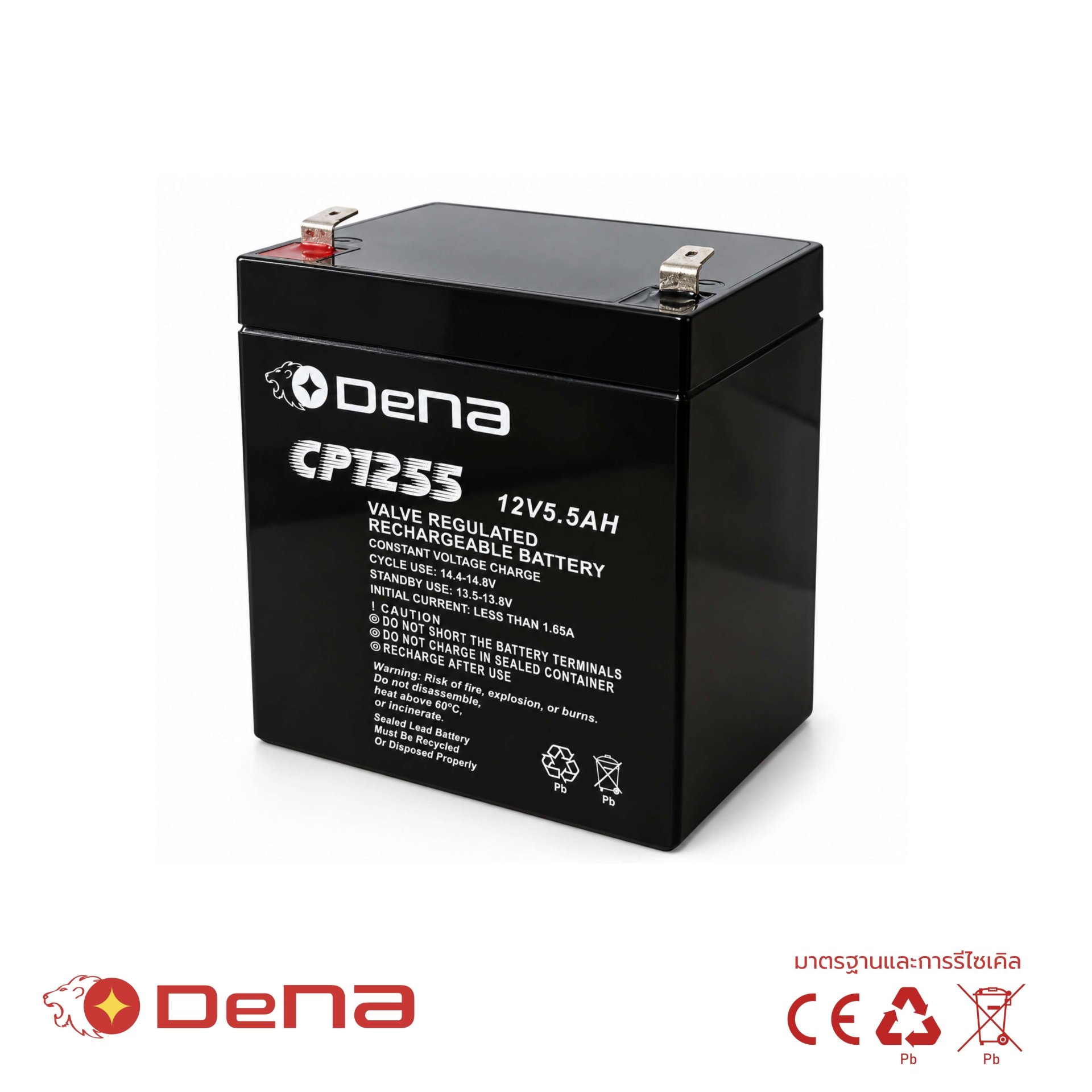

DeNA CP1255
Attribute:
Voltage (V) : 12 Capacity 20hr (Ah): 5.5 Dimensions : 90 x 70 x 101 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 5 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (0.275A, 10.8V) 10 hour rate (0.52A, 10.5V) 5 hour rate (0.91A, 10.5V) 1 hour rate (3.82A, 9.6V) | 5.5Ah 5.2Ah 4.55Ah 3.82Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | 35mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 75A(5s) |
| Short Circuit Current | 270A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 2.30-2.35V 2A -30mV/°C 2.23-2.27V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 90 / 3.54 70 / 2.76 101 / 3.98 107 / 4.21 1.8 / 3.97 |
