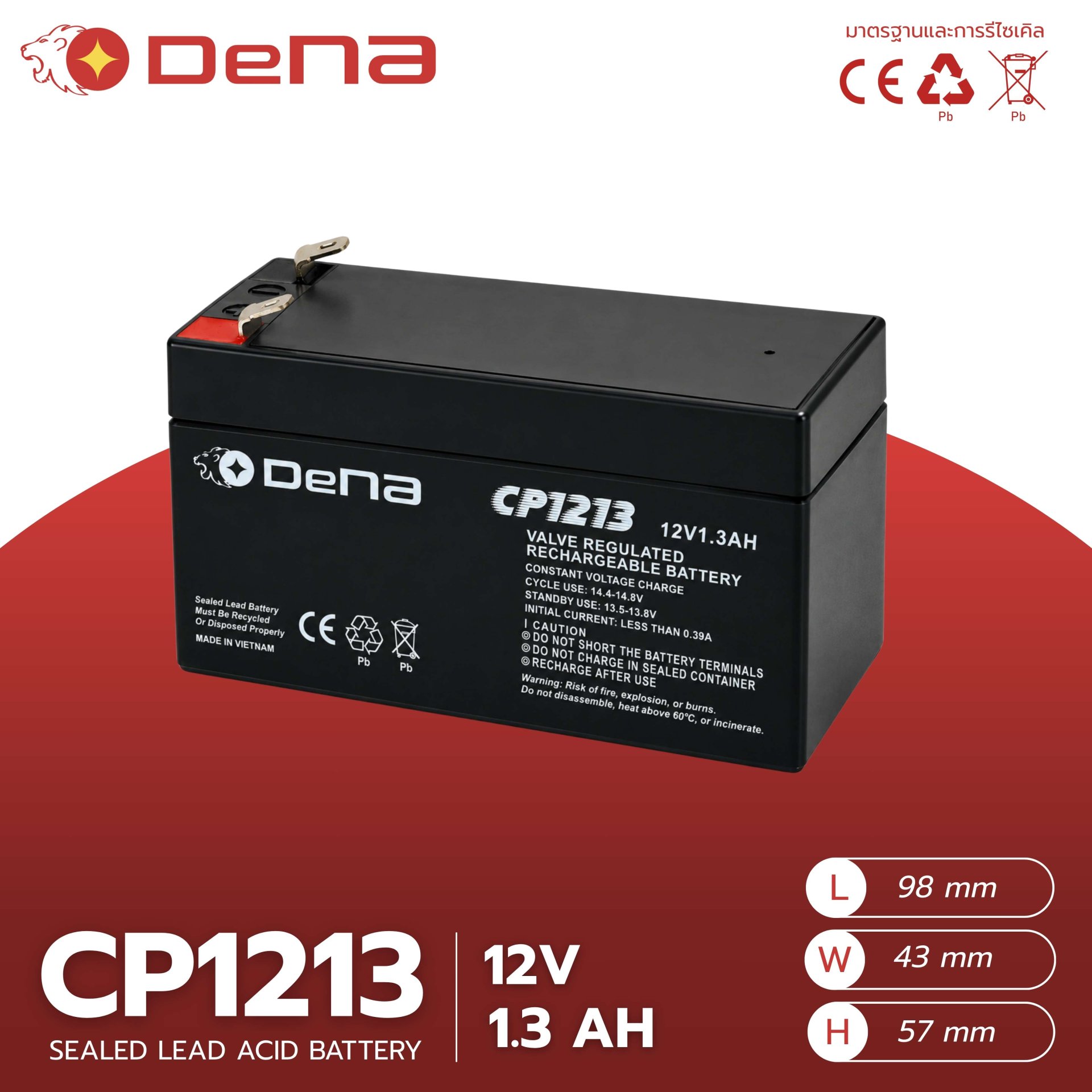

DeNA CP1213
Attribute:
Voltage (V) : 12 Capacity 20hr (Ah): 1.3 Dimensions : 98 x 43 x 52 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 5 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (0.06A, 10.5V) 10 hour rate (0.117A, 10.5V) 5 hour rate (0.23A, 10.5V) 1 hour rate (0.89A, 9.6V) | 1.3Ah 1.17Ah 1.15Ah 0.89Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | 105mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C ~10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 13A(5s) |
| Short Circuit Current | 60A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8VPC 0.39A -30mV/°C 13.5-13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 98 / 3.82 43 / 1.69 52 / 2.05 57 / 2.24 0.64 / 1.18 |
