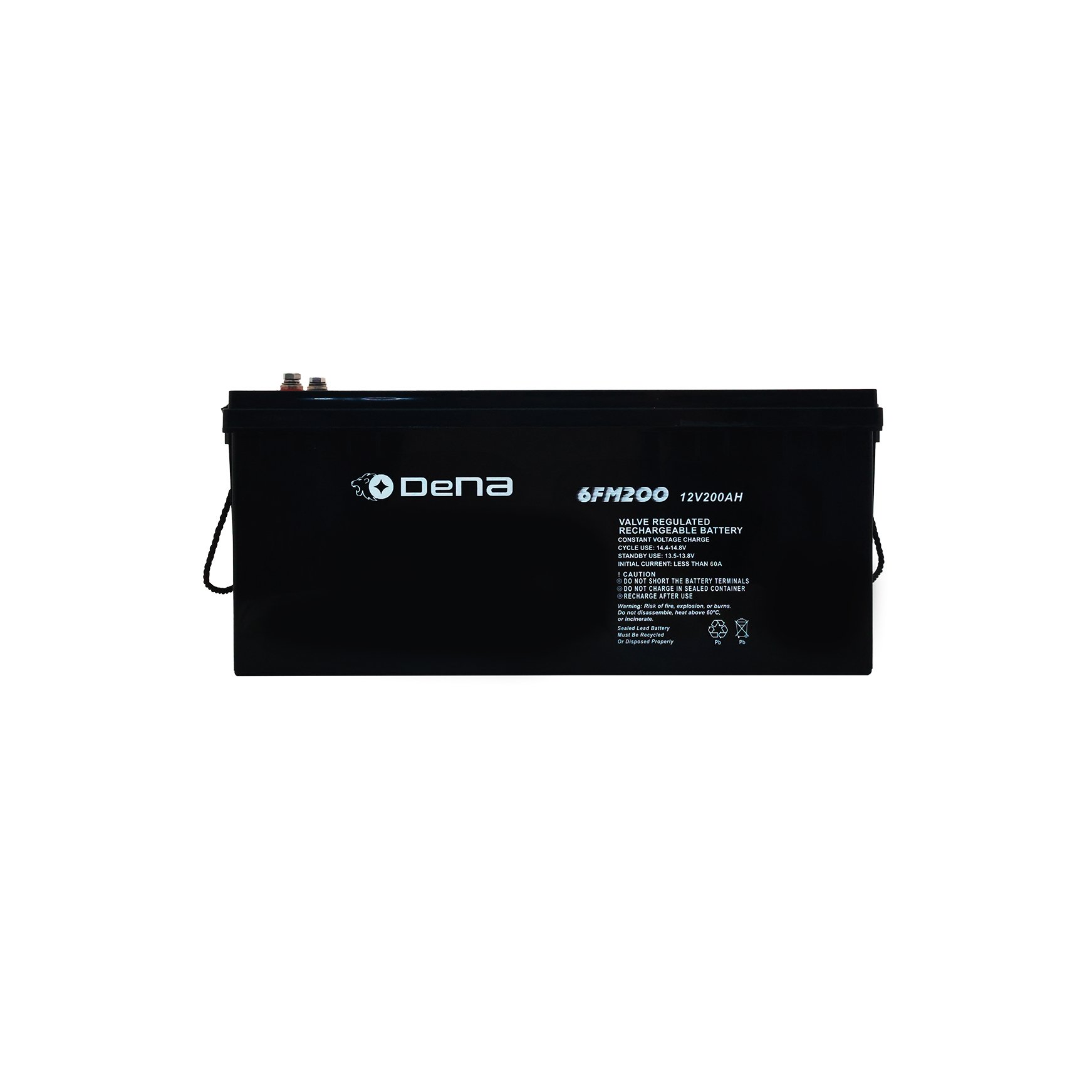

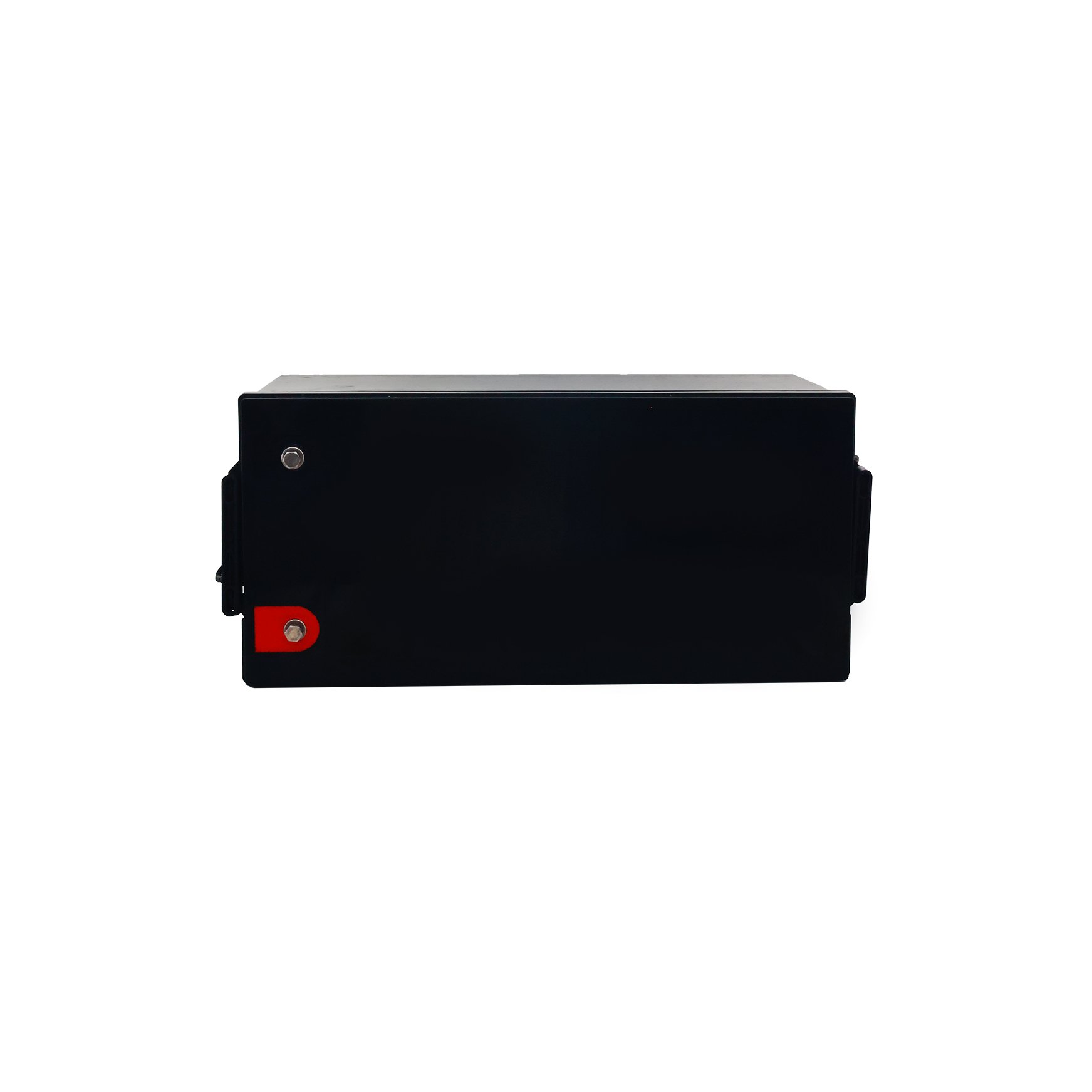

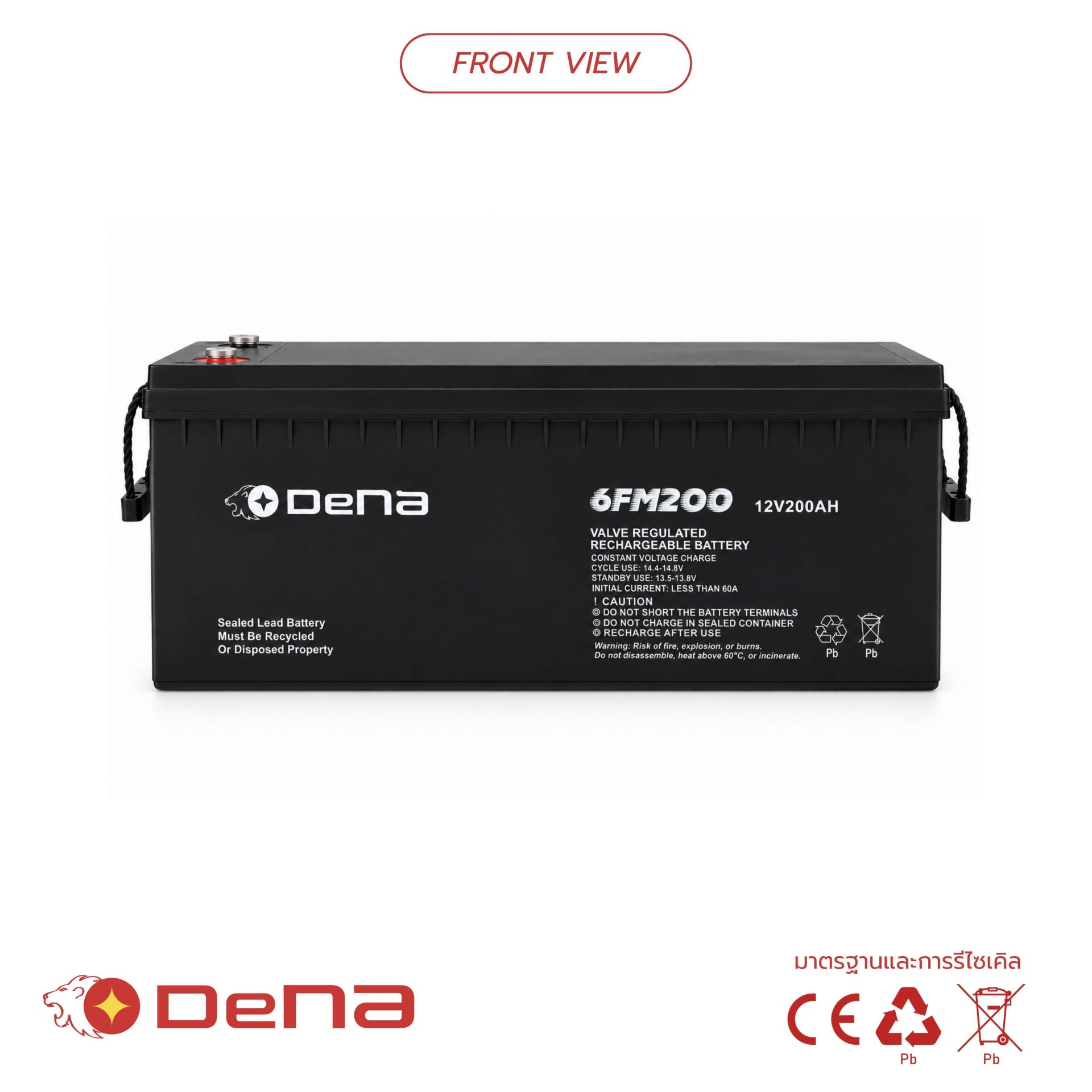

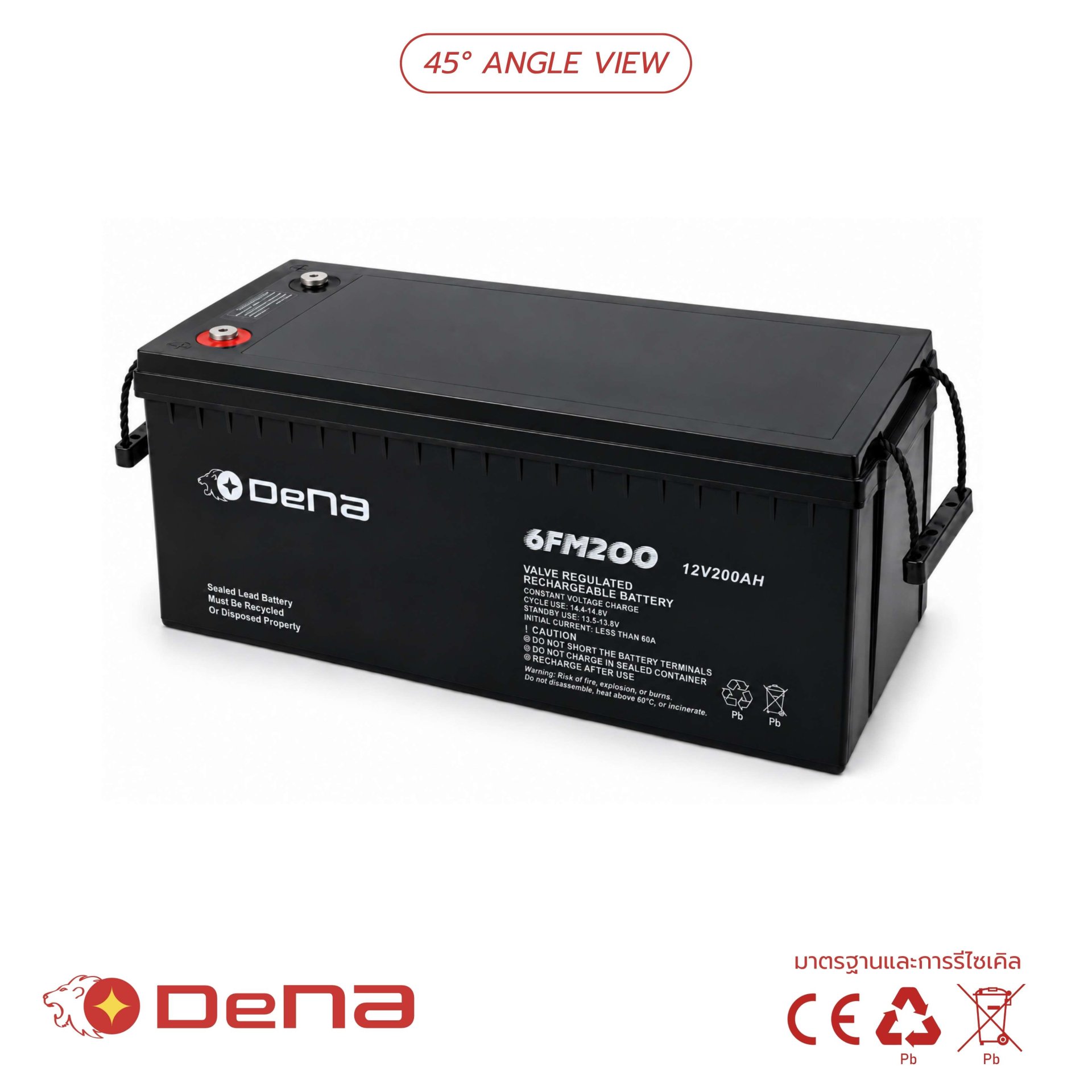

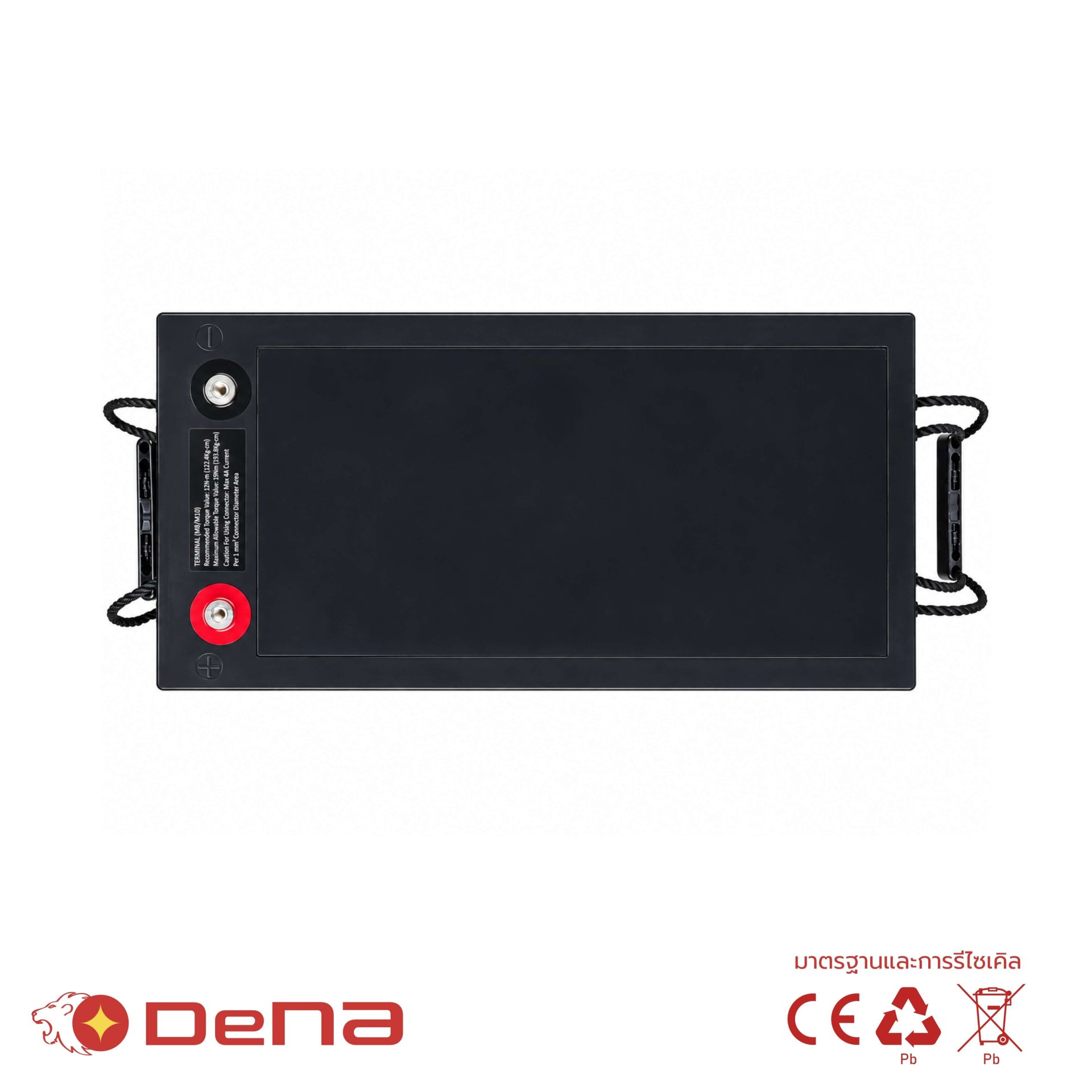

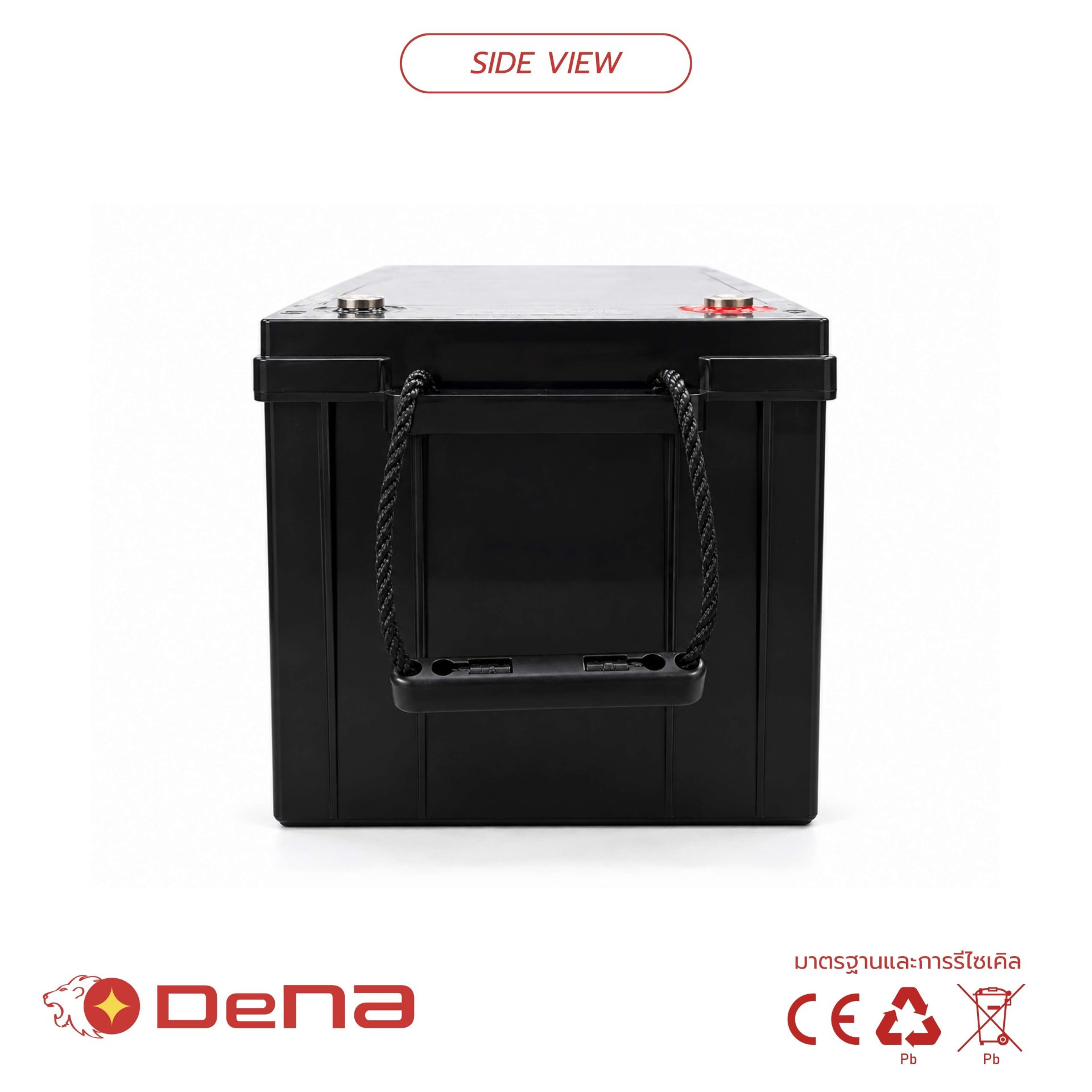

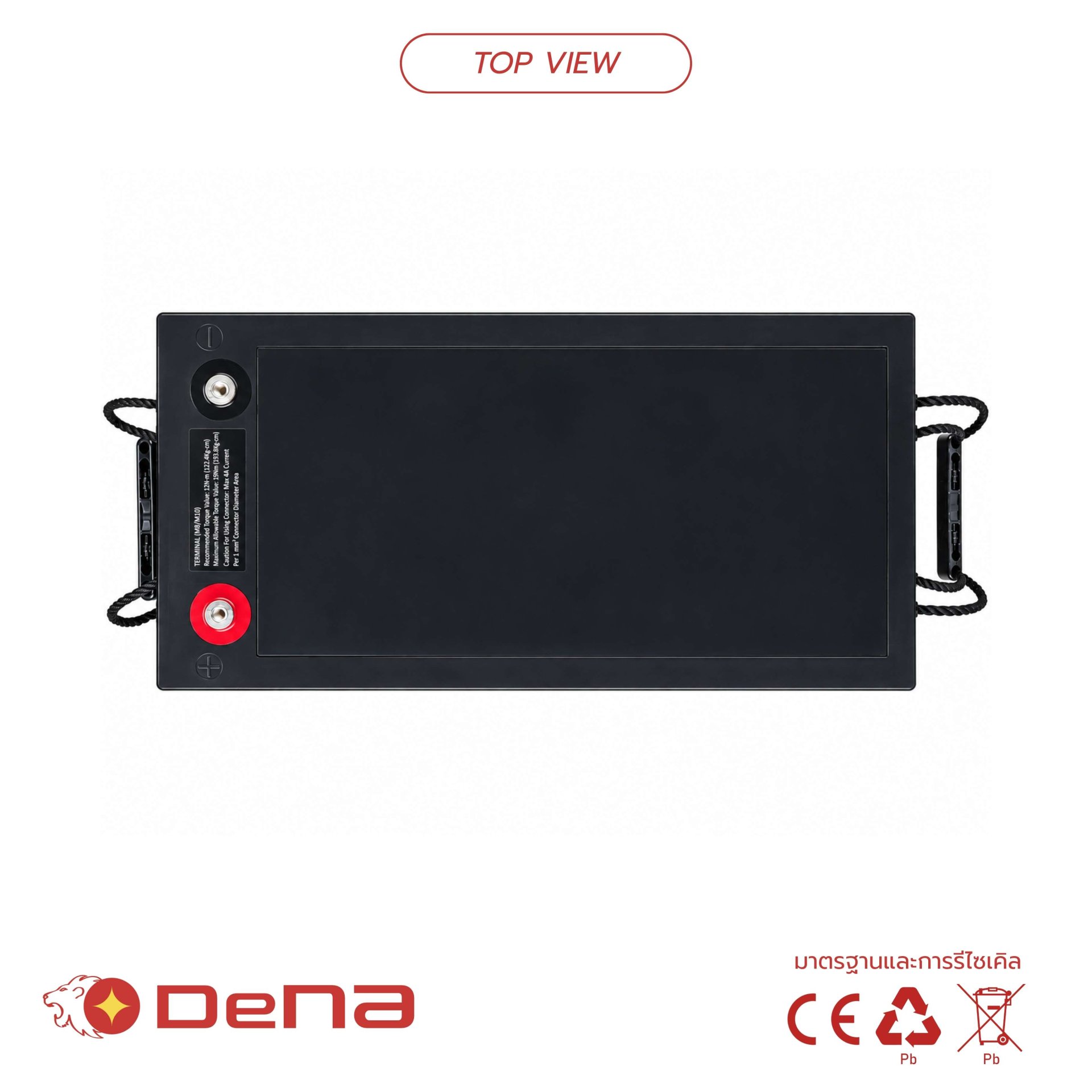

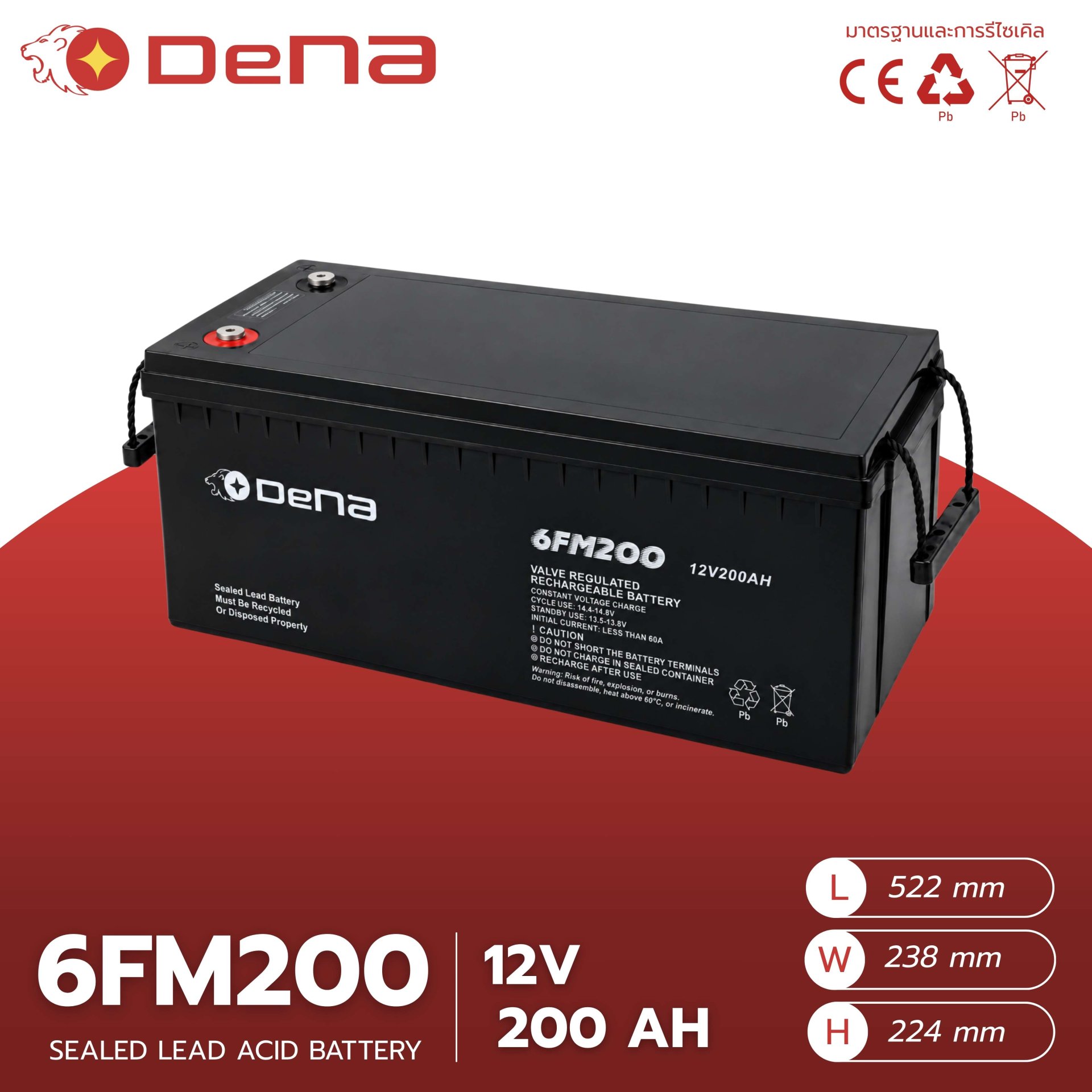

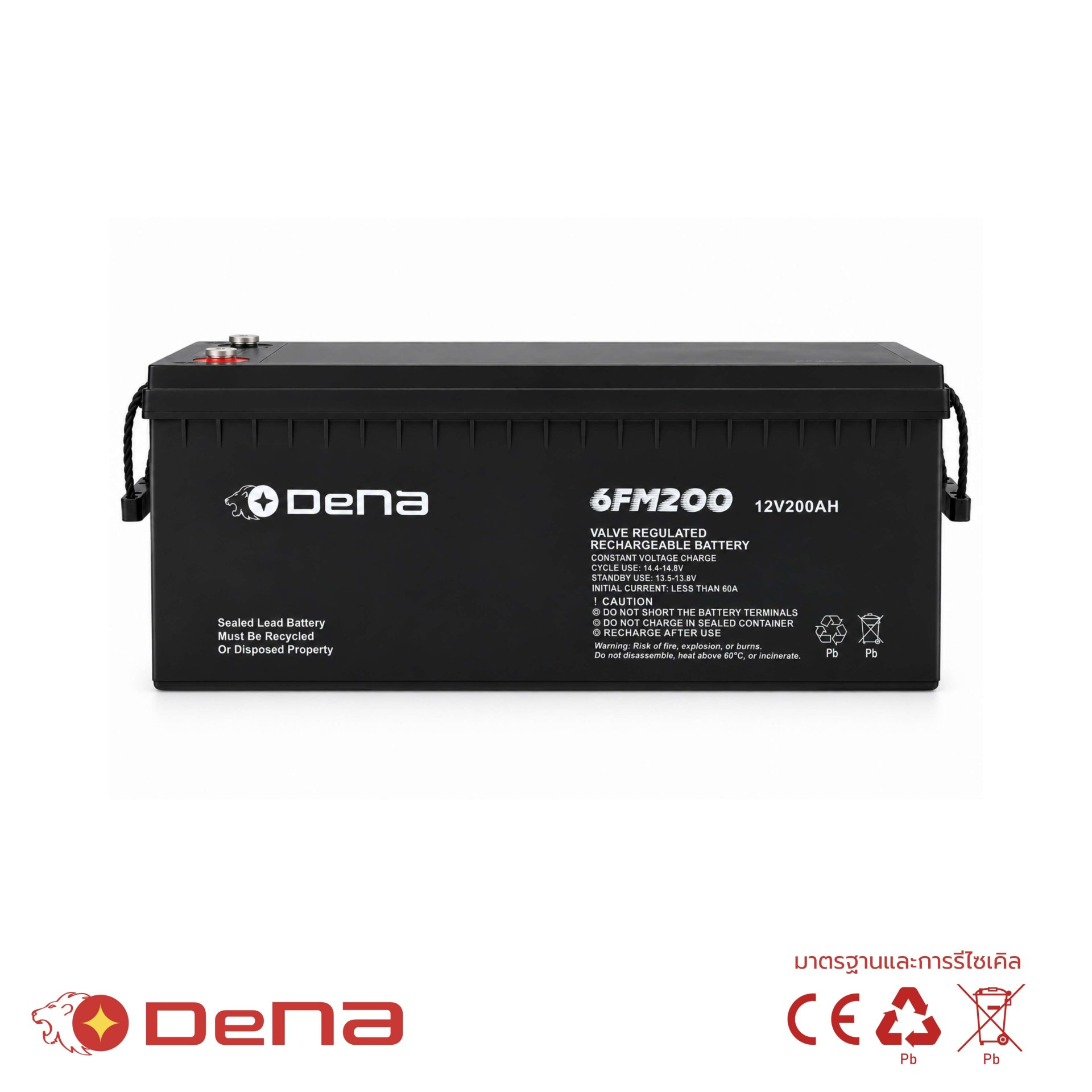

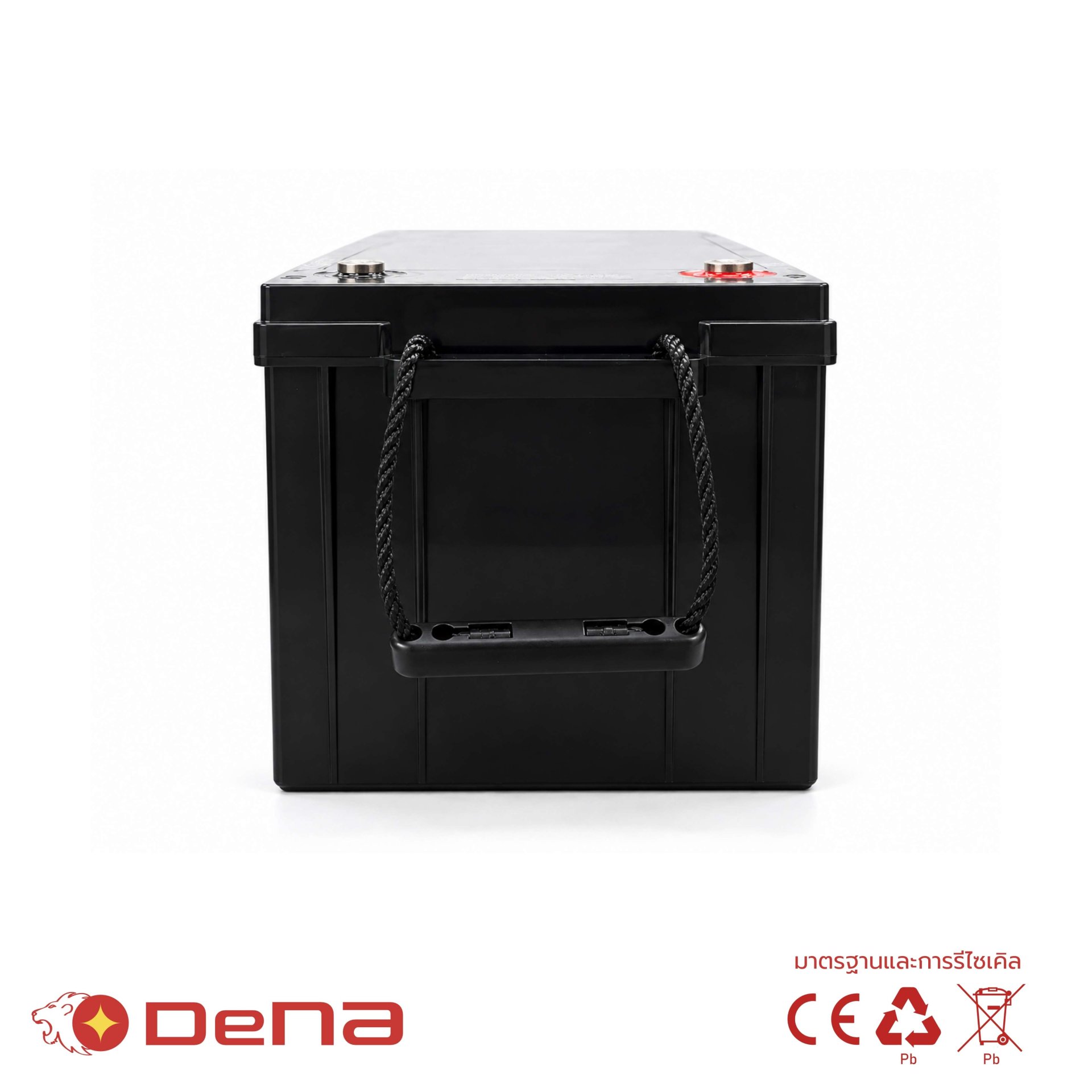

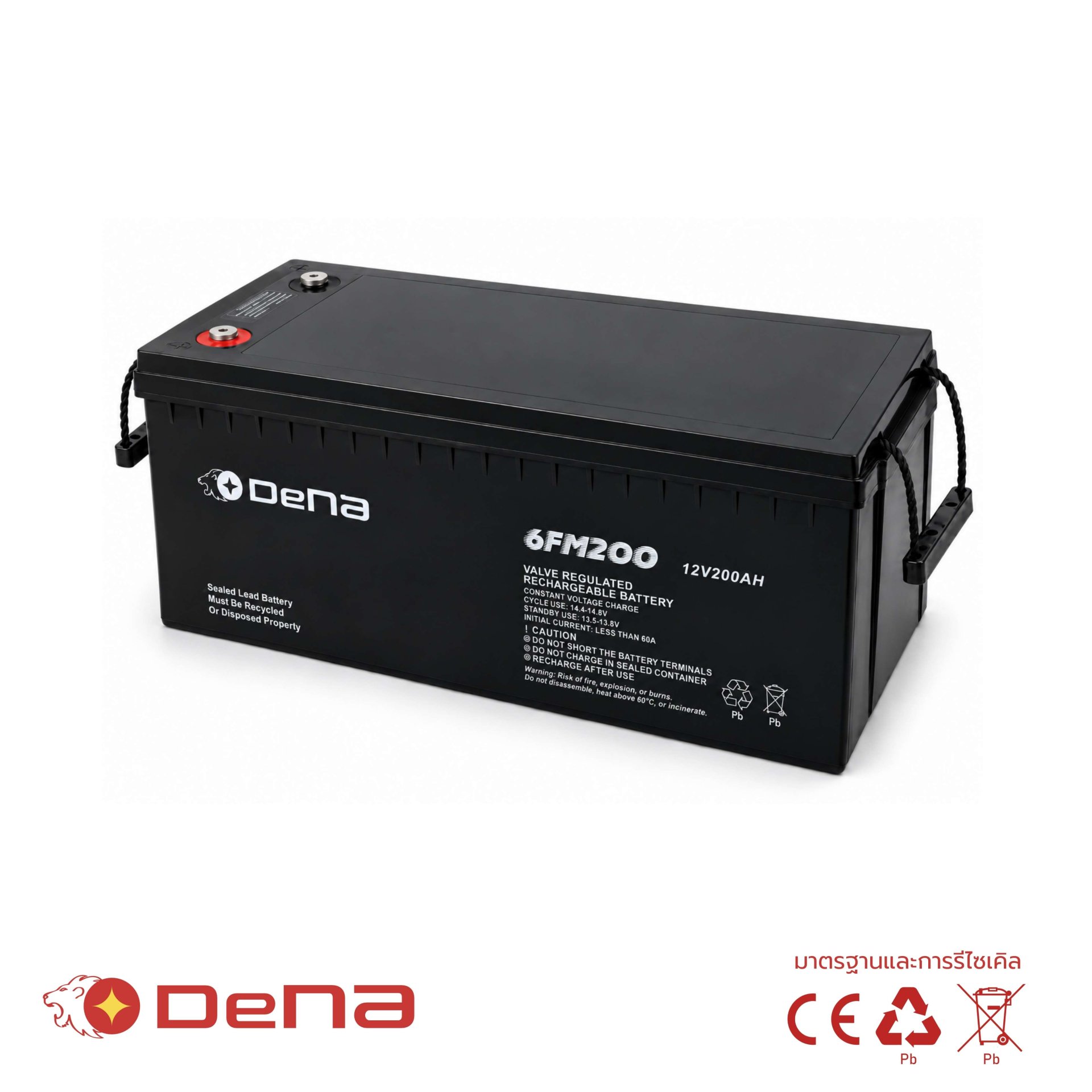

DeNA 6FM200
Attribute:
Voltage (V) : 12 Capacity 10hr (Ah): 200 Dimensions : 522 x 238 x 219 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 8-10 years |
| Nominal Capacity 77°F(25°C) 10 hour rate (20A, 10.8V) 5 hour rate (34A, 10.2V) 1 hour rate (120A, 9.6V) | 200Ah 170Ah 120Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | 3mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 1,600A(5s) |
| Short Circuit Current | 3,300A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8V 60A -30mV/°C 13.5-13.8V -20mV/°C |

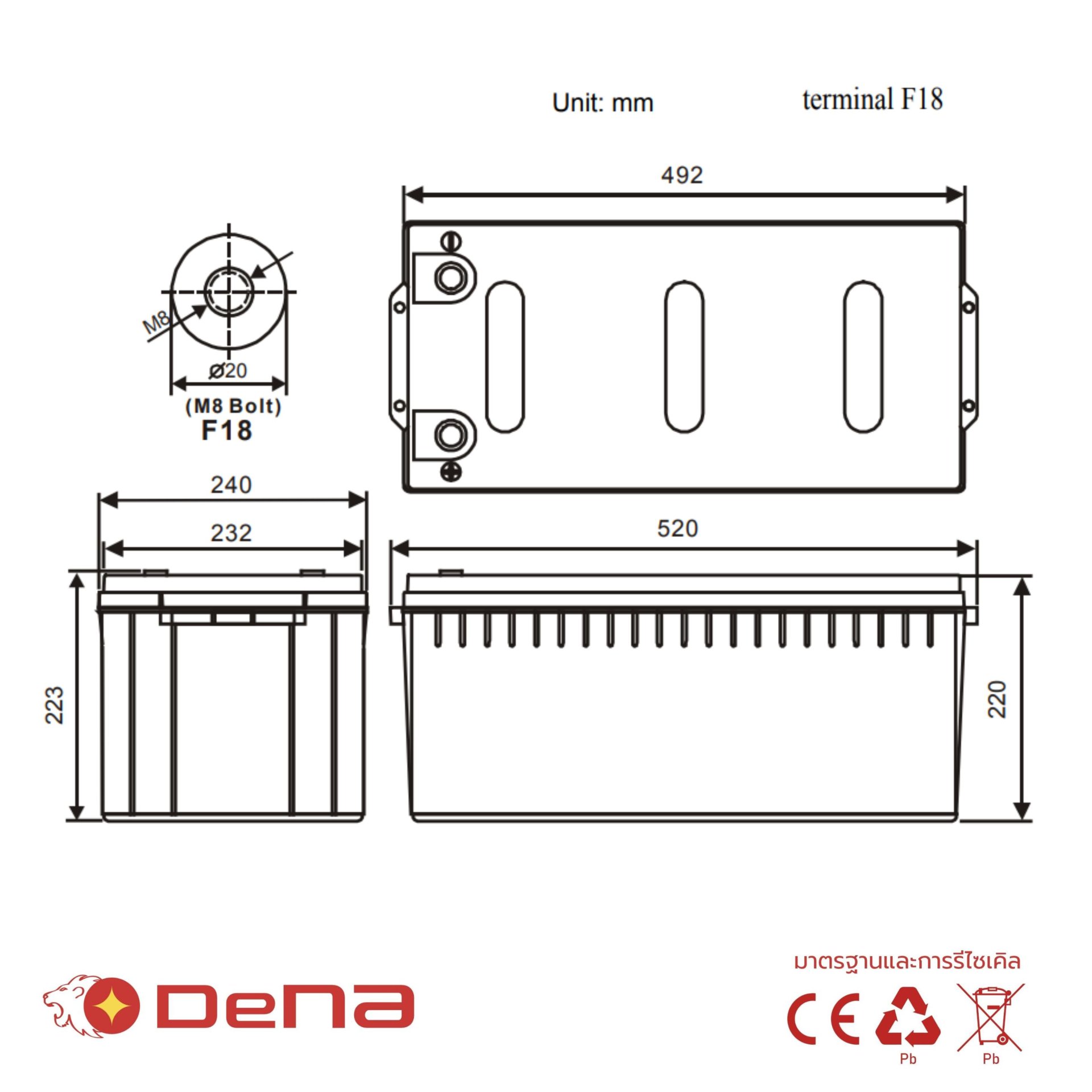

| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 522 / 20.55 238 / 9.37 219 / 8.62 224 / 8.82 66.5 / 146 |
