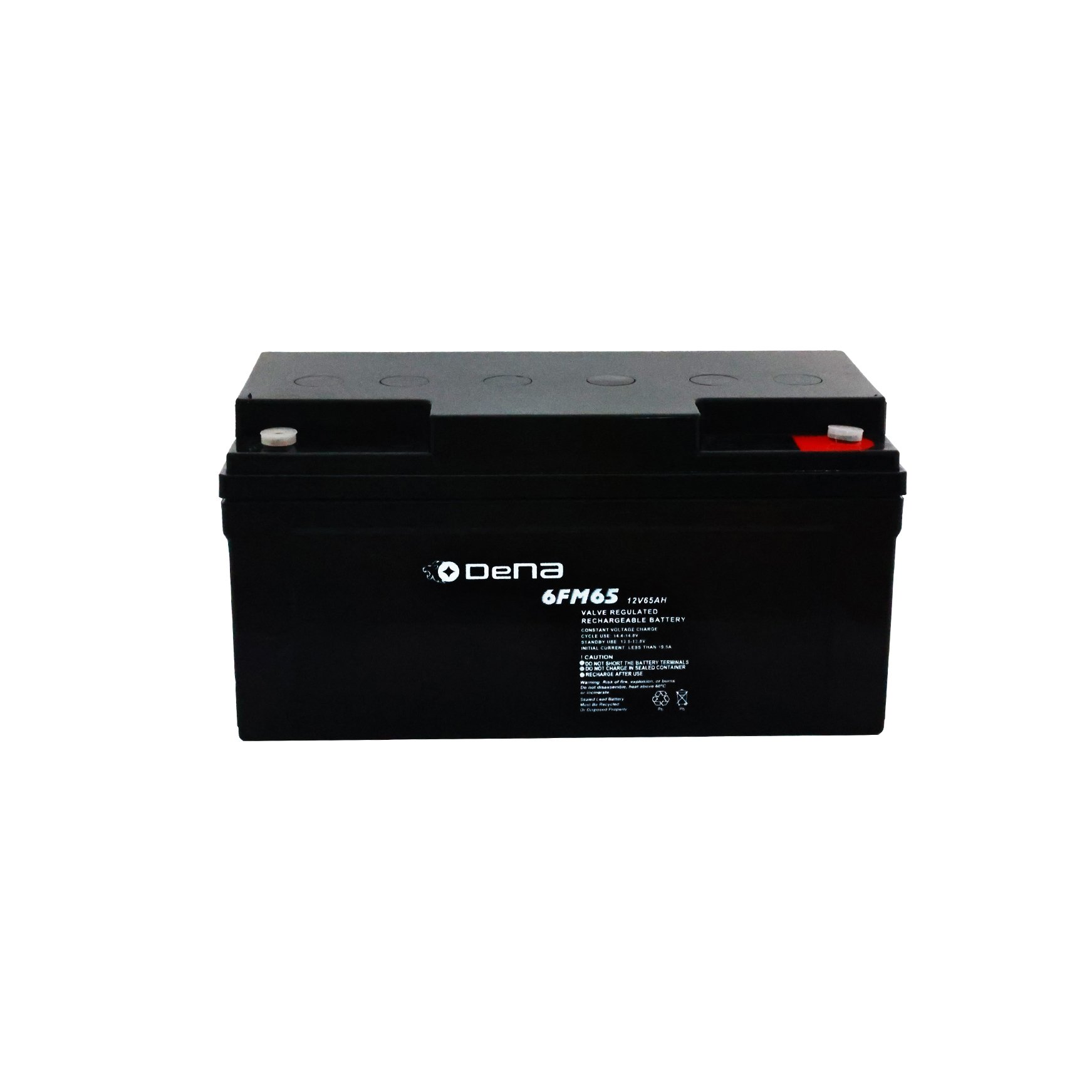

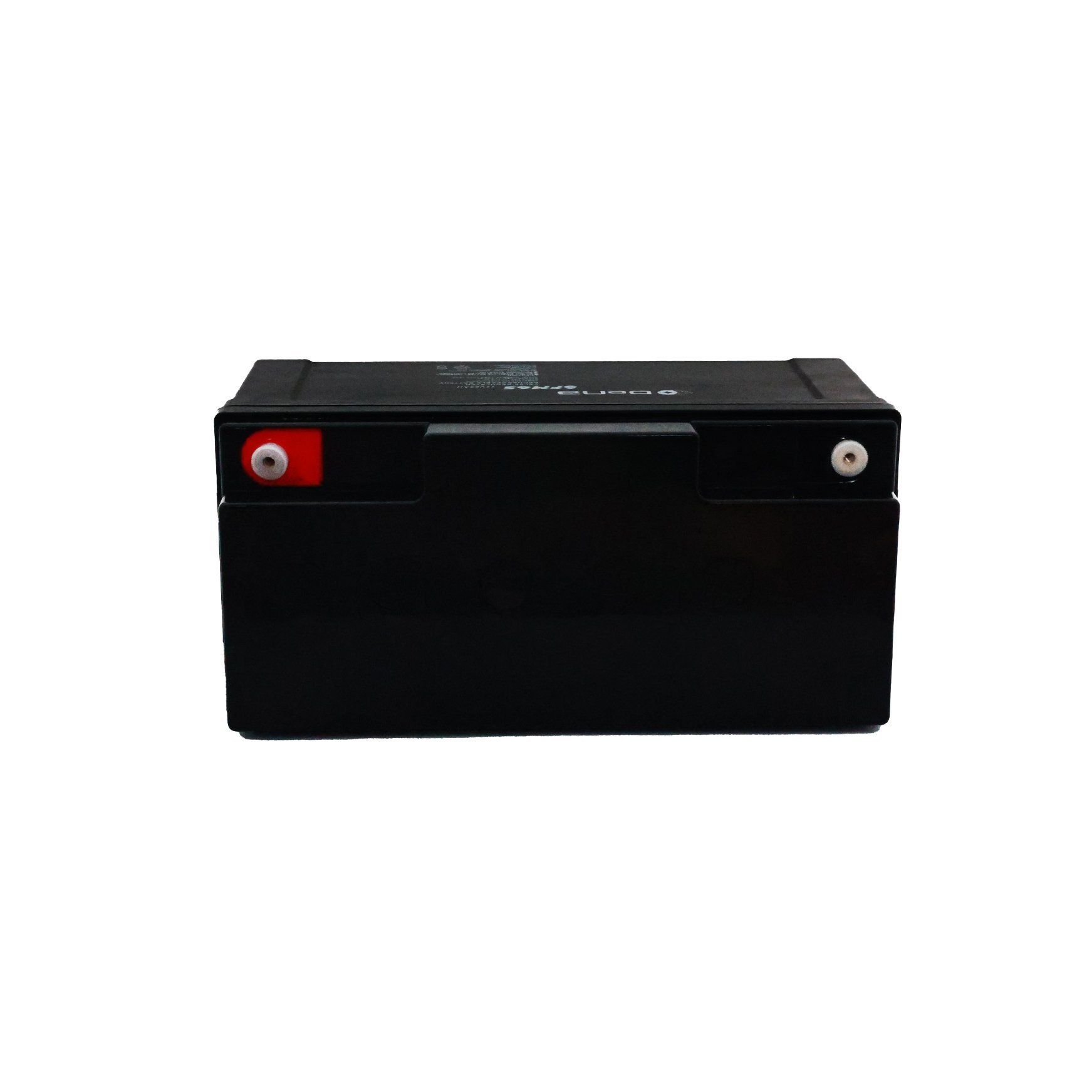

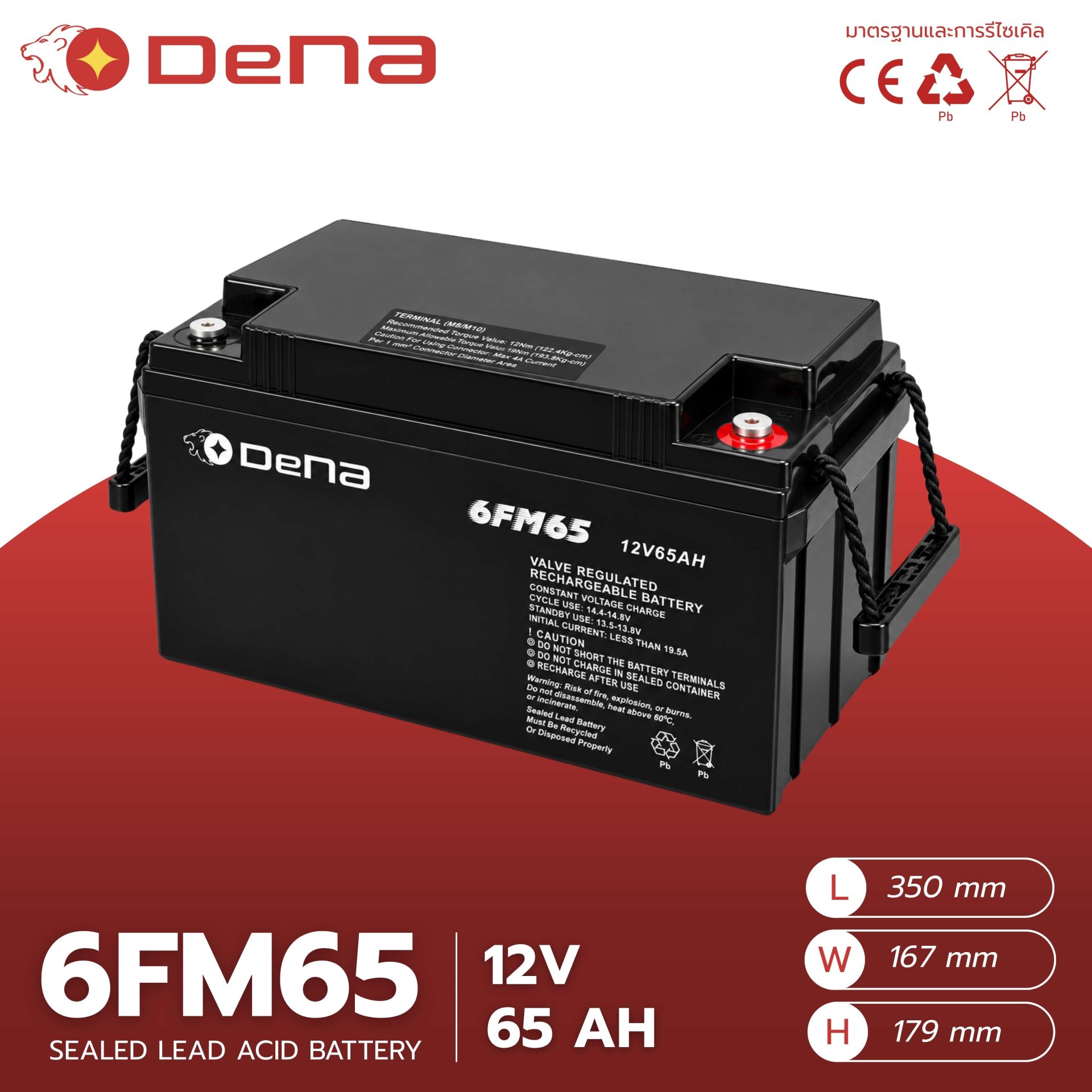

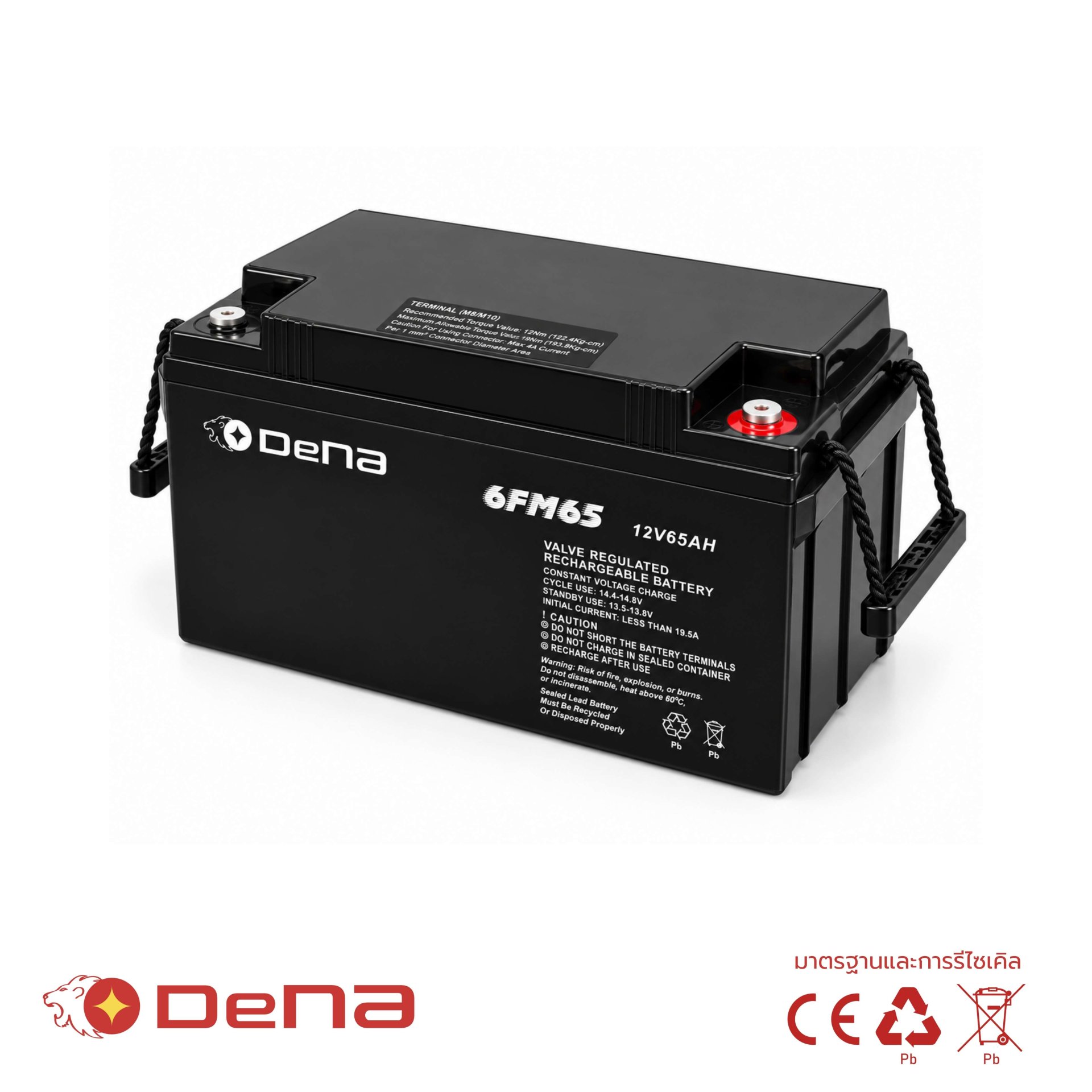

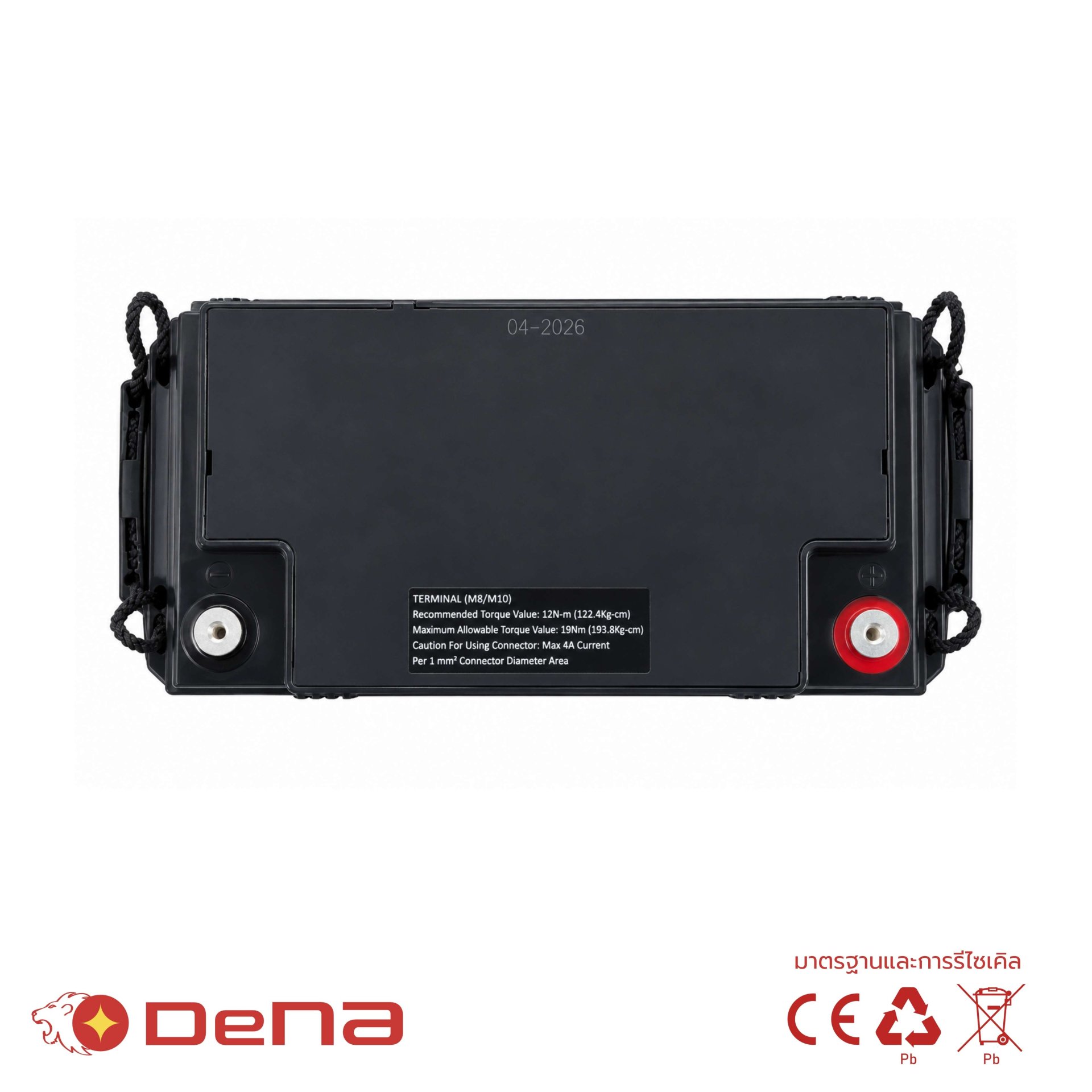

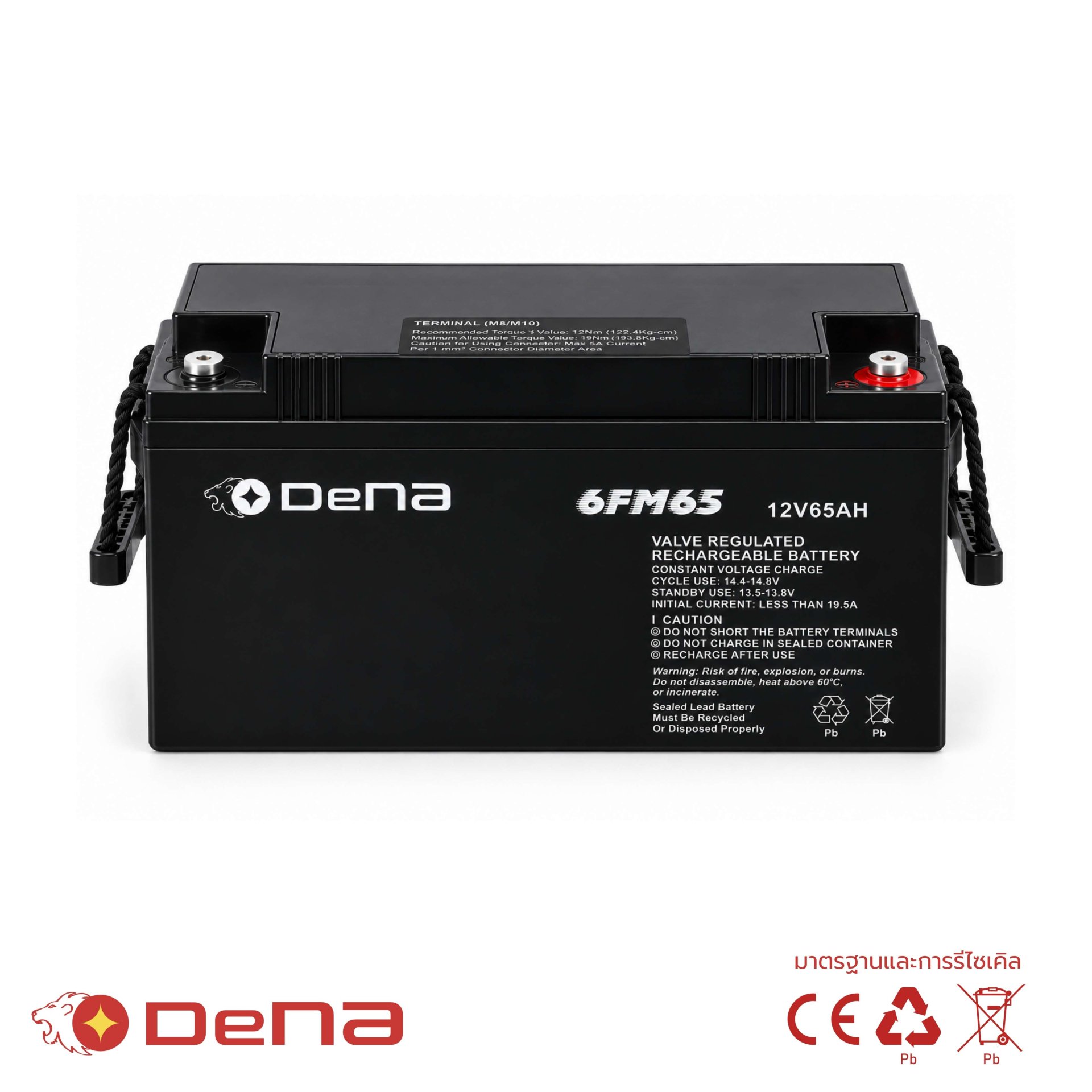

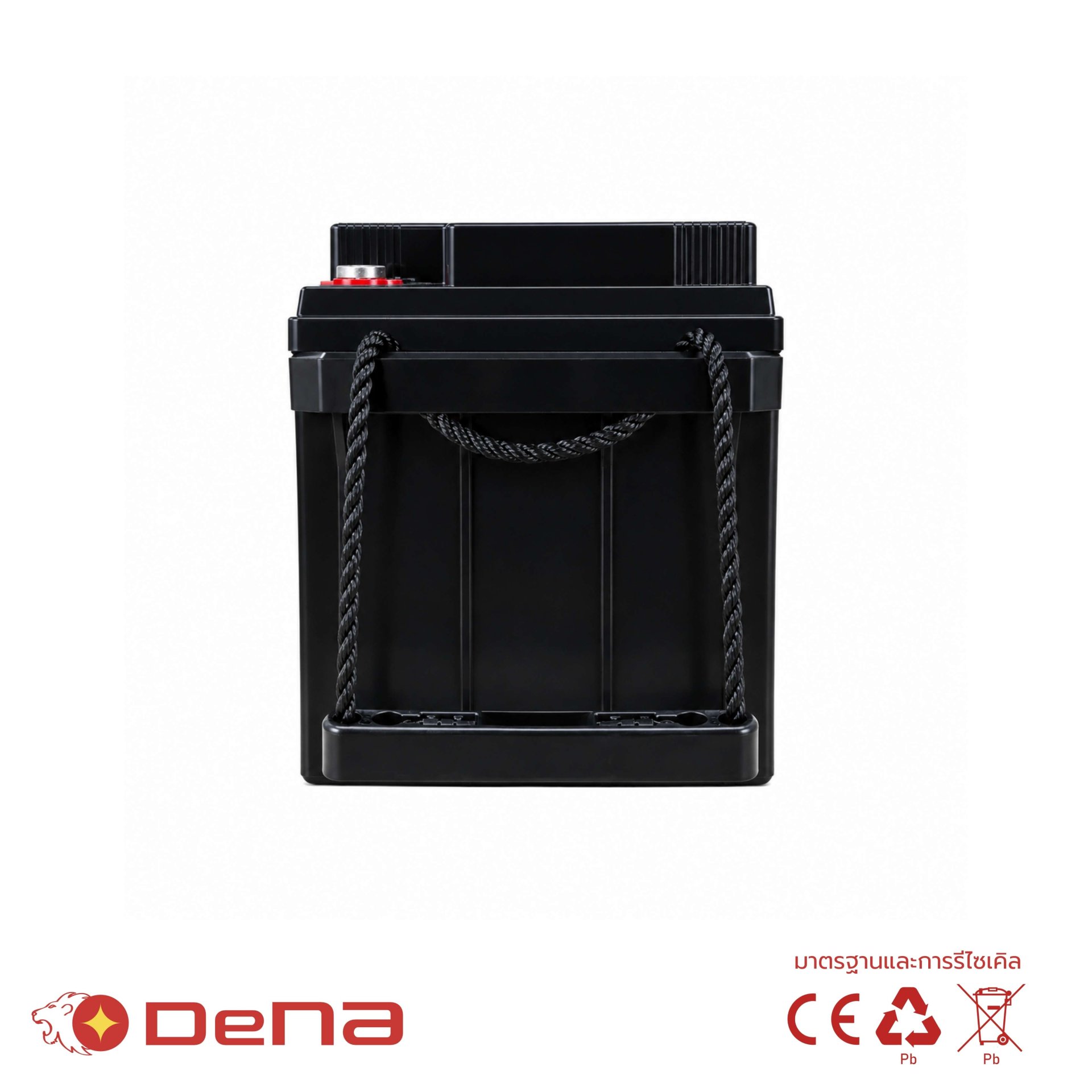

DeNA 6FM65
Attribute:
Voltage (V) : 12 Capacity 20hr (Ah): 65 Dimensions : 350 x 167 x 179 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 8-10 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (3.25A, 10.5V) 10 hour rate (6.175A, 10.5V) 5 hour rate (11.05A, 10.2V) 1 hour rate (65A, 9.6V) | 65Ah 61.75Ah 55.25Ah 41.17Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | 7mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 780A(5s) |
| Short Circuit Current | 1400A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8V 19.5A -30mV/°C 13.5-13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 350 / 13.78 167 / 6.57 179 / 7.05 179 / 7.05 20.9 / 45.98 |
