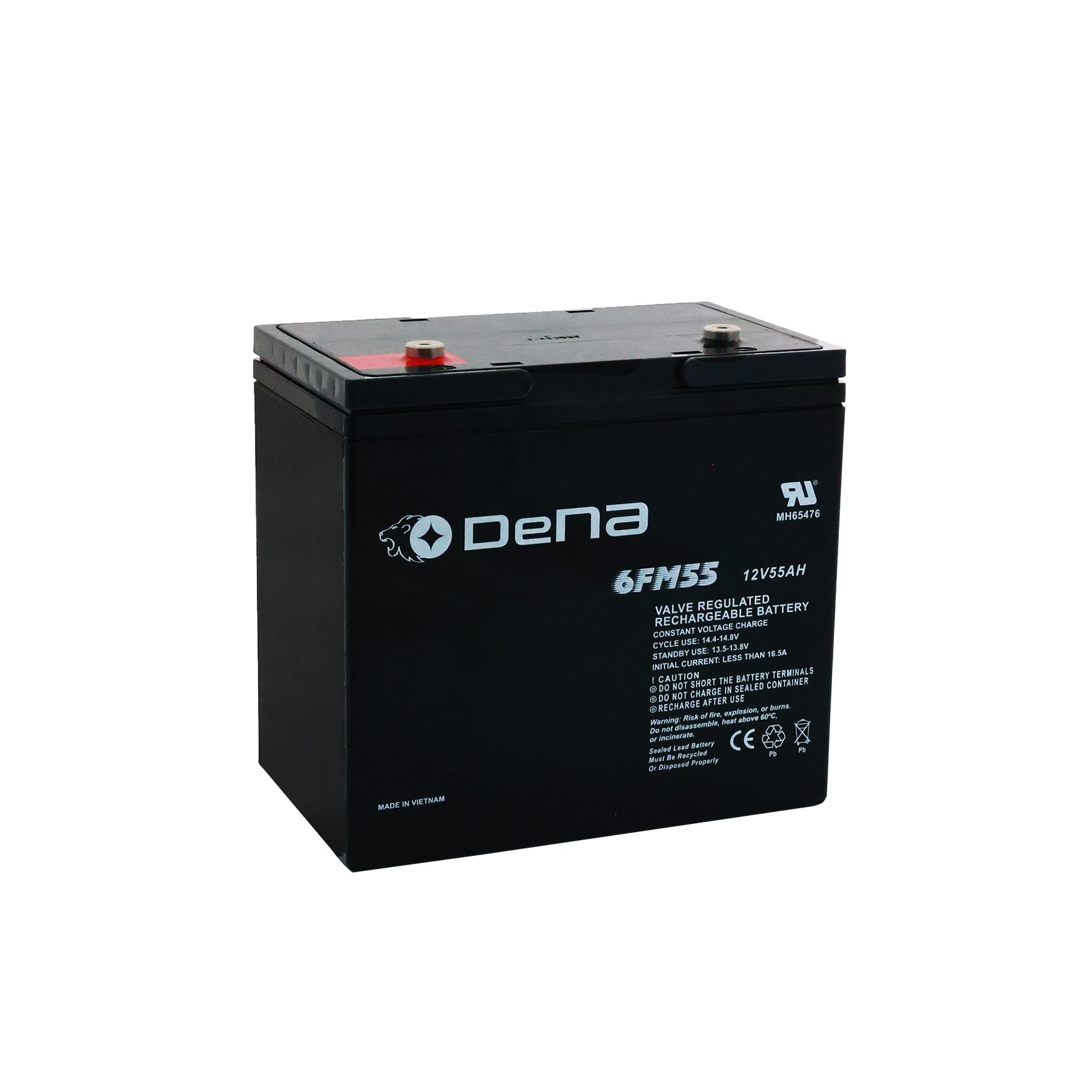

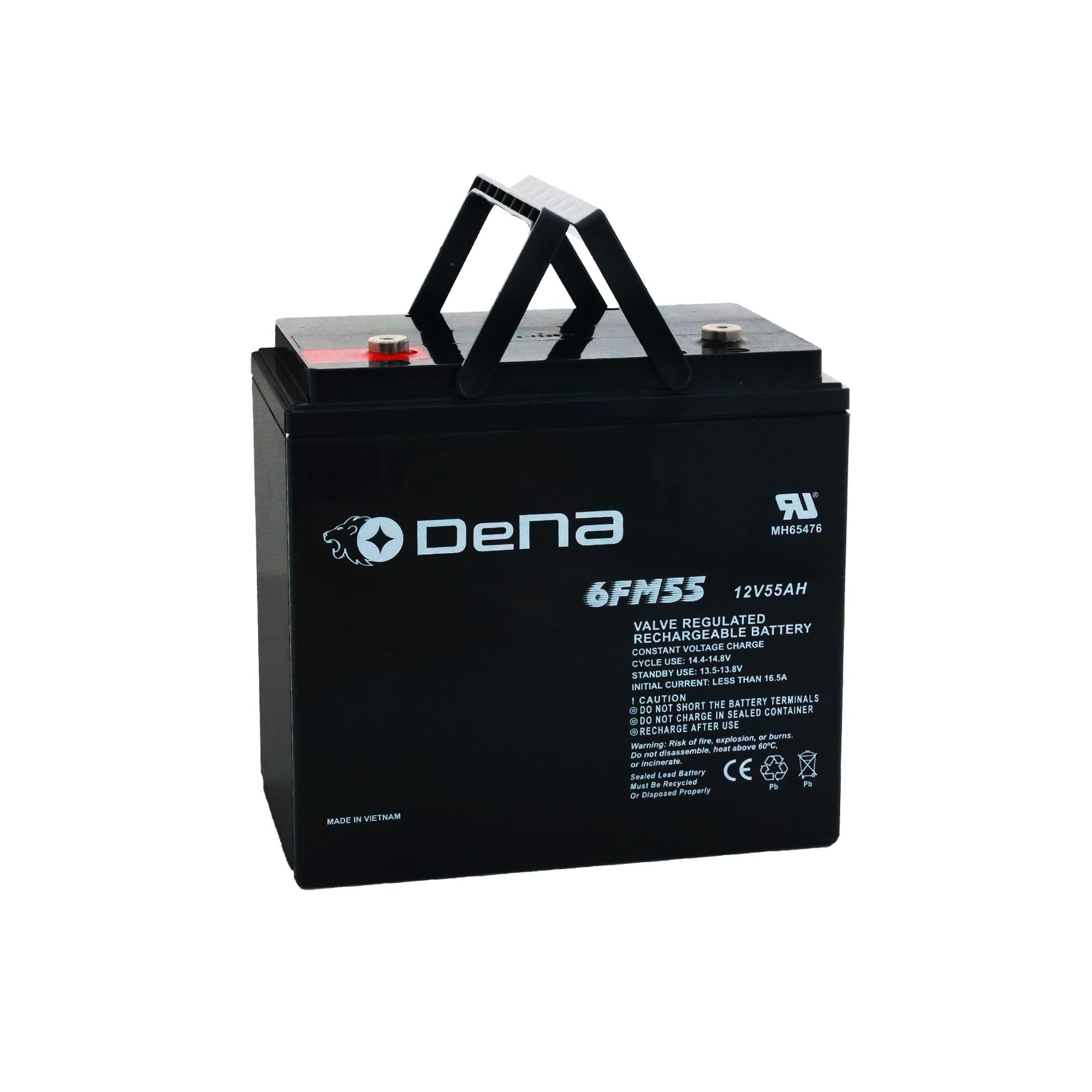

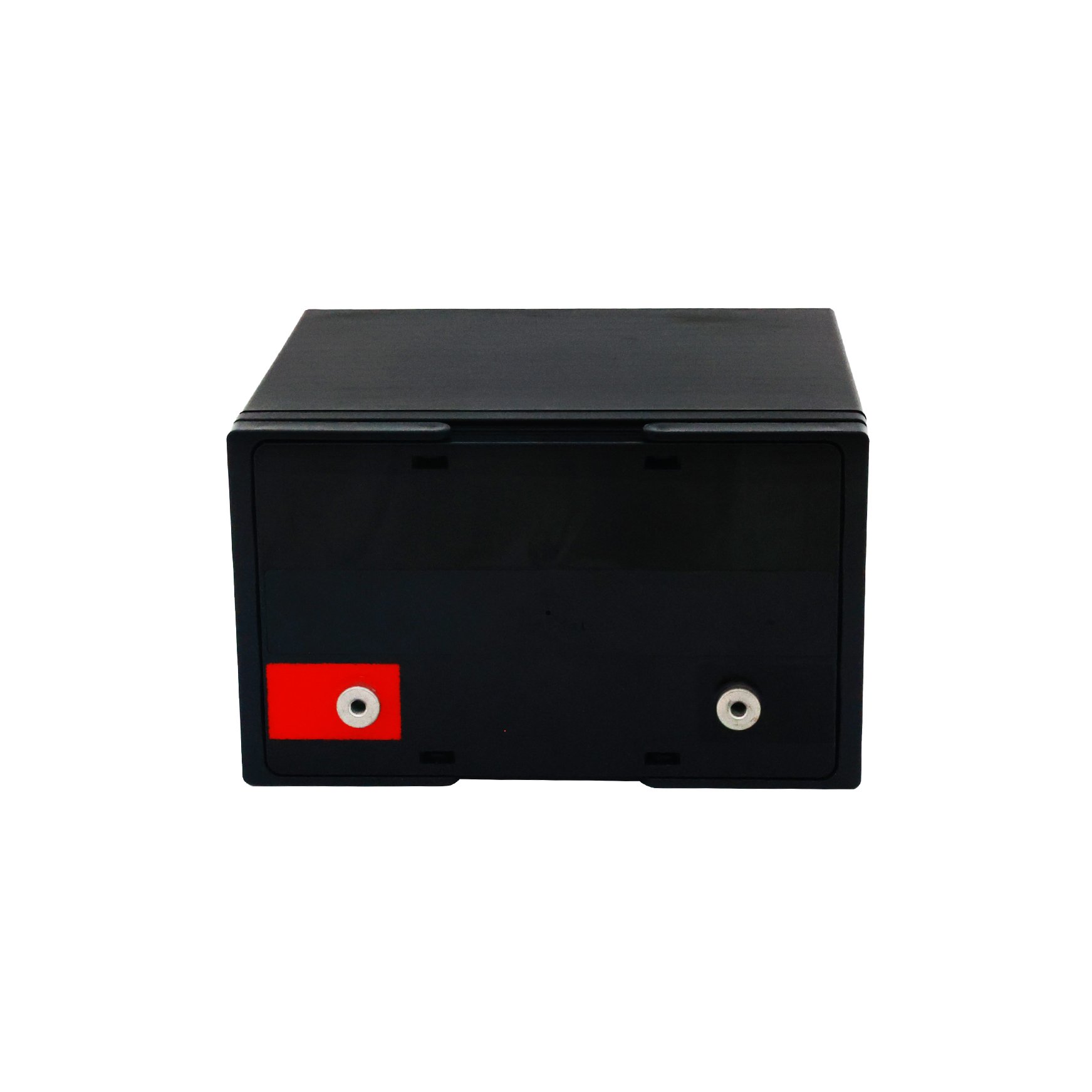

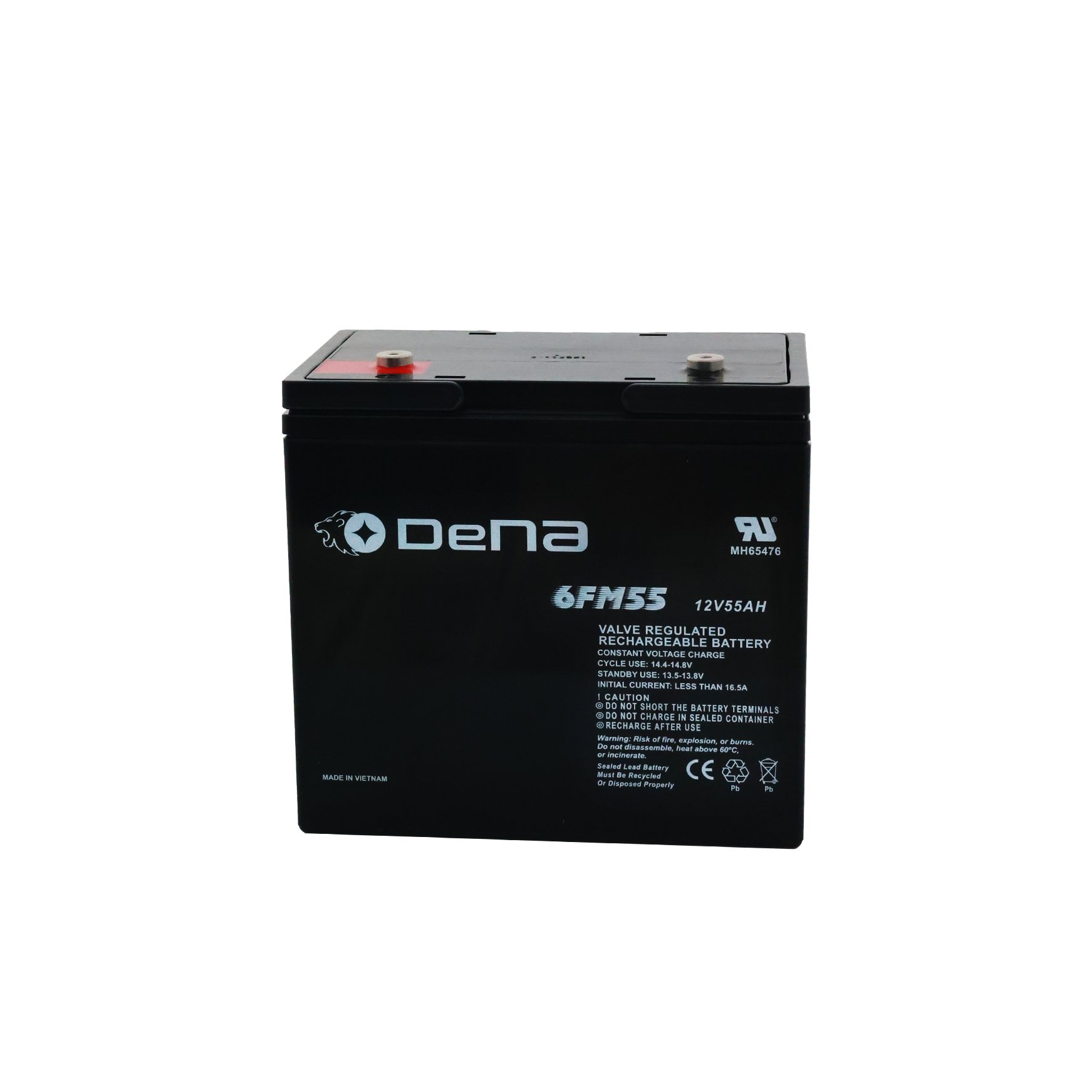

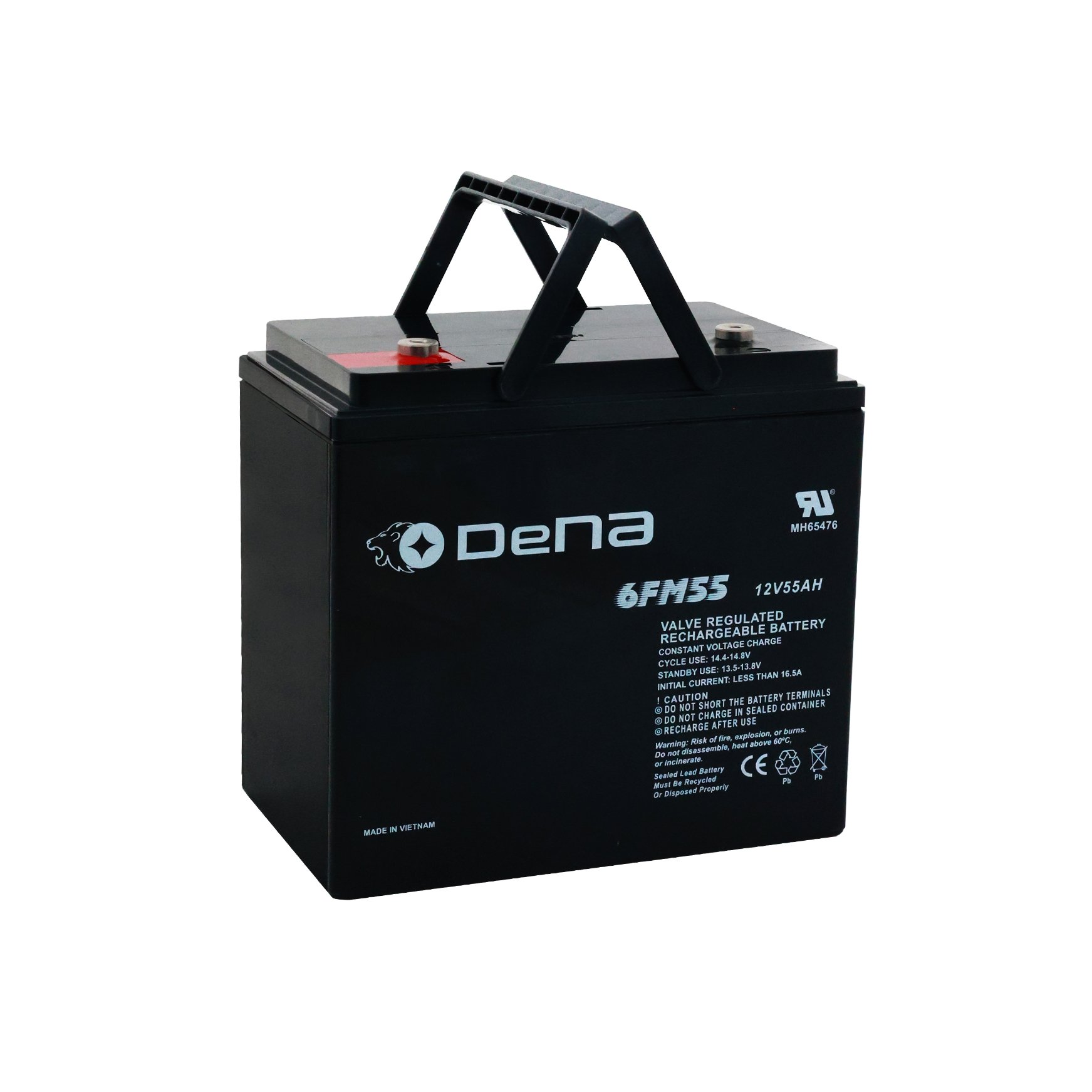

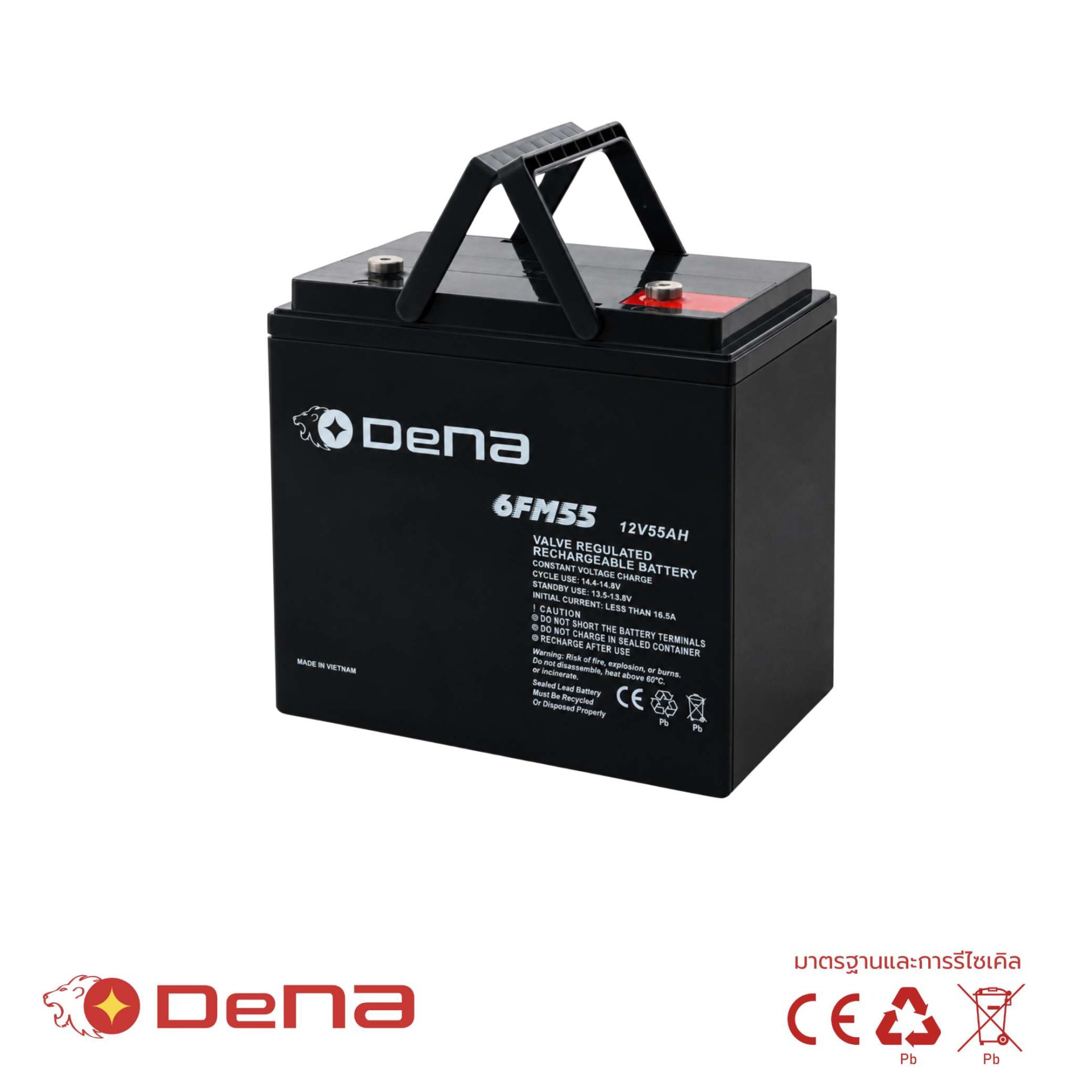

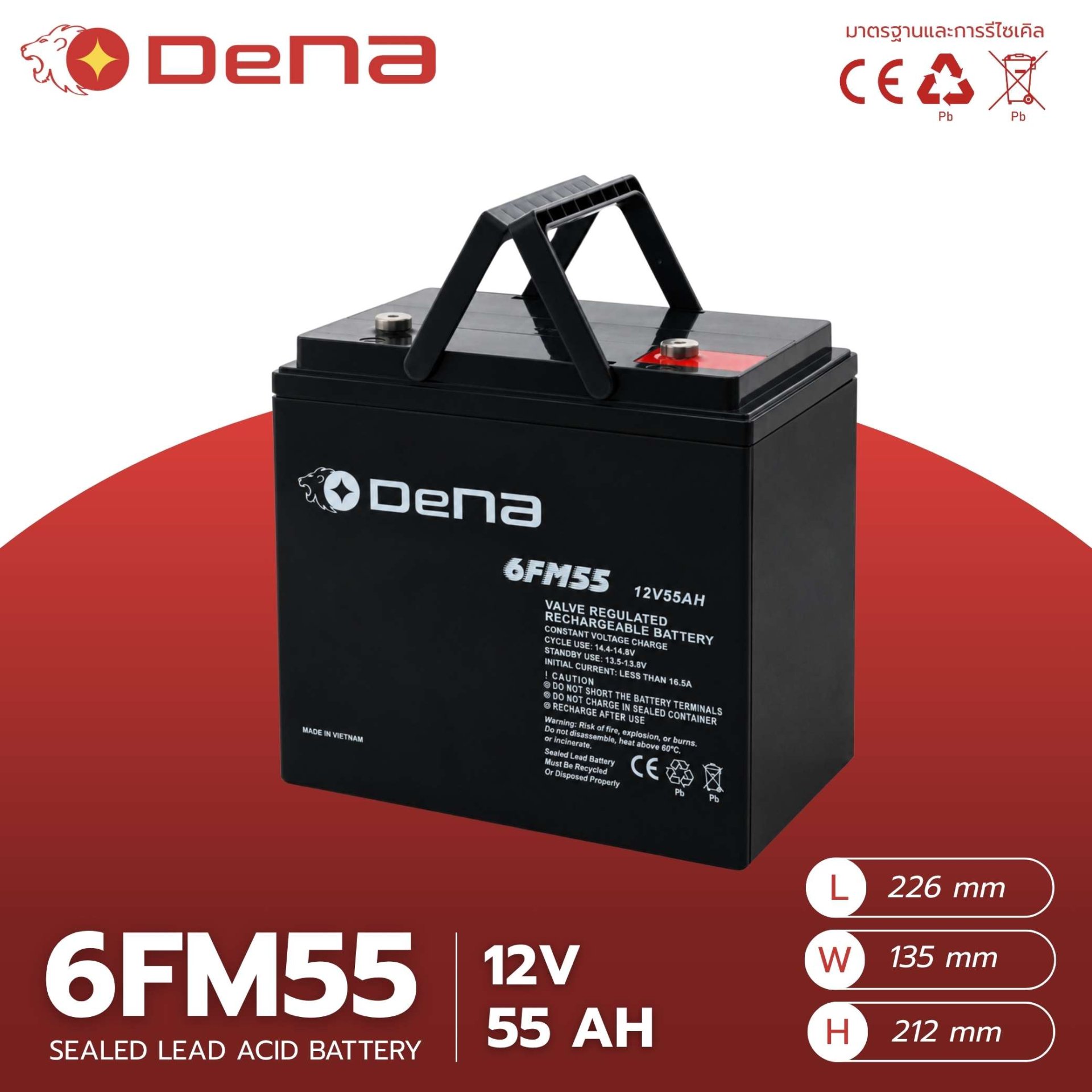

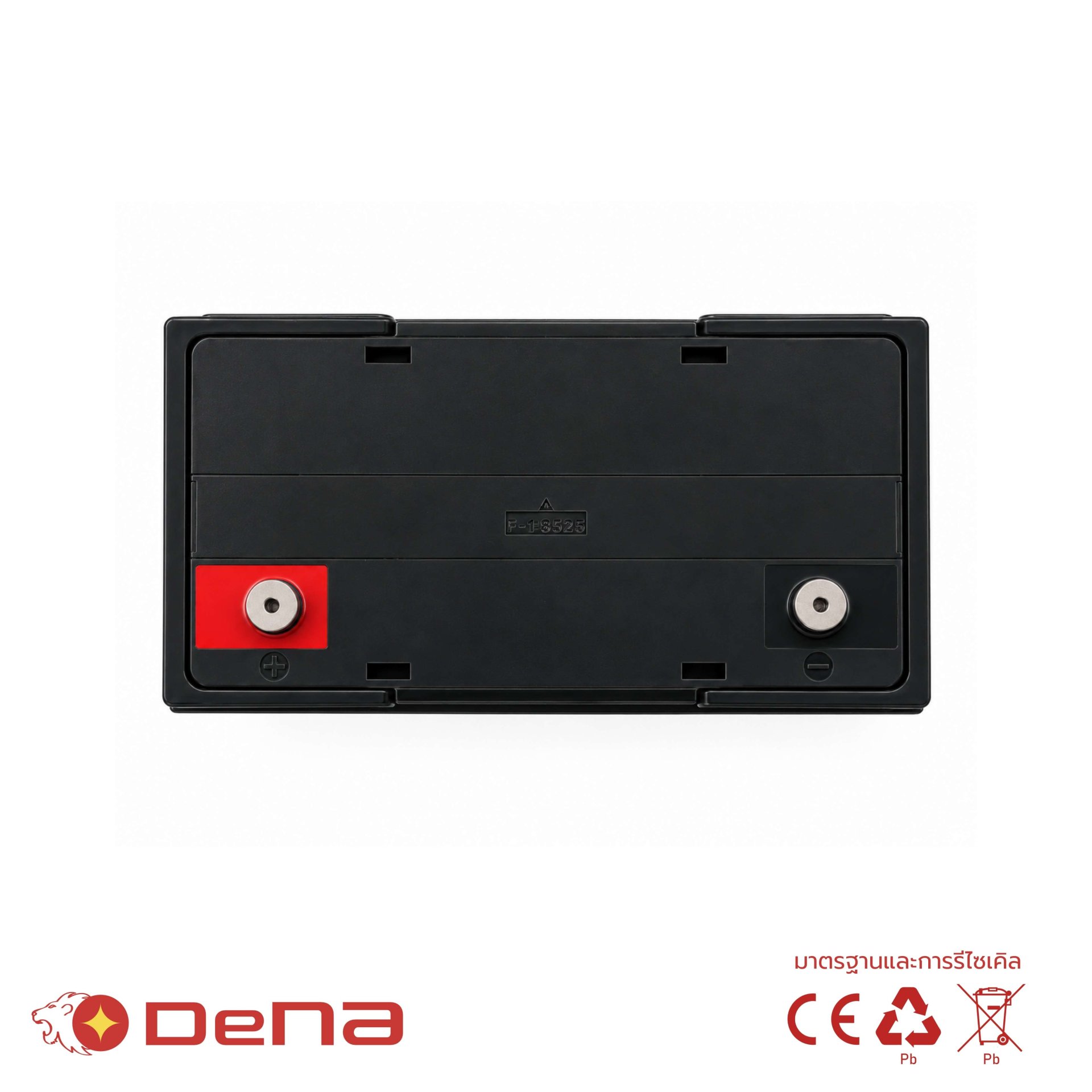

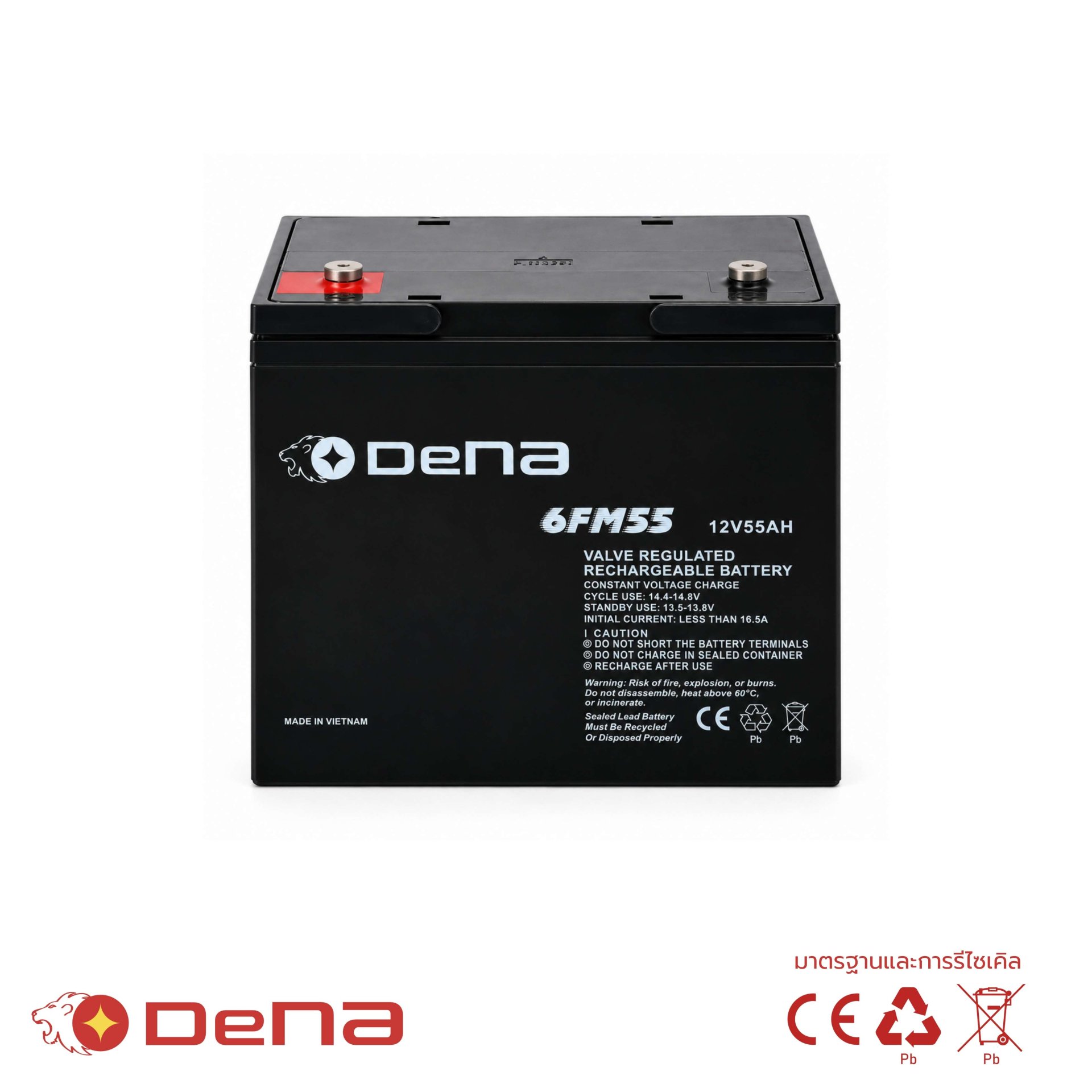

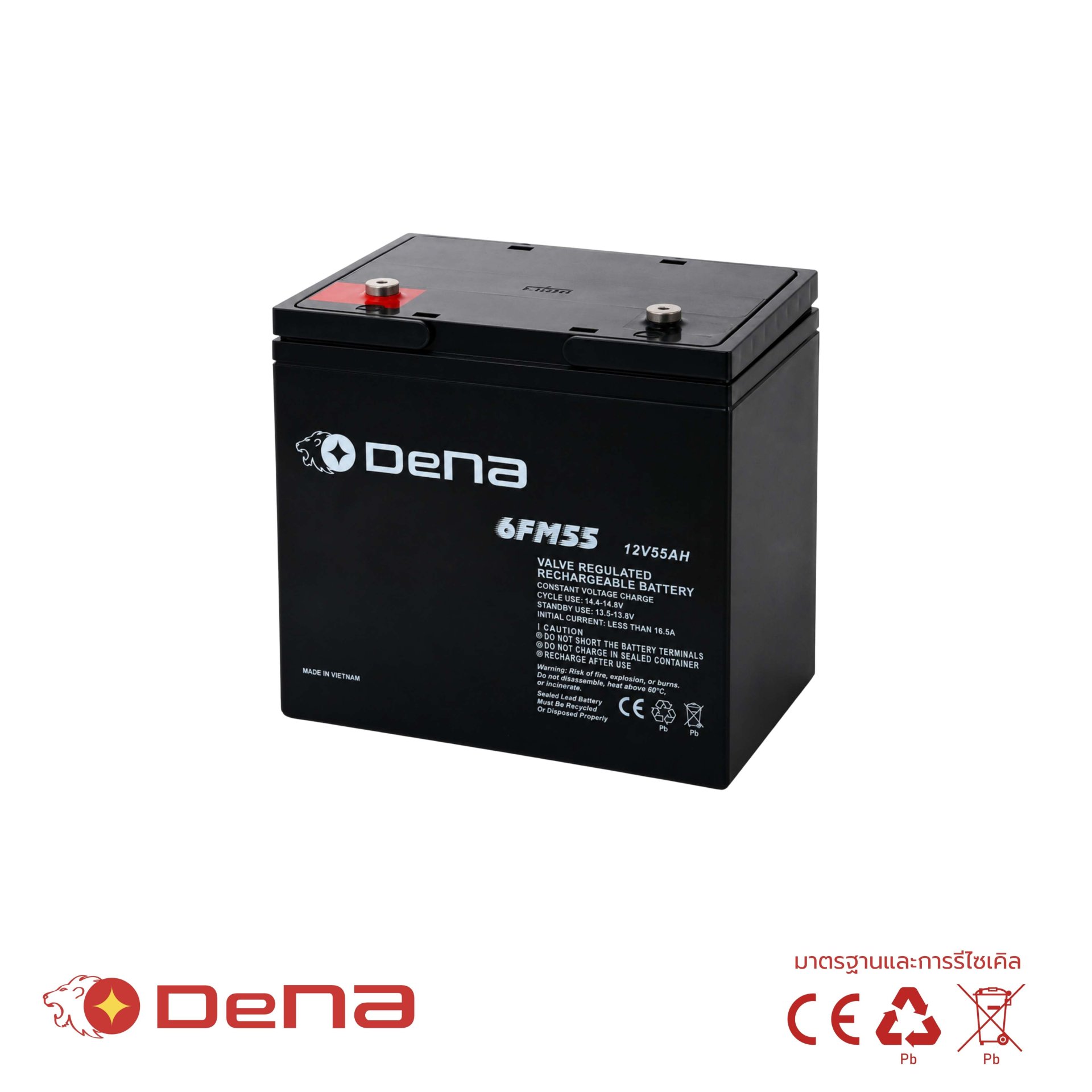

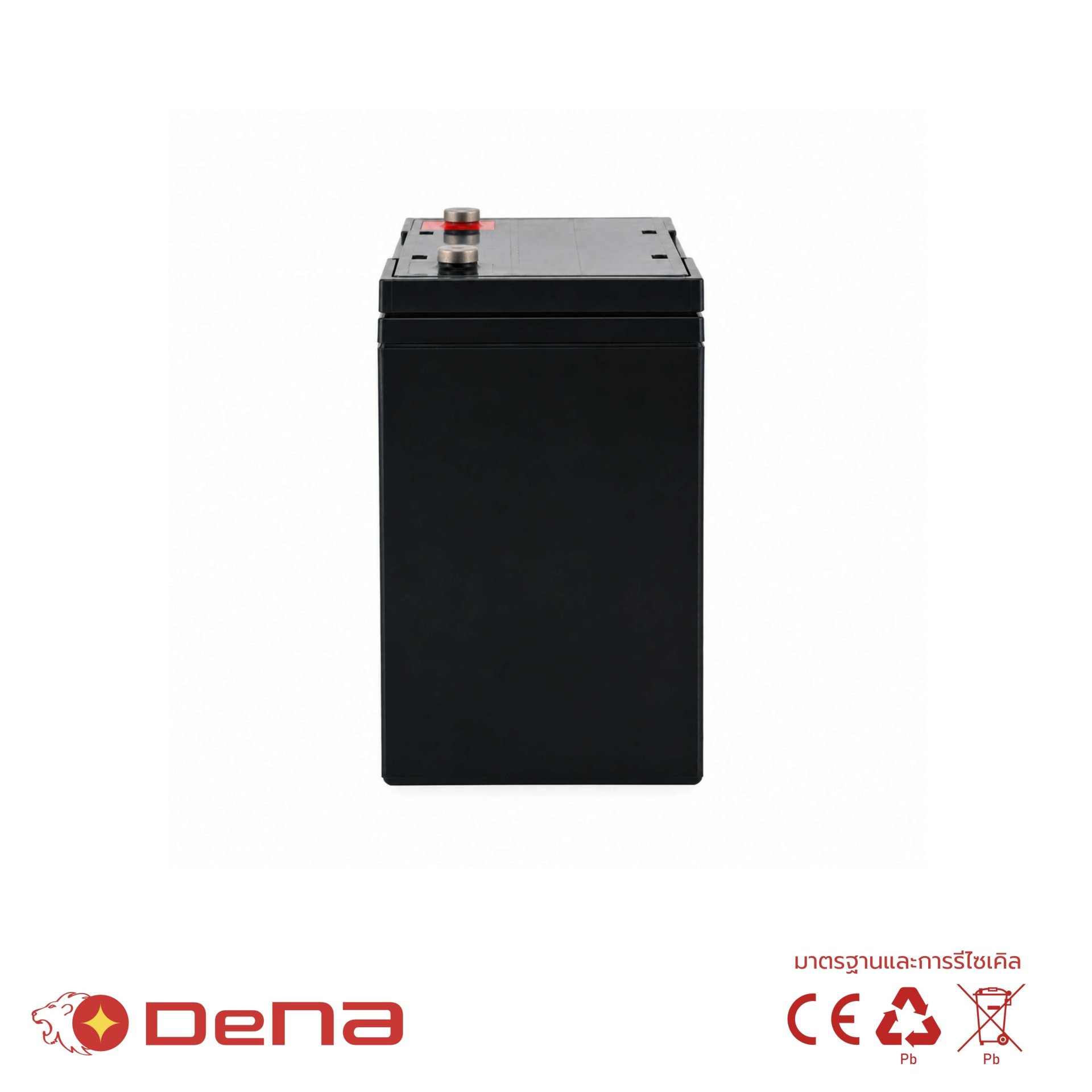

DeNA 6FM55
Attribute:
Voltage (V) : 12 Capacity 20hr (Ah): 55 Dimensions : 226 x 135 x 208 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 8-10 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (2.75A, 10.5V) 10 hour rate (5.225A, 10.5V) 5 hour rate (9.35A, 10.2V) 1 hour rate (55A, 9.6V) | 55Ah 52.25Ah 46.75Ah 31.17Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | ≤8mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 660A(5s) |
| Short Circuit Current | 1400A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8V 16.5A -30mV/°C 13.5-13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 226 / 8.90 135 / 5.31 208 / 8.18 212 / 8.34 17.0 / 37.4 |
