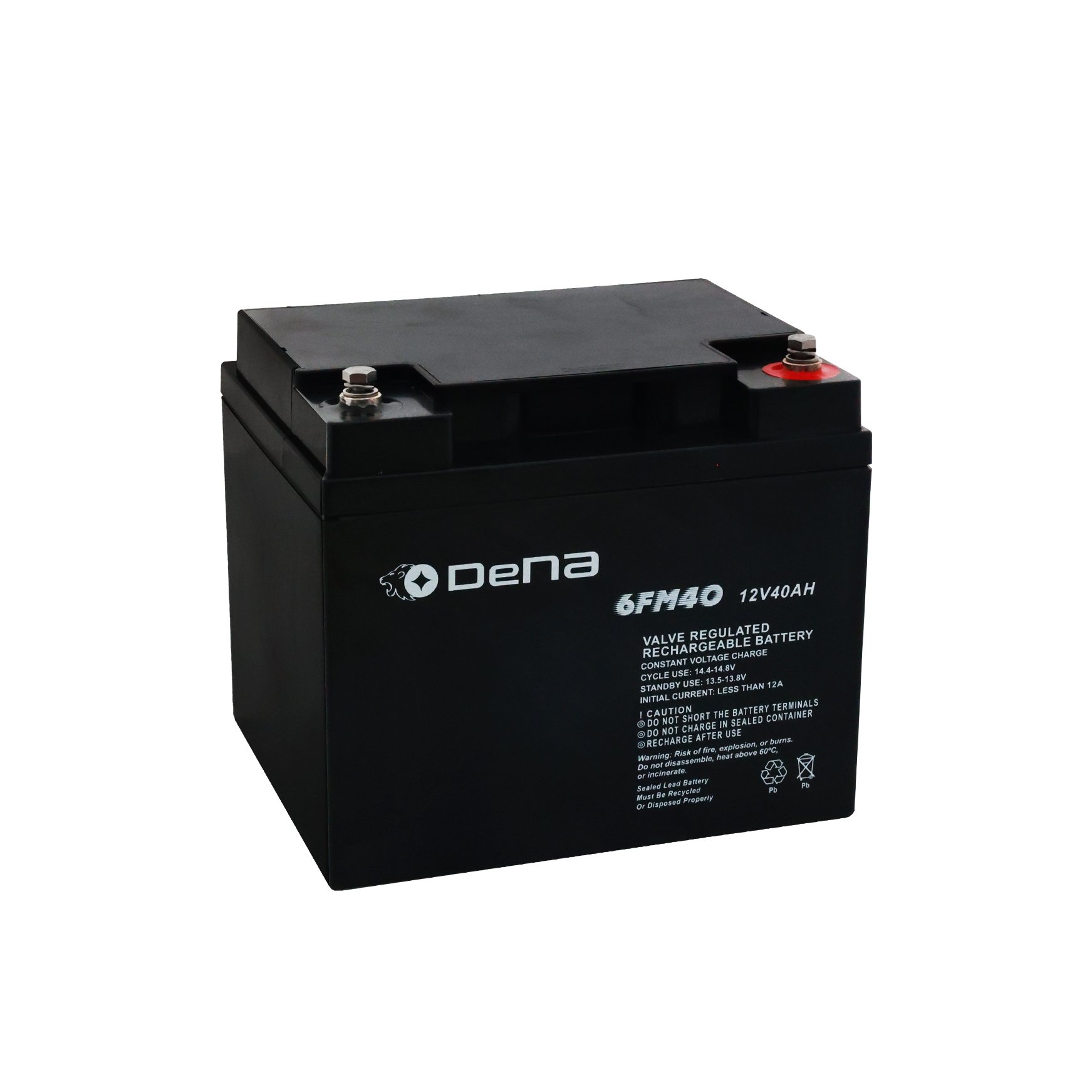

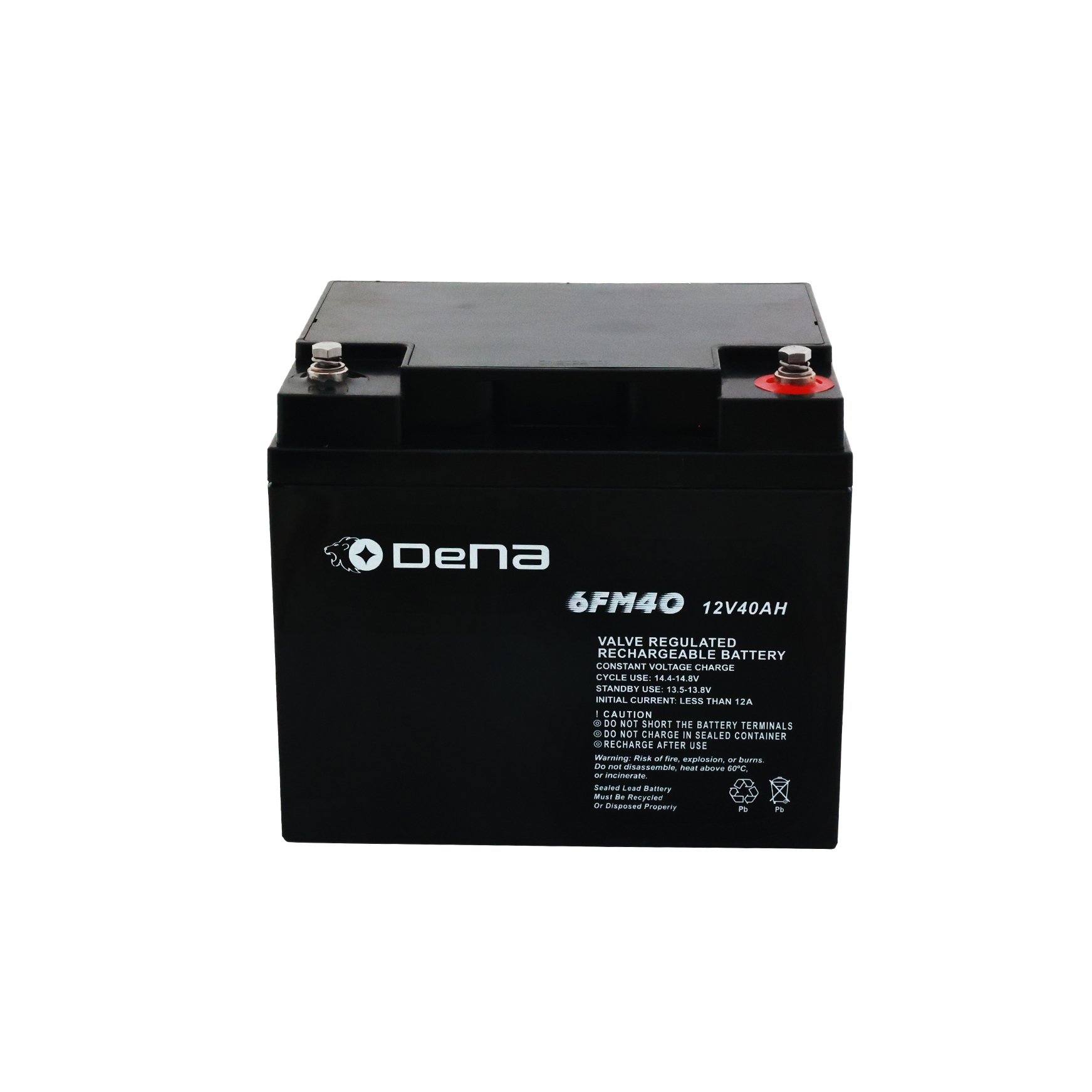

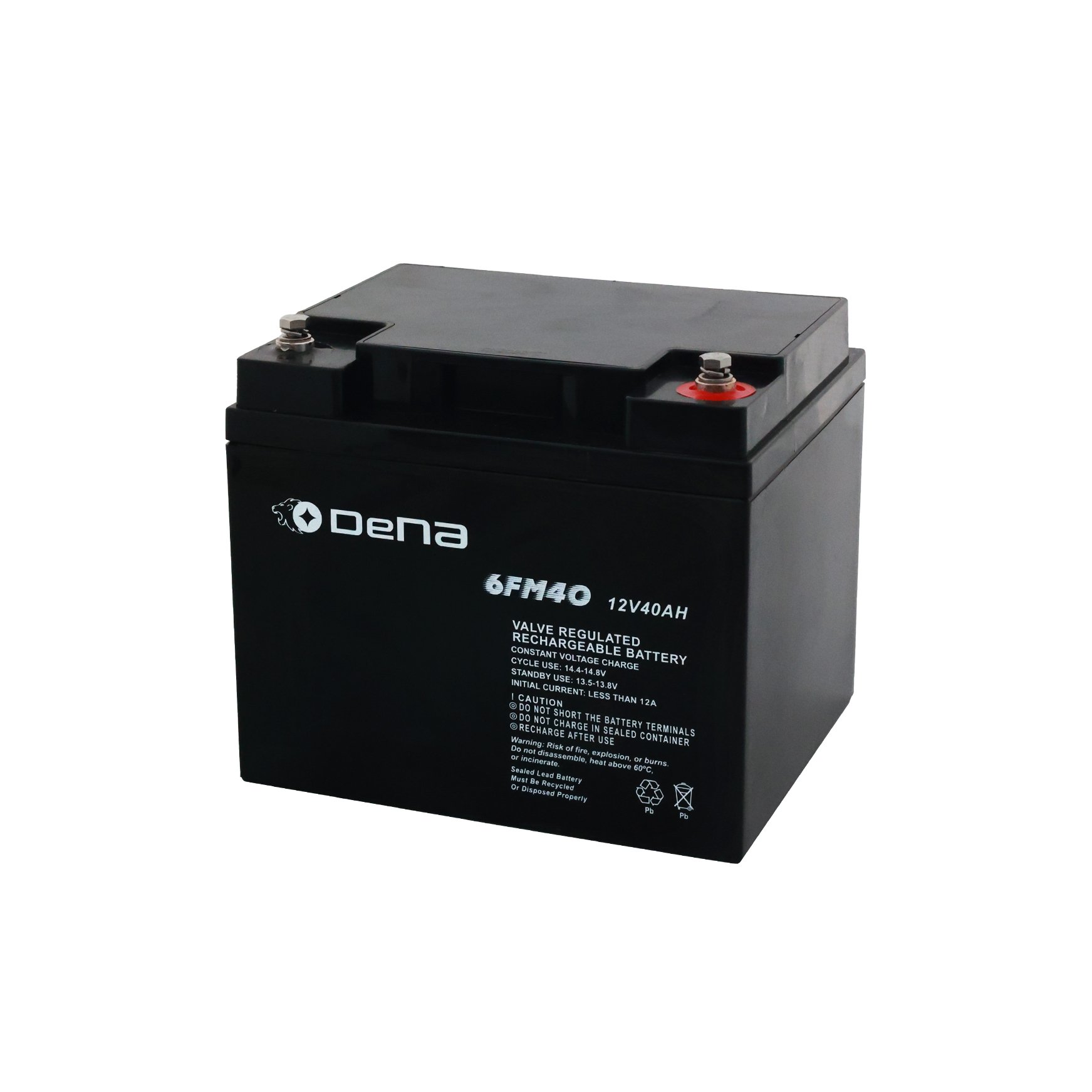

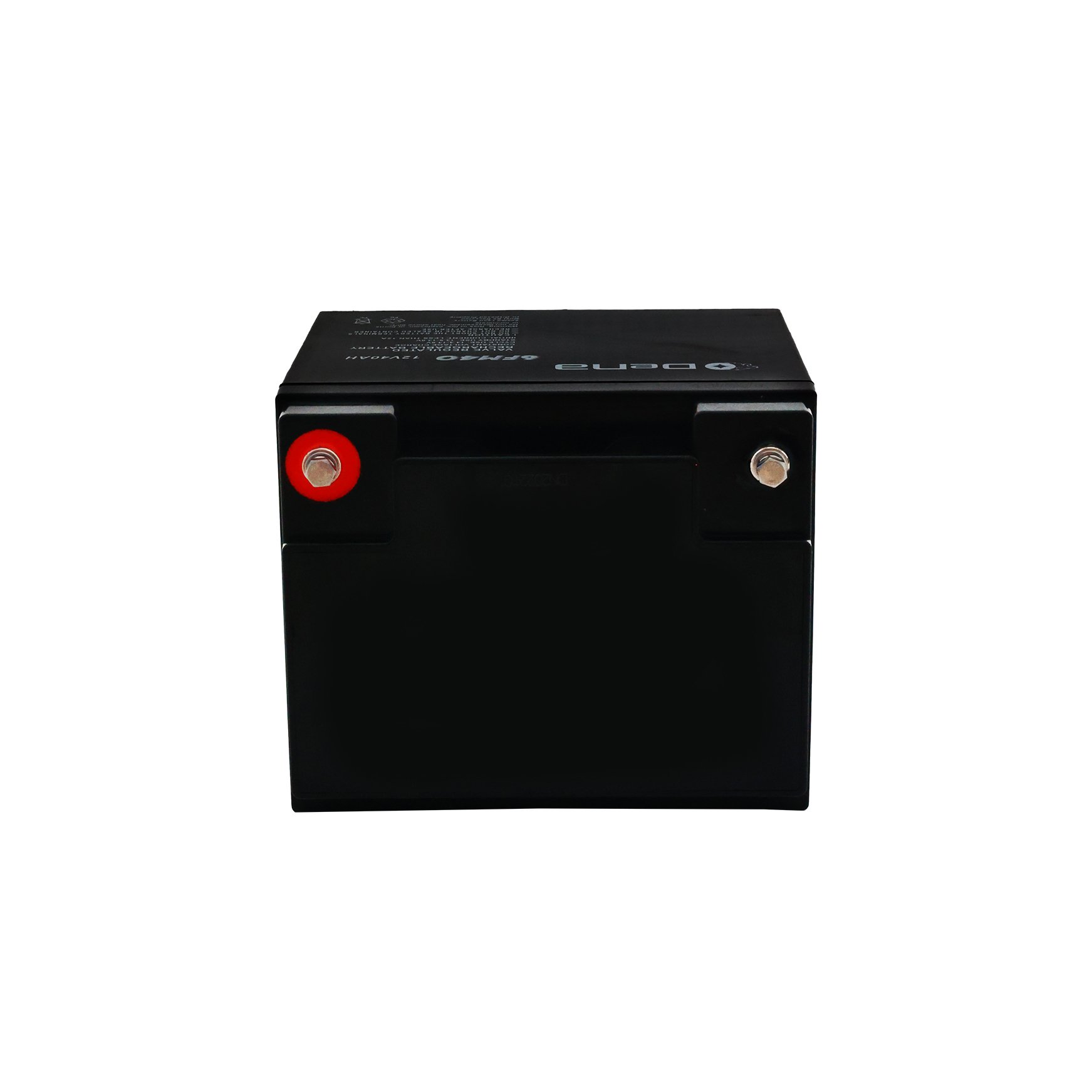

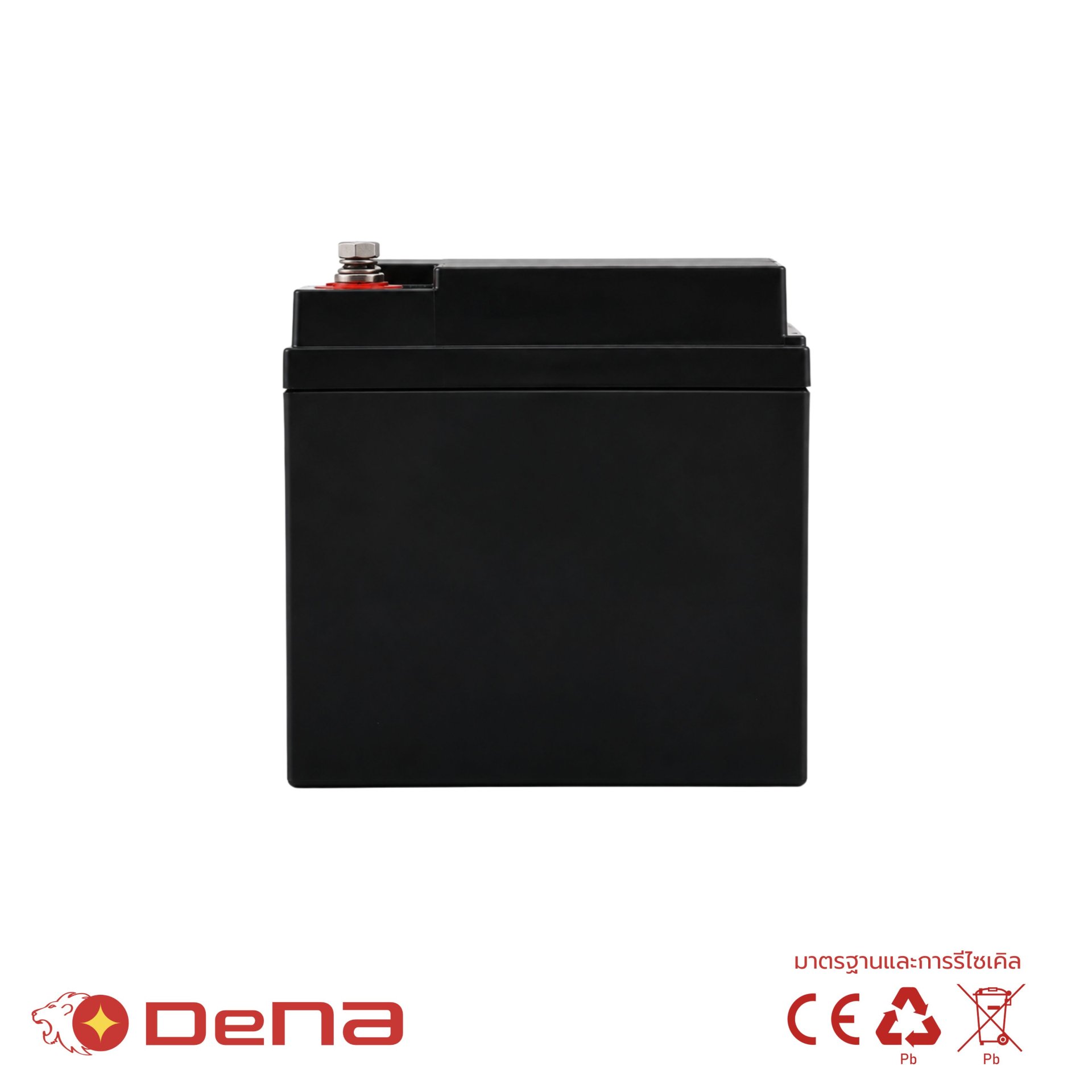

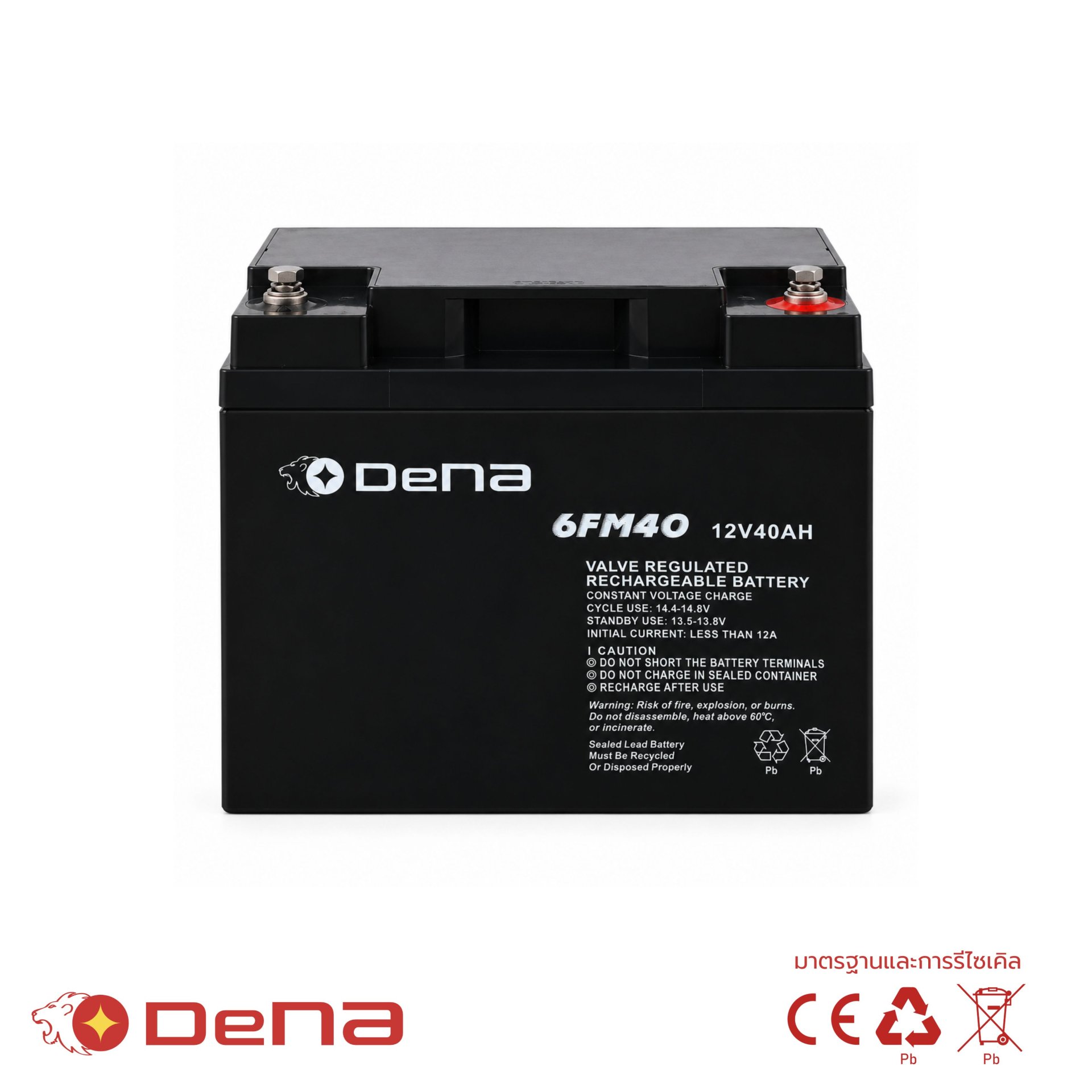

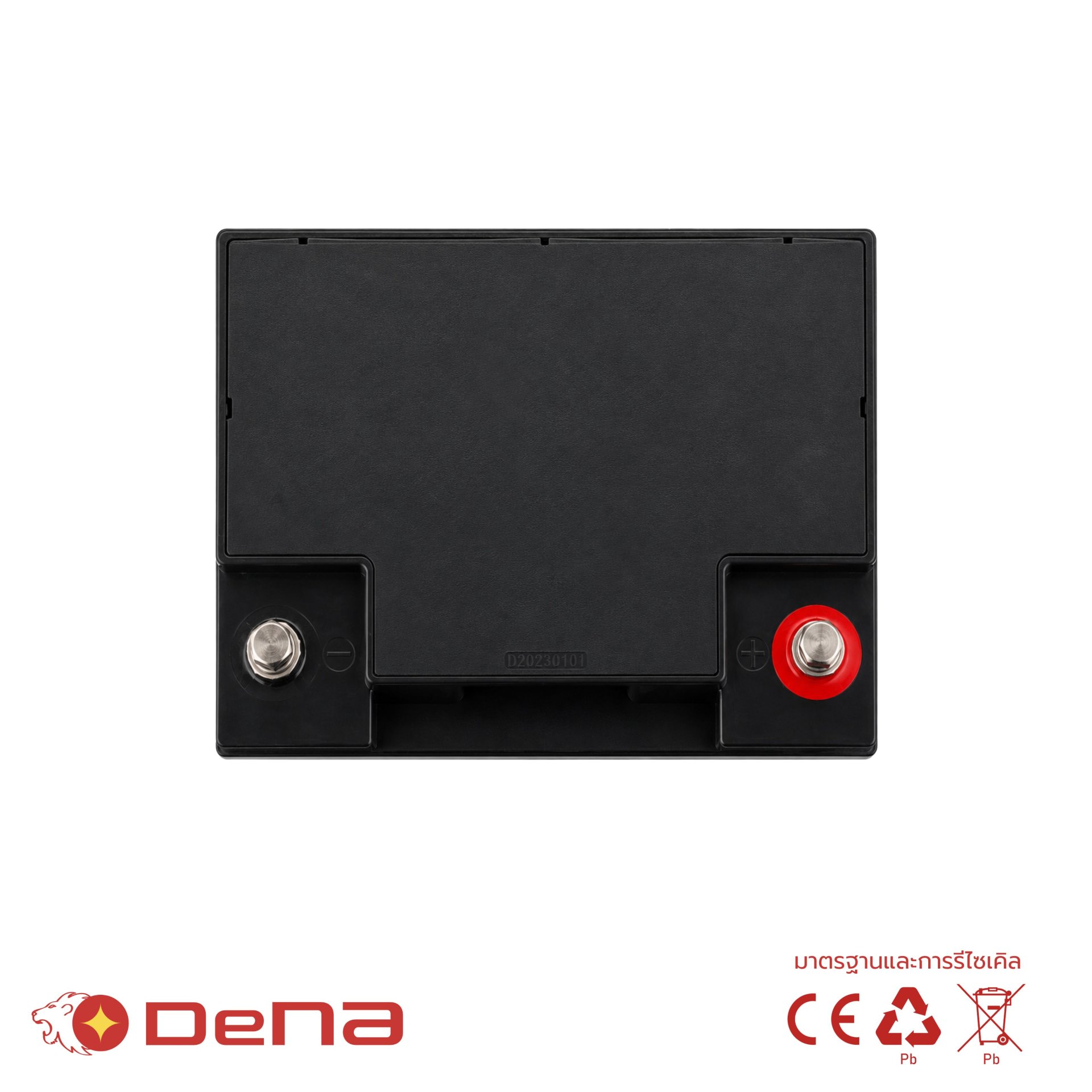

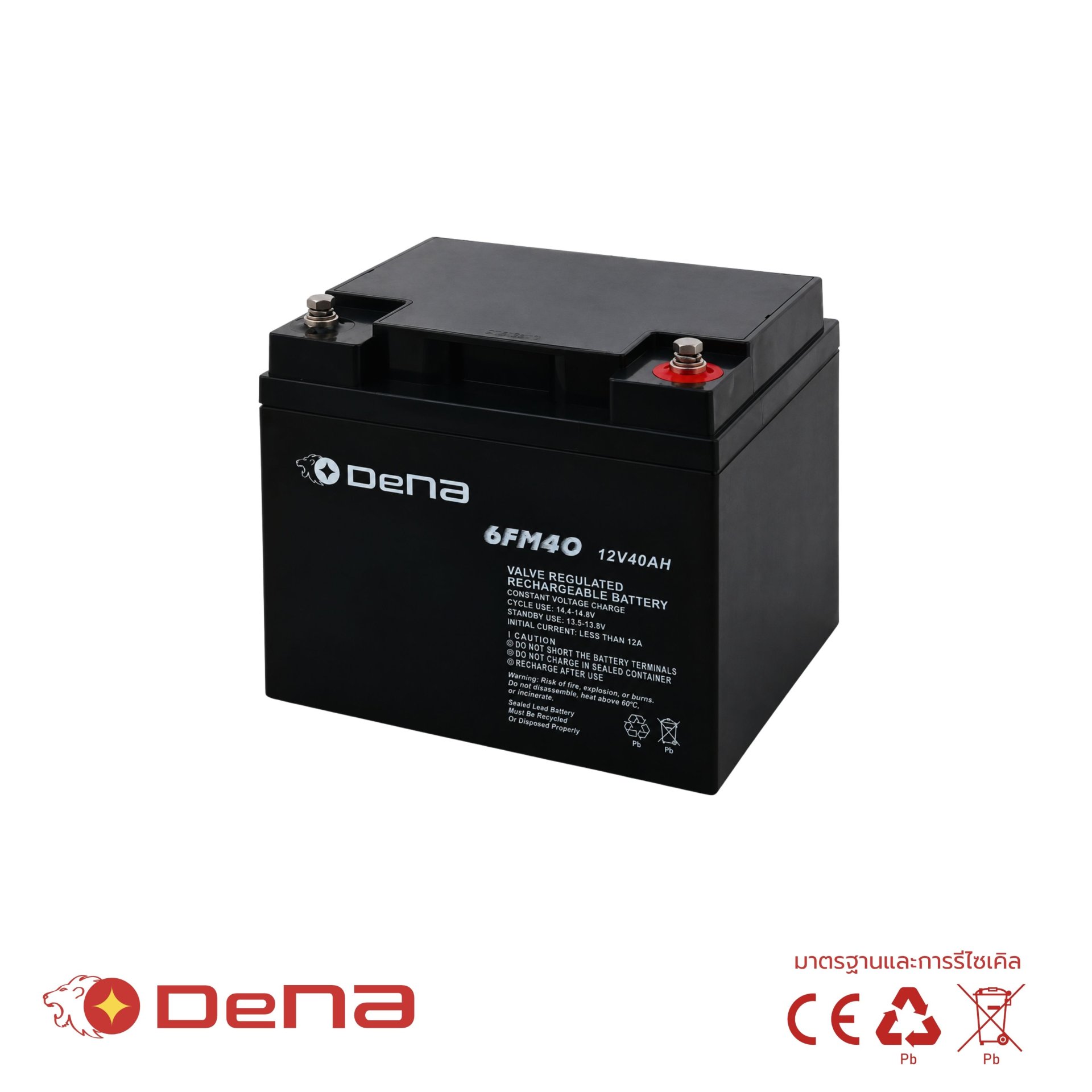

DeNA 6FM40
Attribute:

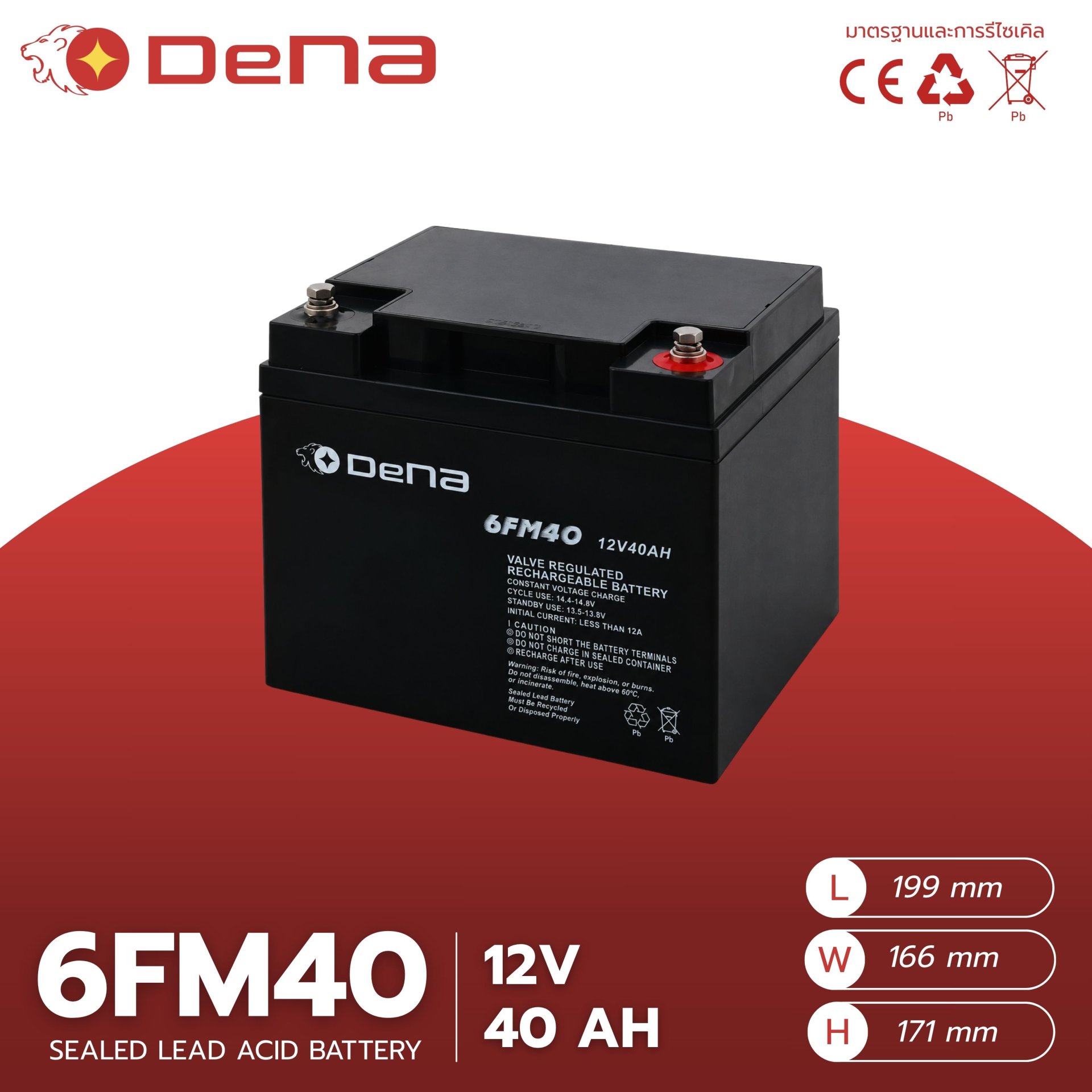

Voltage (V) : 12 Capacity 20hr (Ah): 40 Dimensions : 199 x 166 x 171 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 3-5 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (2A, 10.5V) 10 hour rate (3.8A, 10.5V) 5 hour rate (6.8A, 10.2V) 1 hour rate (40A, 9.6V) | 40Ah 38Ah 34Ah 21.33Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | 8.5mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 480A(5s) |
| Short Circuit Current | 540A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8V 10.8A -30mV/°C 13.5-13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 199 / 7.83 166 / 6.54 171 / 6.73 171 / 6.73 12.6 / 27.7 |
