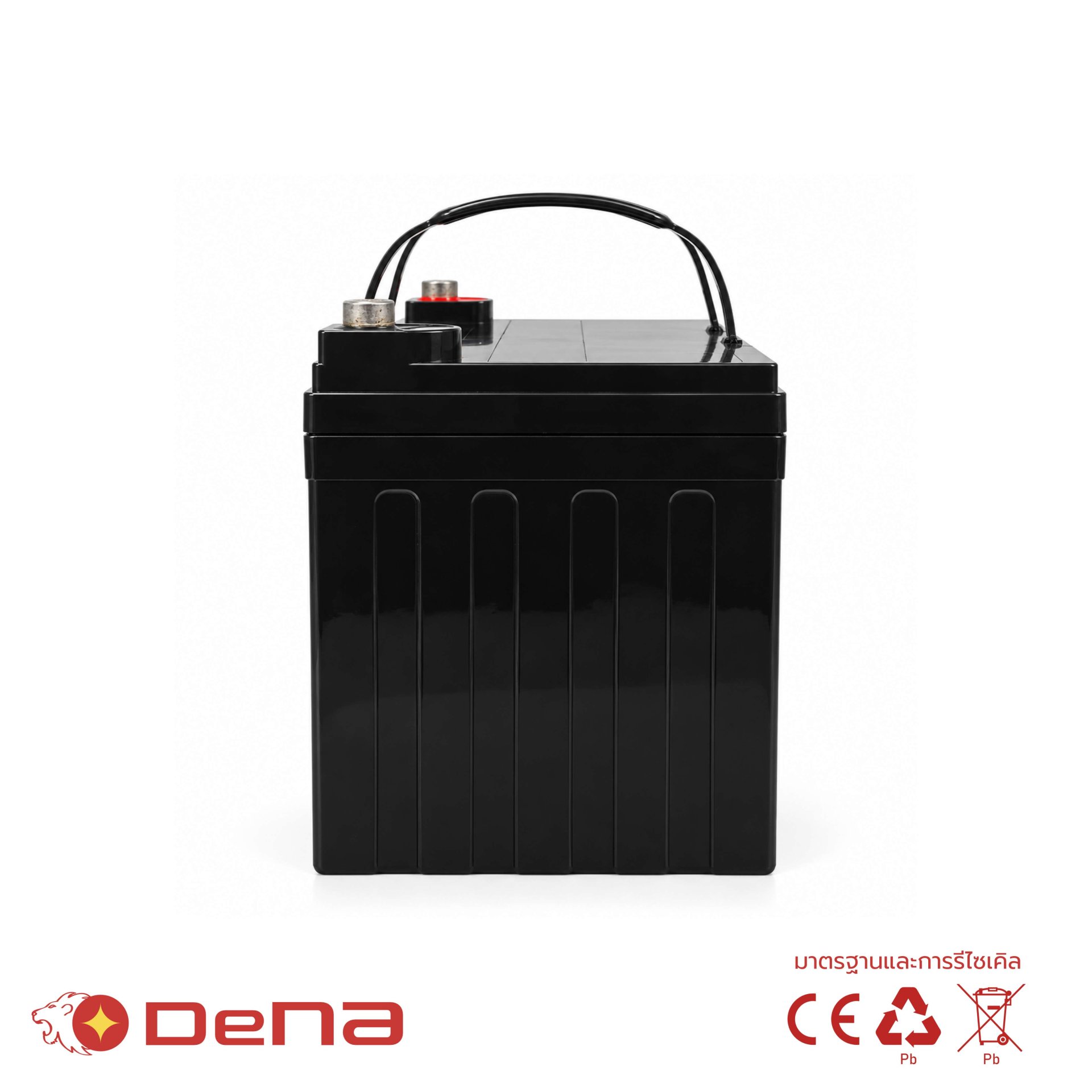

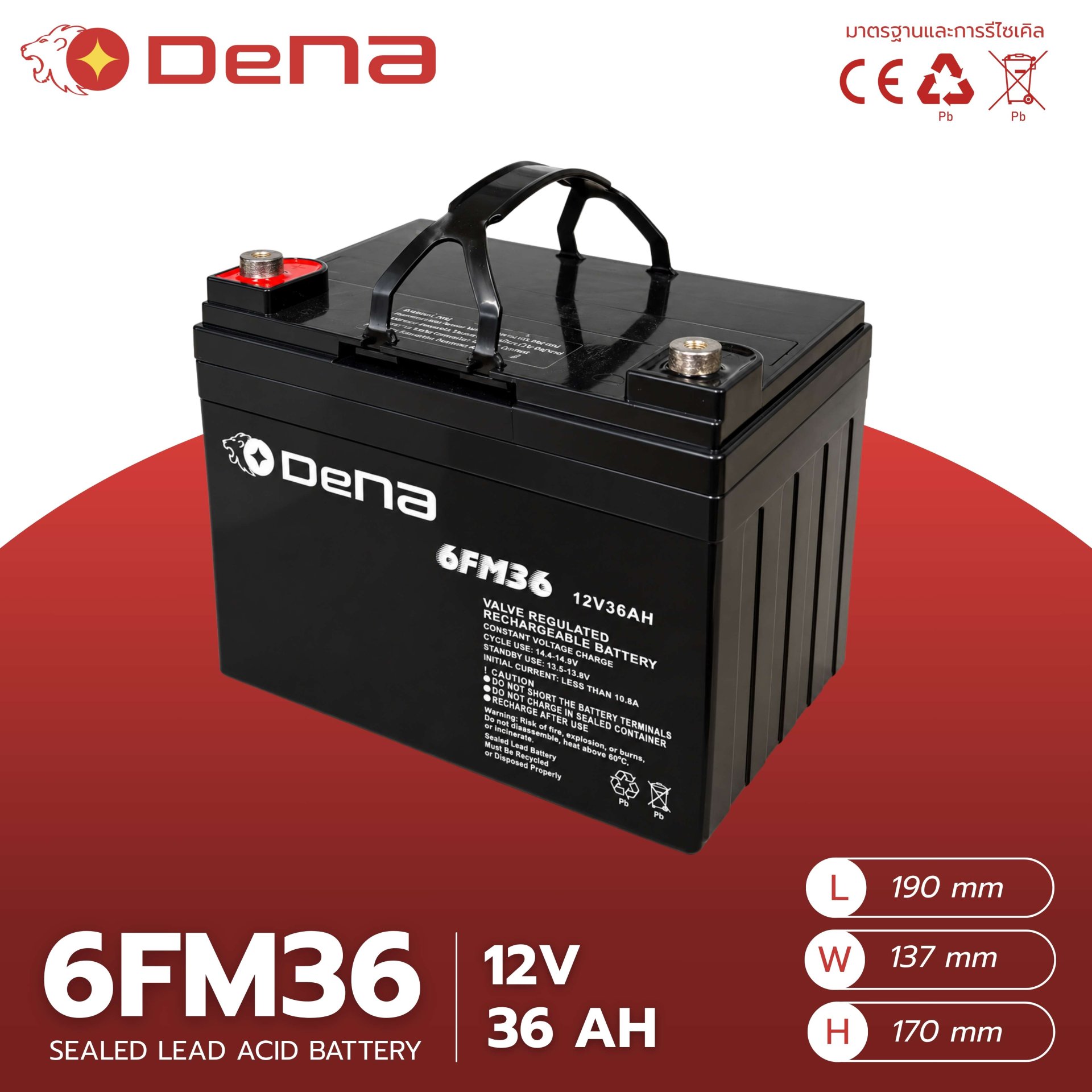

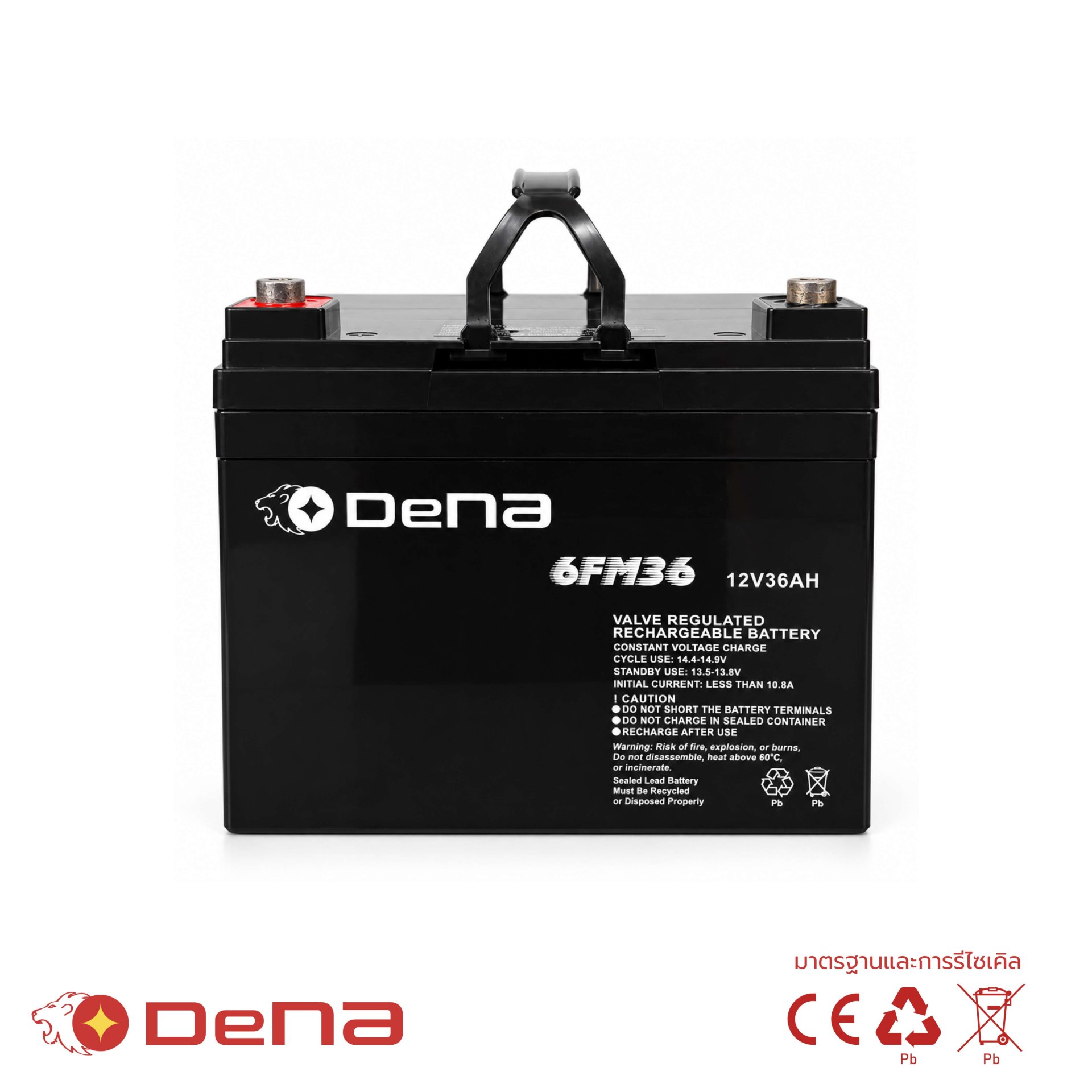

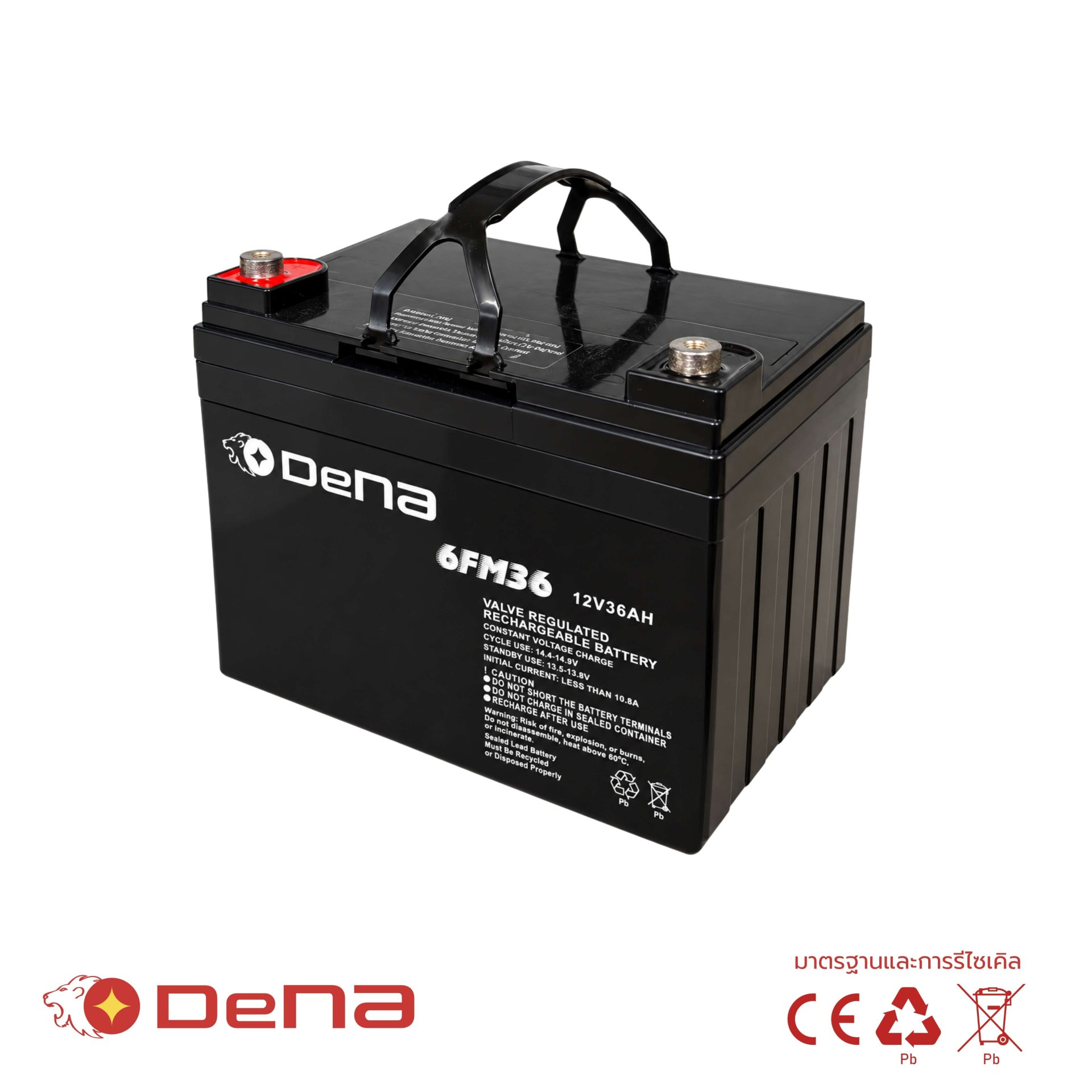

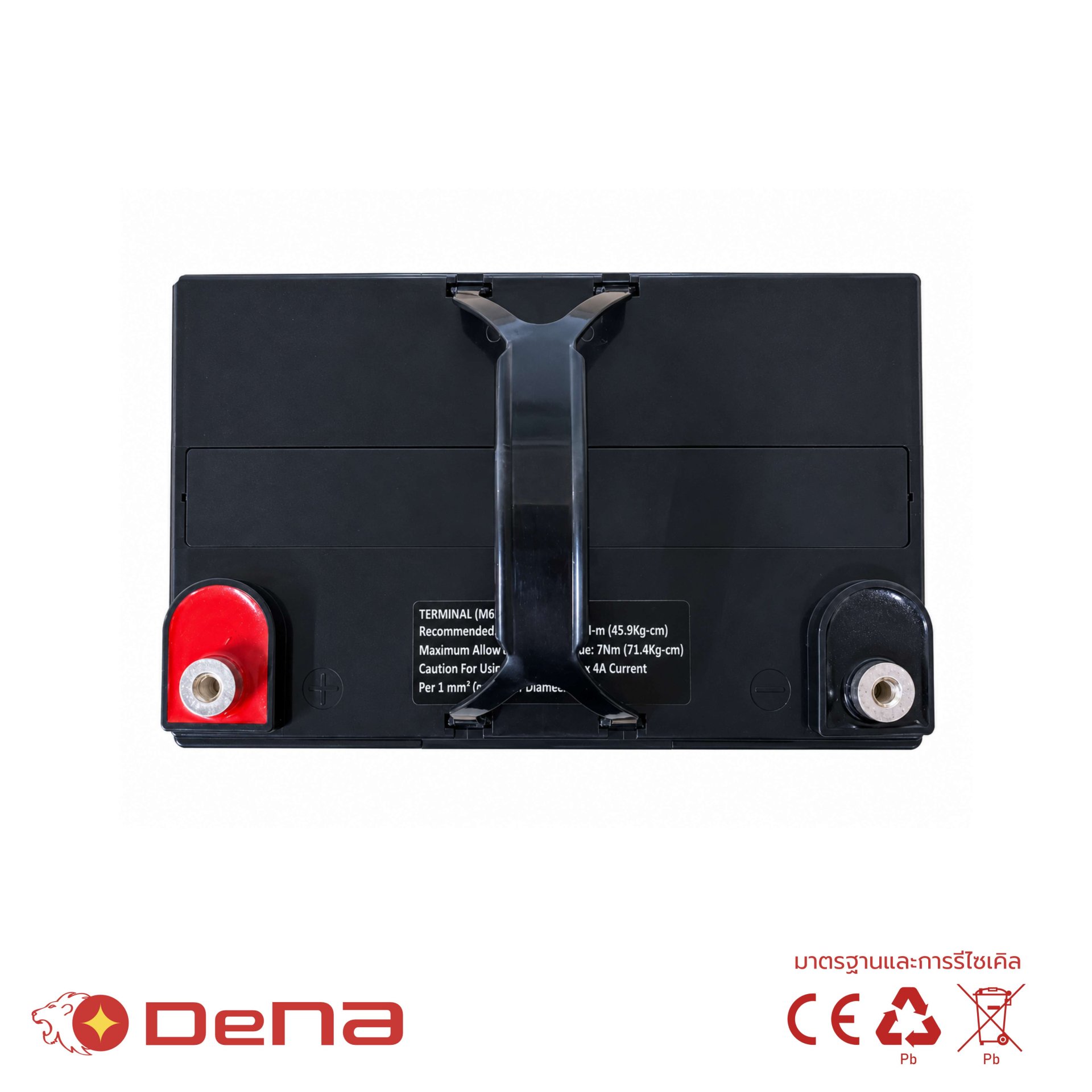

DeNA 6FM36
Attribute:
Voltage (V) : 12 Capacity 20hr (Ah): 36 Dimensions : 197 x 131 x 159 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 3-5 years |
| Nominal Capacity 77°F(25°C) 20 hour rate (1.8A, 10.5V) 10 hour rate (3.42A, 10.5V) 5 hour rate (6.12A, 10.2V) 1 hour rate (36A, 9.6V) | 36Ah 34.2Ah 30.6Ah 20.4Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | 8mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 960A(5s) |
| Short Circuit Current | 540A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8V 10.8A -30mV/°C 13.5-13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 197 / 7.76 131 / 5.16 159 / 6.26 170 / 6.69 10.7 / 23.54 |
