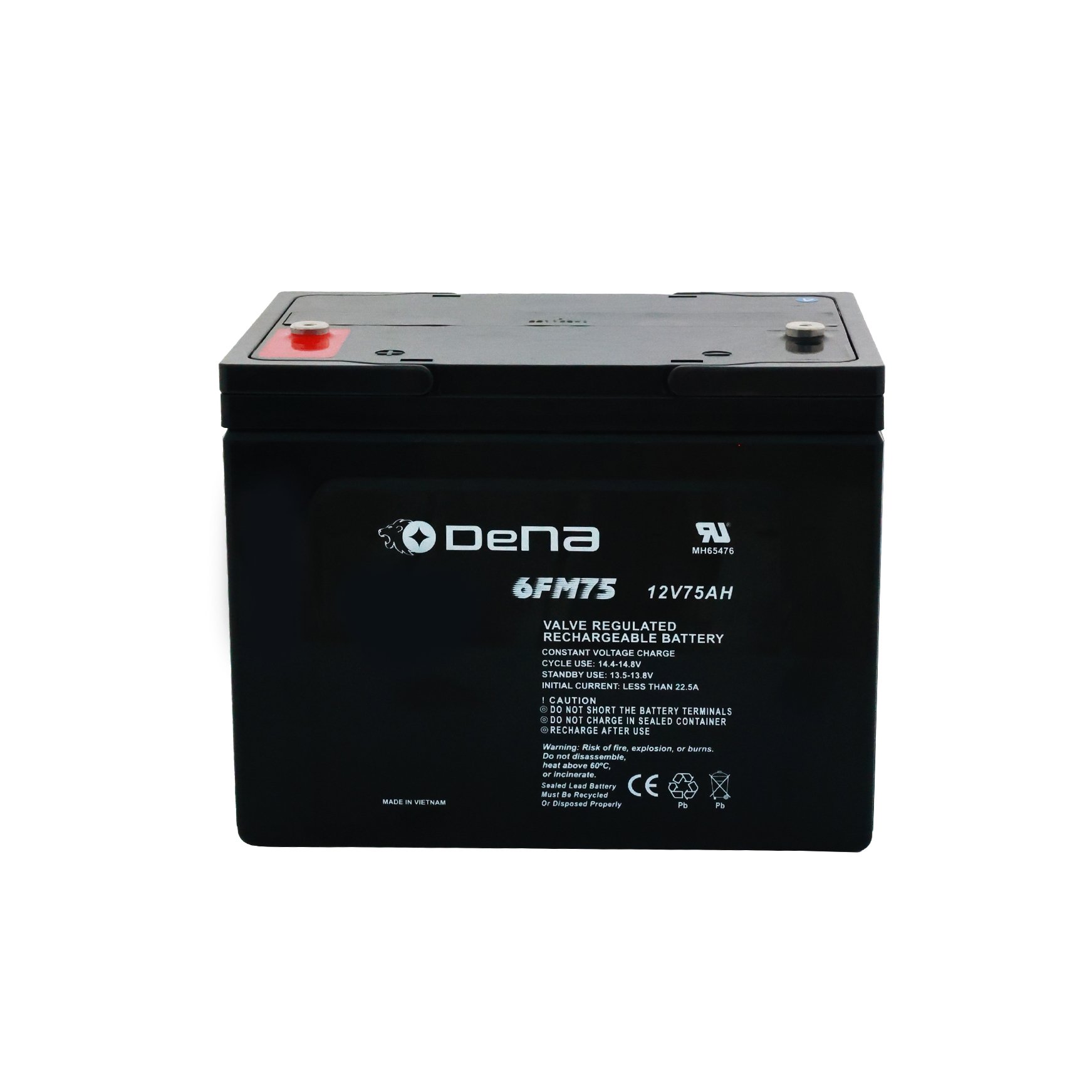

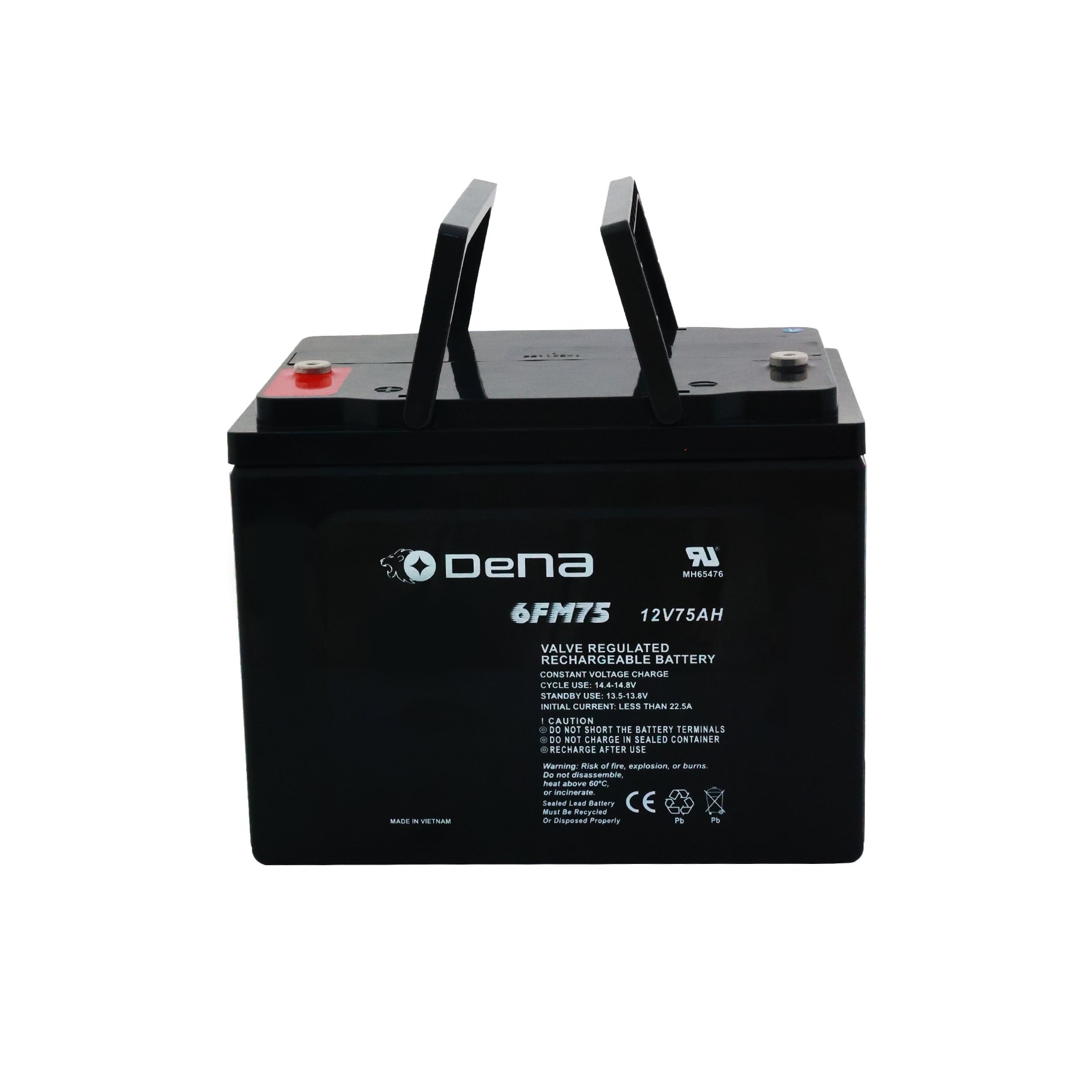

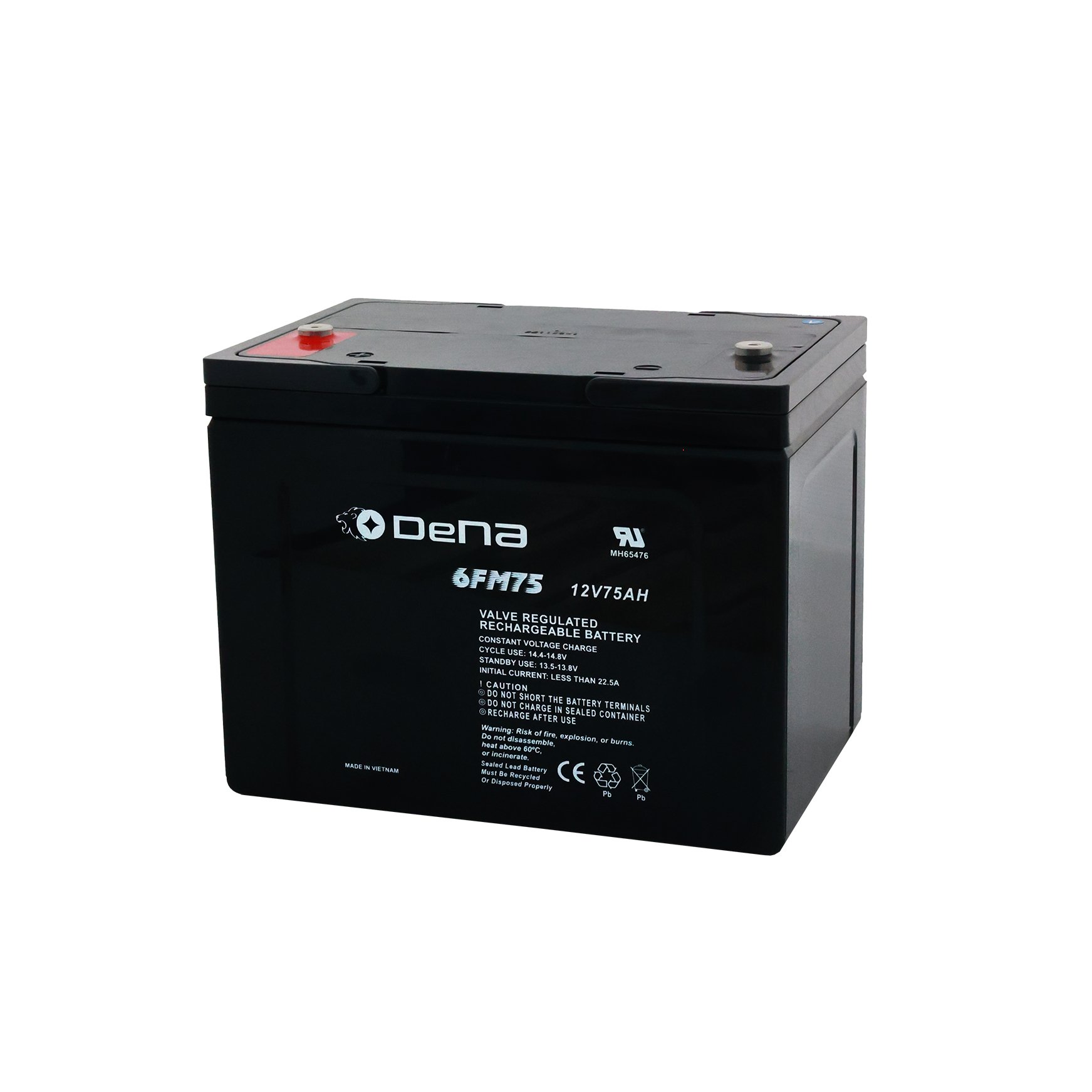

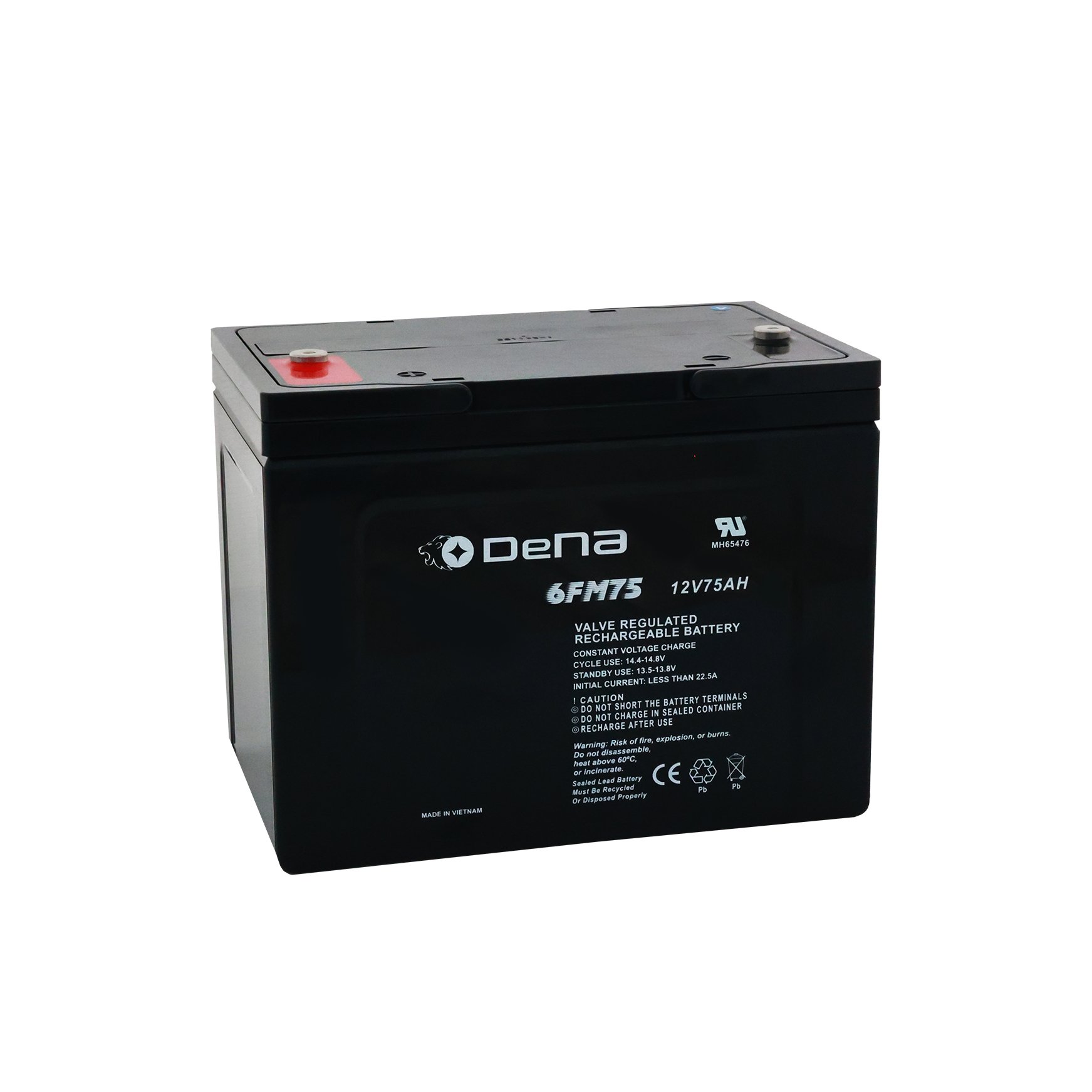

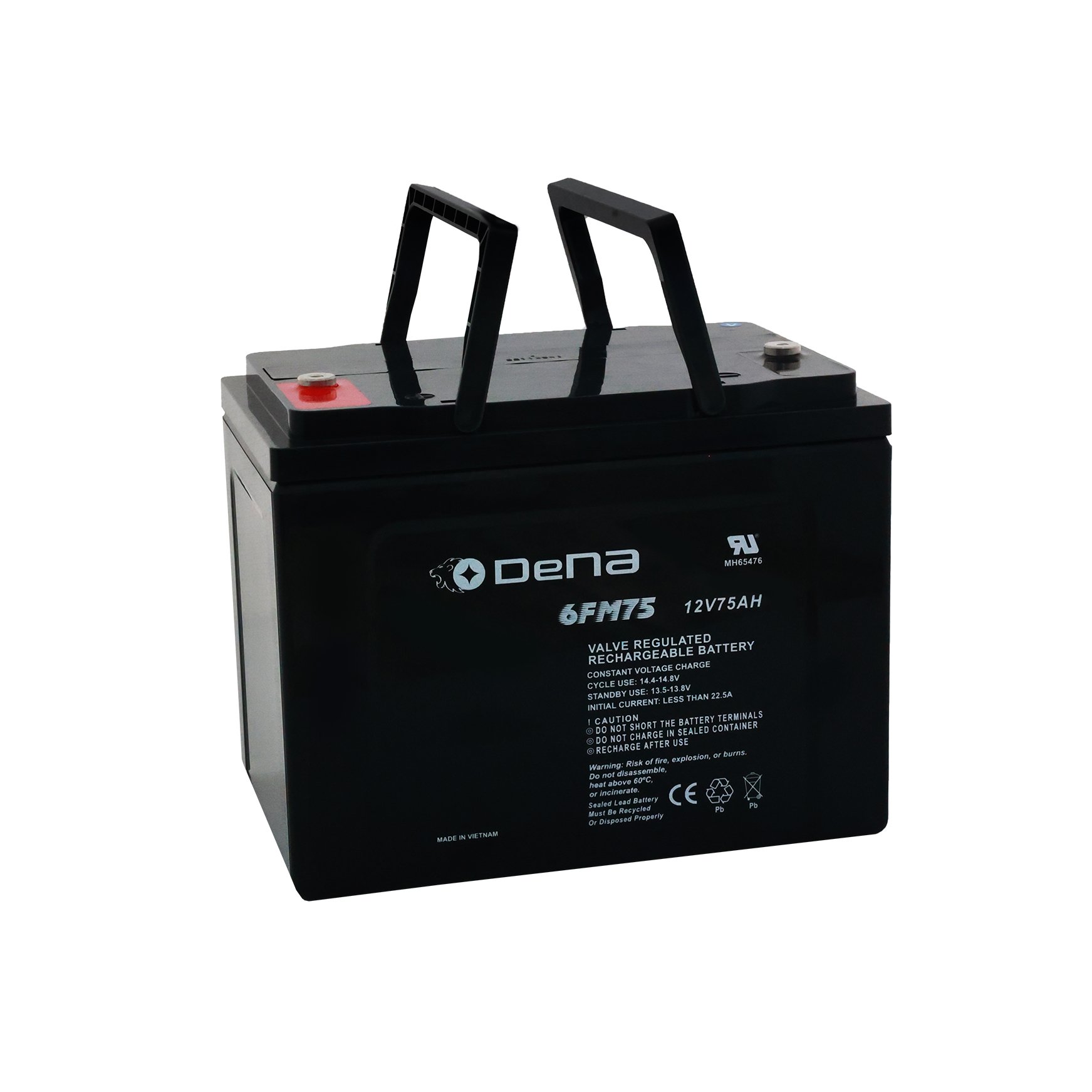

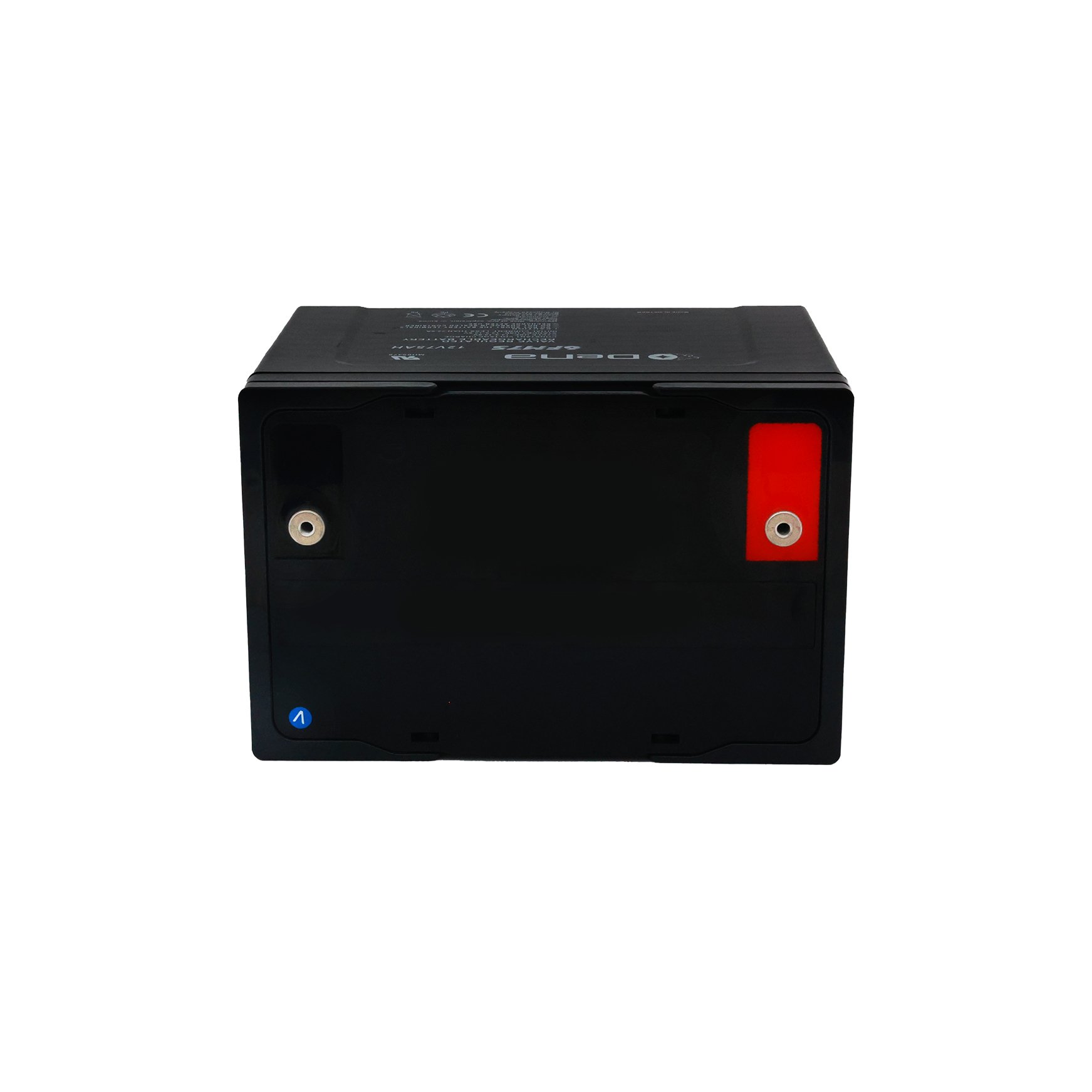

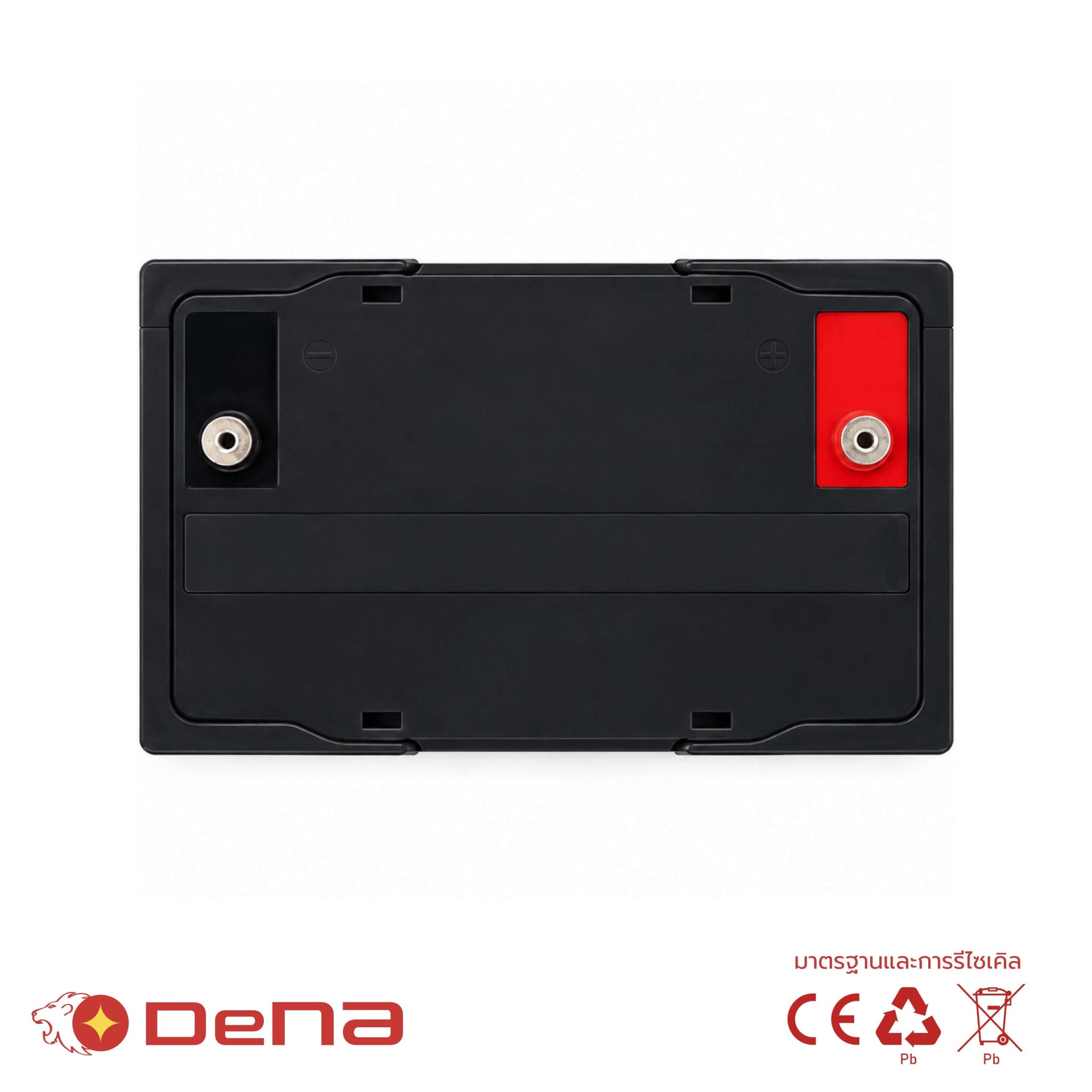

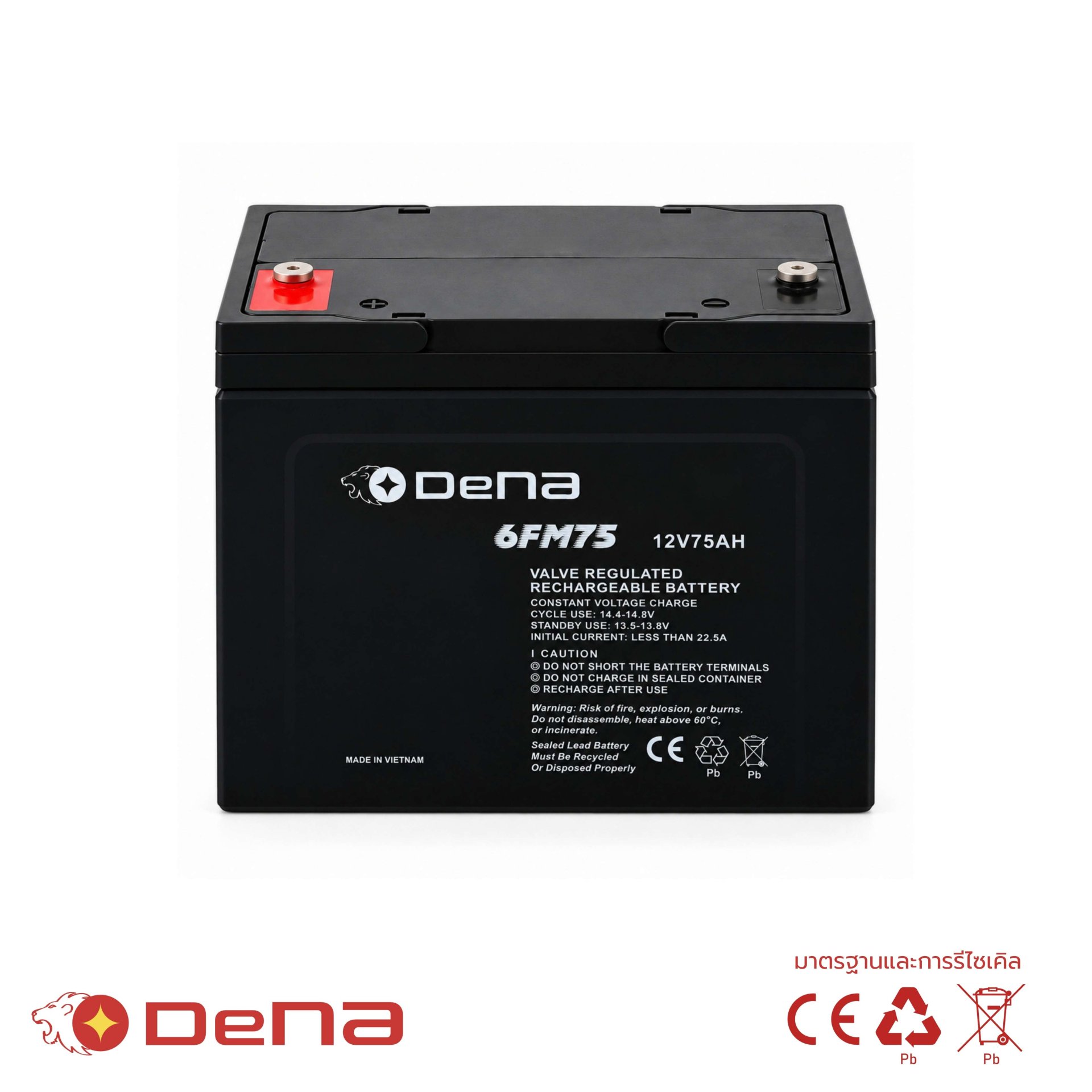

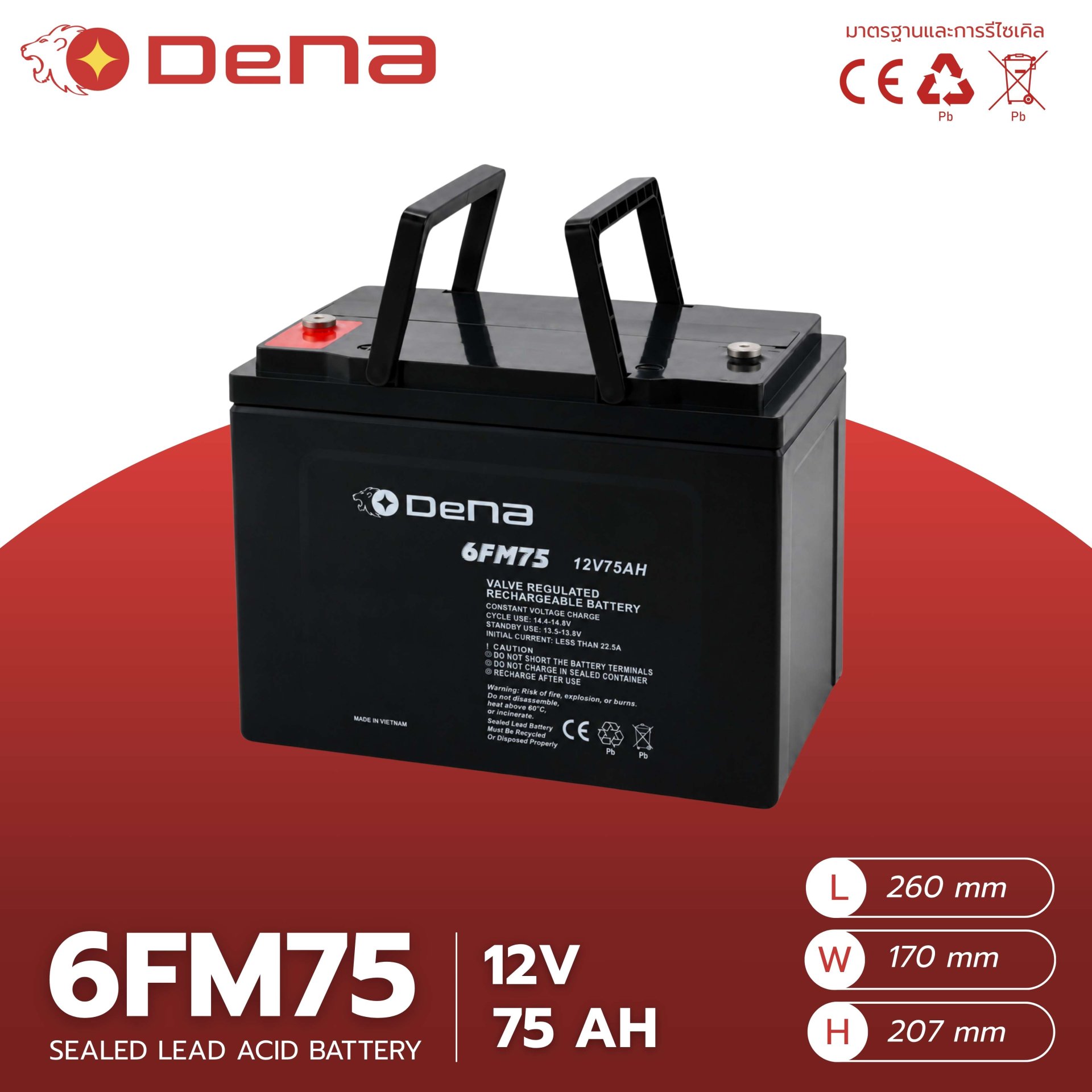

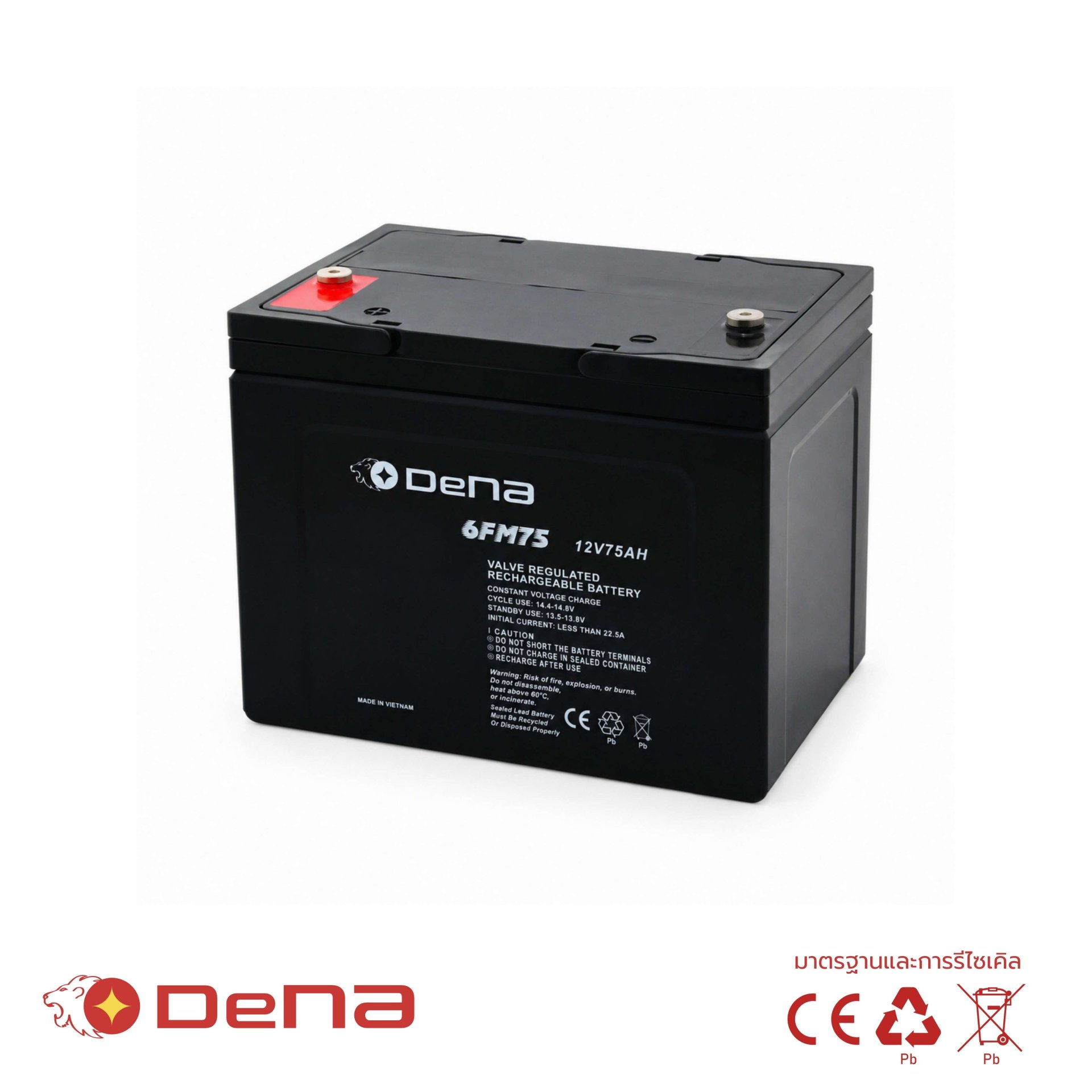

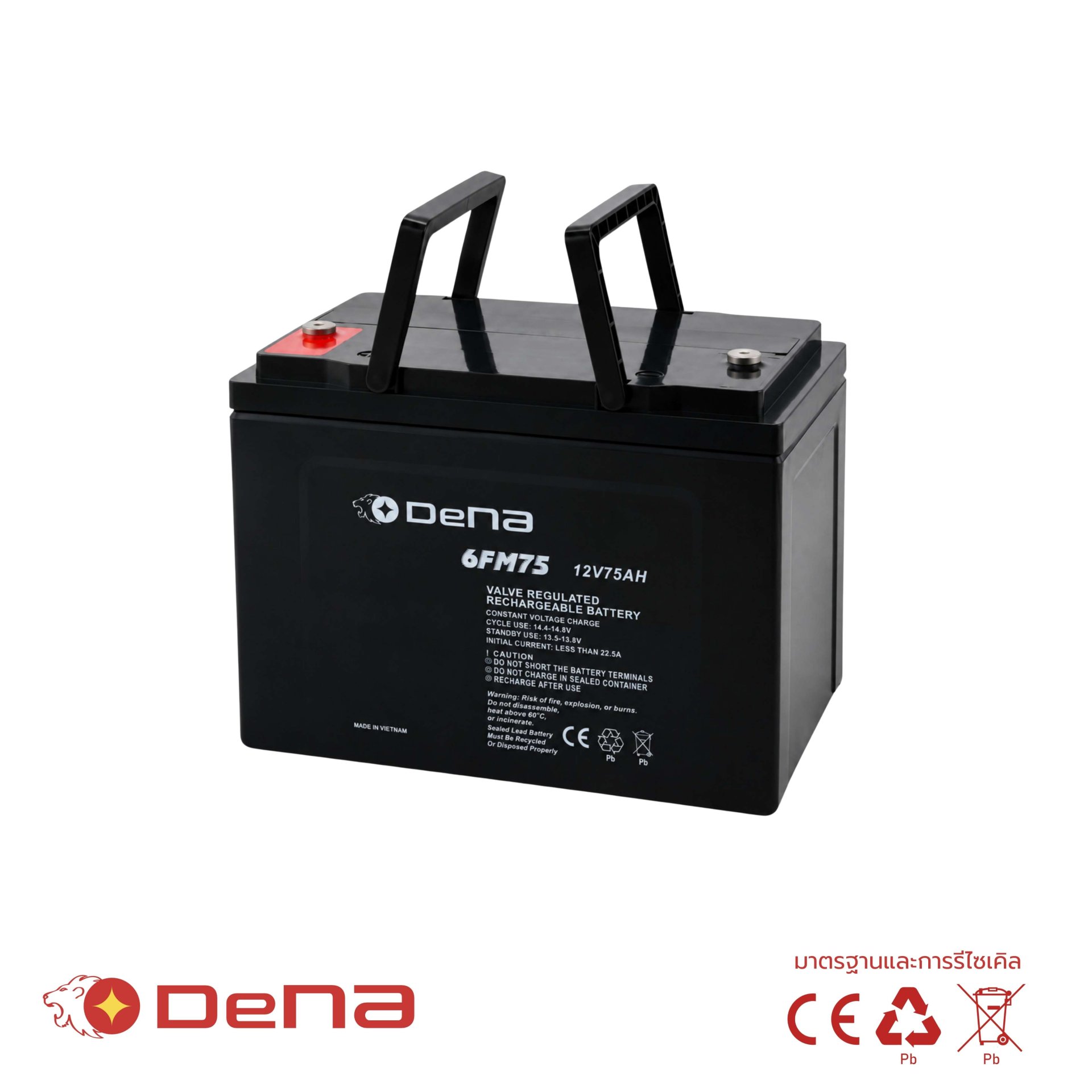

DeNA 6FM75
Attribute:
Voltage (V) : 12 Capacity 10hr (Ah): 75 Dimensions : 260 x 170 x 202 mm (L x W x H)
Categories : Battery - SEALED LEAD ACID , Battery by brand ,
Share
Specification
| Nominal Voltage | 12V |
| Number of cell | 6 |
| Design Life | 8-10 years |
| Nominal Capacity 77°F(25°C) 10 hour rate(7.5A, 10.8V) 5 hour rate(12.75A, 10.2V) 1 hour rate (45A, 9.6V) | 75Ah 63.75Ah 45Ah |
| Internal Resistance Fully Charged battery 77°F (25°C) | 5mOhms |
| Self-Discharge 3% of capacity declined per month at 25°C (average) | |
| Operating Temperature Range Discharge Charge Storage | -20~60°C -10~60°C -20~60°C |
| Max. Discharge Current 77°F (25°C) | 900A(5s) |
| Short Circuit Current | 1,800A |
| Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 14.4-14.8V 24A -30mV/°C 13.5-13.8V -20mV/°C |
| Dimensions and Weight Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 260 / 10.24 170 / 6.69 202 / 7.95 207 / 8.15 24.2 / 53.24 |
